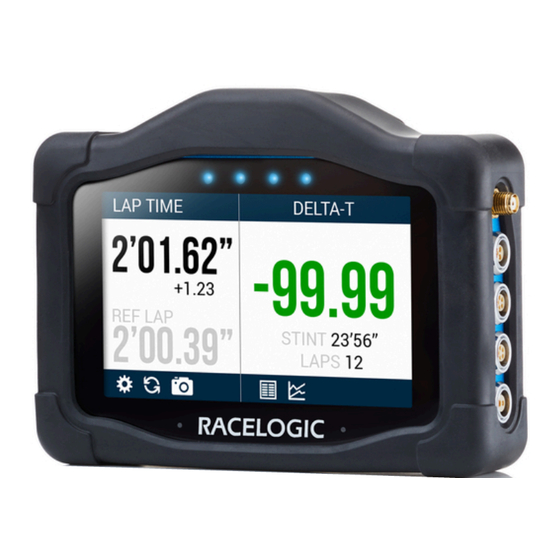

Racelogic VBTOUCHR-V1 Quick Start Manual

Vbox touch rtk: speed mode
Hide thumbs

Advertisement

Quick Links

Download this manual
Quick Start guide – VBOX Touch RTK: Speed Mode
Registration
Please register your VBOX Touch RTK so that
Racelogic can continue to provide you with notifications
about the latest software releases and firmware
upgrades for your Racelogic product, and offer technical
support.
Register your device here.
What is in the box?
When you purchase a VBOX Touch RTK (RLVBTOUCHR), you will find the following items when you open the box:
Product Code
VBTOUCHR-V1
MECH0298SD
RLCAB010LE
Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode
Quantity
1
1
1
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/
Description
VBOX Touch RTK unit
Rubber Overmould for VTS – Black
Cigar Plug Power Supply
(RLVBTOUCH, 2 m)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VBTOUCHR-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Racelogic VBTOUCHR-V1

Summary of Contents for Racelogic VBTOUCHR-V1

  • Page 1 Quick Start guide – VBOX Touch RTK: Speed Mode Registration Please register your VBOX Touch RTK so that Racelogic can continue to provide you with notifications about the latest software releases and firmware upgrades for your Racelogic product, and offer technical support.

  • Page 2: Optional Accessories

    If you are looking to purchase a new SD card, it is recommended that any card used has a write speed of above 7 MB/s (4 MB/s absolute minimum) and a speed class of 10 (4 absolute minimum). Racelogic recommends SD cards from quality brands such as Transcend, SanDisk, Kingston or Lexar to ensure the best results.
  • Page 3 The VBOX Touch RTK unit can be powered by the supplied RLCAB010LE cable connected to a vehicle's 12 V cigar power socket. On boot up, the VBOX Touch will display a splash screen and automatically look for satellites and media. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 4 Sometimes, due to poor satellite visibility in a garage or close to a building, the box may start recording, even if the car is stationary. Always check the Record Icon before ejecting the card. IMPORTANT Do not remove the SD card when the Record Icon is on as you may lose data. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 5 • Beidou Sats Used (VBOX Touch RTK only): Number of Beidou satellites in use if selected within the GNSS Selection area within the General Settings menu. • Galileo Sats Used (VBOX Touch RTK only): Number of Galileo satellites in use. You can find more information about the VBO file format here. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 6 Serial Output settings here. CAN/Serial (Bottom) The bottom CAN/Serial port can be used by VBOX Touch RTK units to receive RTK corrections via an NTRIP Modem or a Telemetry Radio Module with a Static Base Station. You can find more information https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 7 Connection to an NTRIP Modem Connect the RLCAB170 cable from the bottom Hirose connector on the NTRIP Modem to the bottom CAN/Serial port of the VBOX Touch. Ensure that the NTRIP Modem is correctly configured for use before connecting to the unit. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 8 Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 9 VBOX Touch RTK receives RTCM correction data from a telemetry radio module which acts as receiver for information transmitted by the Racelogic DGNSS Base Station. It is connected to the bottom CAN/Serial port of the VBOX Touch via an RLCAB005.

  • Page 10: Satellite Reception

    Mount the antenna as high up as possible and keep it above any roll bars. Pieces of metal close to and above an antenna will badly disrupt the GNSS signal. If the vehicle being used does not have a metal roof, then place the GNSS antenna on a flat piece of metal at least 10 https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...

  • Page 11: Gps Coldstart

    If VBOX Touch is struggling to acquire a satellite lock, a GPS coldstart may be required. This may be necessary when the unit hasn’t been used for several days or has dramatically moved location since its last use. To perform a coldstart, press the COLDSTART button within the Diagnostics Settings menu. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 12 The LEDs provide a live reference Lap Timing Mode lap speed comparison (Delta-V). The current lap is > 5 km/h quicker than the reference lap The current lap is 2.5 km/h quicker than the reference lap https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 13 If a Target Speed LED Alert has Speed Mode been set, the LEDs will flash green when the value is reached. If a screenshot has been saved Screenshot successfully, the LEDs will illuminate yellow in sequence from left to right https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 14 VBOX Touch has 4 display modes; Accel, Decel, Lap Timing and Speed. The display modes allow you to conduct a range of performance tests and functions. You can change the display mode by pressing the Mode button at the bottom of the screen. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 15 • Custom test so you can define your own configurable settings. • The screen displays time, run number, distance, Peak G and altitude difference. You can easily change the units of measurement for speed and distance (metric or imperial). https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 16 • VBOX Touch also works as a highly accurate digital speedometer, a handy feature for street driving. • You can set the units to kph or mph and the display can show live speed, VMAX, average speed and distance as well as a target speed. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...

  • Page 17: Screen Overview

    2. Insert the SD card into the Side of the Unit. The SD Card Icon should display as green as long as the card has free space. 3. When the unit has booted, select the Mode Button and press SPEED if it is not already selected. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 18 5. If you would like to set a Target Speed which will display on the screen and give an audible and/or visual alert when the speed is met, select the Settings Button, then the Speed option and enter the required value within the Settings. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 19 If you have come to a stop, but the Record Icon is still on, press the SD Card Icon to stop the logging before removing the card. Sometimes, due to poor satellite visibility in a garage or close to a building, the box may start recording, even if the car is stationary. Always check the Record Icon before ejecting the card. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
  • Page 20 14. To reset all results shown on the current screen, press the Reset Button. You can find more information on the Speed Mode here. Further User Instructions You can find the complete user guide, including the settings and RTK-specific information here. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_RTK/Quick_Start_guide_%E2%80%93_VBOX_Touch_RTK%3A__Speed_Mode...
