3.1 Power Distribution Units
3.1.1 DCDB48-200-16B and Power Subracks

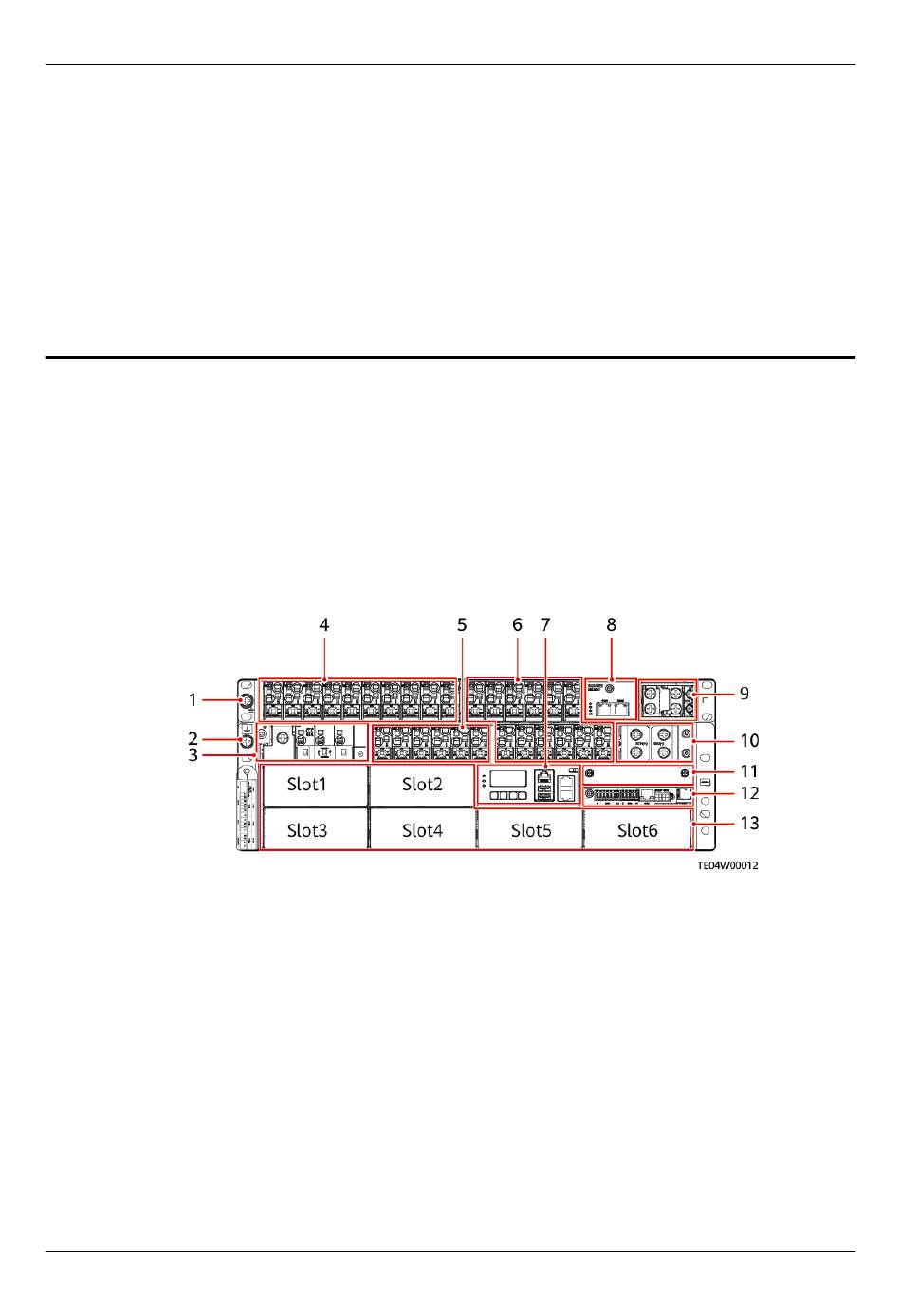

Figure 3-1 DCDB48-200-16B and power subrack (01074838)
(1) DCDB48-200-16B ground
screw
(4) LLVD2 distribution
(7) SMU02C
(10) Battery wiring port
(13) Space for rectifiers
Issue 06 (2021-10-13)
(2) Power subrack ground
screw
(5) LLVD1 distribution
(8) DMU02C1
(11) Space for the
communications expansion
module
Copyright © Huawei Technologies Co., Ltd.
3
Components
(3) AC input module
(6) BLVD distribution
(9) DCDB48-200-16B power
input ports
(12) UIM05B1
3 Components
