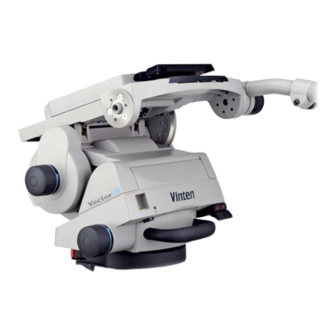

Vinten Vector 70 Maintenance Manual

Pan and tilt head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Contents
Next
Previous
Page
View
Vector 70/70H
Vinten
Camera Control Solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vector 70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vinten Vector 70

Summary of Contents for Vinten Vector 70

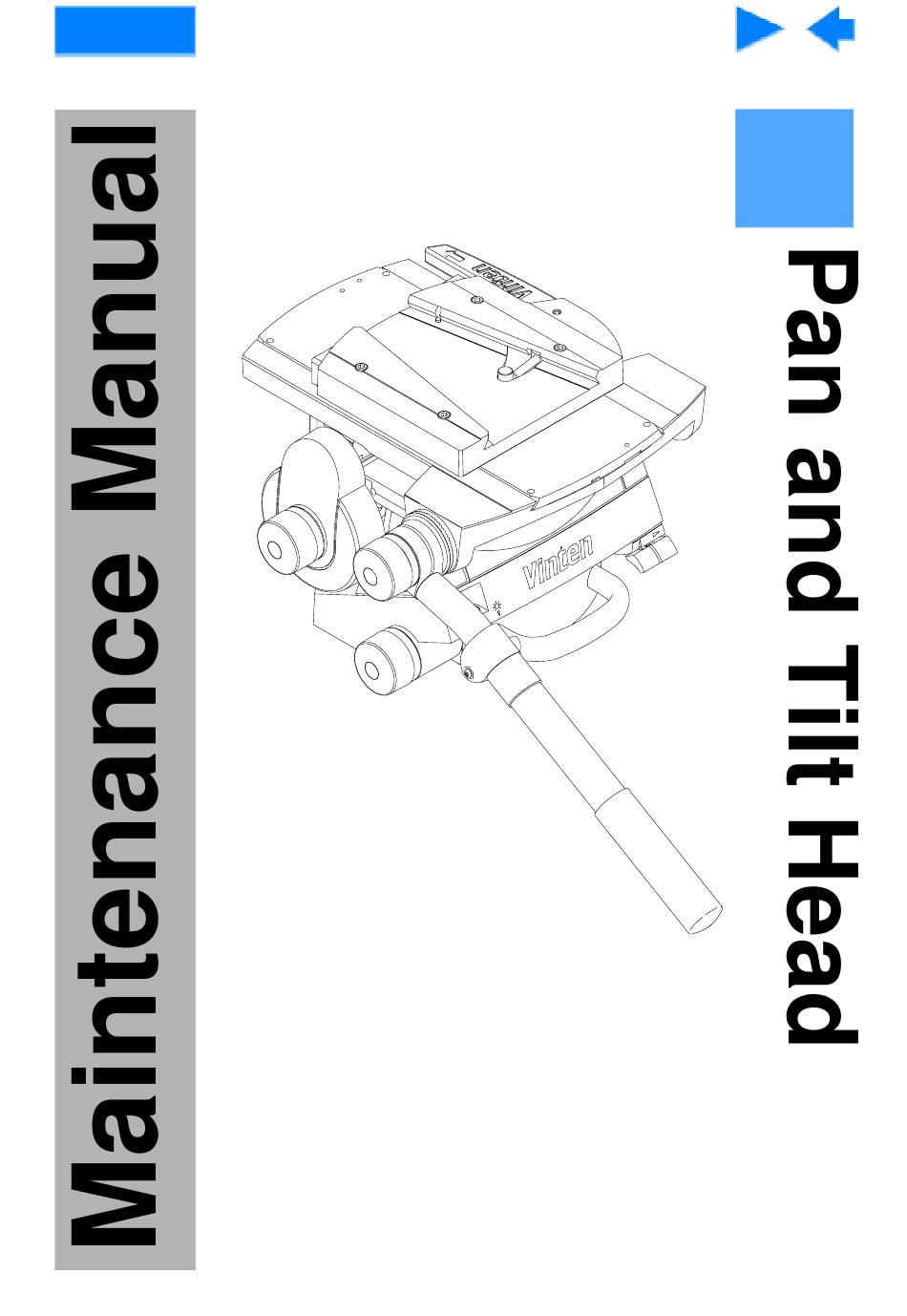

  • Page 1 Contents Next Previous Page View Vector 70/70H Vinten Camera Control Solutions...

  • Page 2: Pan And Tilt Head

    Vinten Broadcast Limited. Vinten, Vision and Quickfit are registered trademarks of Vinten Broadcast Limited.
  • Page 3 Particular attention must be paid to cleaning, especially after use in adverse conditions. To order spare parts or to obtain further information, application should be made to Vinten Broadcast Limited or to your local distributor.

  • Page 4: Notes To Readers

    Page Page View Notes to readers This is the on-line version of ‘Vector 70/70H Pan and Tilt Head Maintenance Manual’ (3354-9). Readers should be aware that the pagination differs between on-line and printed versions. Navigation Clicking the mouse on any blue text will move you around the document.

  • Page 5: Safety - Read This First

    Contents First Previous Next Previous Page Page Page View Safety - Read This First! Warning symbols in this maintenance manual Where there is a risk of personal injury, injury to others, or damage to the pan and tilt head or associated equipment, comments appear, highlighted by the word WARNING! and supported by the warning triangle symbol.
  • Page 6 First Previous Next Previous Page Page Page View Contents Page Foreword ................3 Notes to readers .
  • Page 7 Contents First Previous Next Previous Page Page Page View Abbreviations The following abbreviations are used in this publication: alternating current pound (weight) Amps Lubricated Friction across flats left hand as required MISO metric thread ASME American Society of Mech Engineers metre assy assembly...

  • Page 8: Technical Specification

    Vector 70 ........

  • Page 9: Design Improvements

    Contents First Previous Next Previous Page Page Page View Design Improvements SERIAL No. DETAILS INFORMATION Improved pan bar fixing Improvements to balance mechanism Base modified to accept longer fixing bolts 1145 Tilt drag actuator links strengthened 1239 Redesigned base casting 1780 Changes to pan drag actuator 3051...

  • Page 10: Introduction And Description

    The unique counterbalance system enables payloads with centre of gravity (C of G) heights from 80 mm (3 in.) to 200 mm (8 in.) for Vector 70 and 80 mm (3 in.) to 250 mm (10 in.) for Vector 70H to be maintained in perfect balance over the tilt movement range of ±...
  • Page 11 Contents First Previous Next Previous Page Page Page View (18) (17) (16) V70_LEFT (15) (14) (13) (12) (11) (10) V70_RIGHT Fig 1.1 Vector 70/70H Pan and Tilt Head...
  • Page 12 Contents First Previous Next Previous Page Page Page View A level bubble is fitted to the rear of the head and is provided with a time-delay illumination unit, operated by a switch (6). Pan bar mounting points (14) are located at the rear of the head, on either side of the camera mounting platform.

  • Page 13: Installation

    ..............17 Introduction This section includes instructions for mounting the Vector 70 pan and tilt head, fitting and balancing a camera and operating the head. Refer to Fig 1.1...

  • Page 14: Mounting The Head

    17). Mounting the head NOTE: When mounted on Vinten ‘Hawk’ or ‘Teal’ pedestals, clearance between the head and the pedestal weight tray prevents the use of 5.5 lb (1.6 kg) and 1.0 lb (0.47 kg) trim weights. Use alternative weights or fit the adaptor plate kit (Part No. 3354-900SP) between the head and pedestal.

  • Page 15: Fitting A Camera

    - up to 70 kg (154 lb) with C of G height from 80 mm (3 in.) to 200mm (8 in.) for Vector 70 or 80 mm (3 in.) to 250 mm (10 in.) for Vector 70H.

  • Page 16: Operation

    Contents First Previous Next Previous Page Page Page View 11.2 Turn the tilt drag adjustment knob (18) to its minimum setting. WARNING!: If the balance control is set to minimum, a heavy out-of-balance payload will cause the platform to tip violently when the centre lock is disengaged. Increase the C of G height setting (see below) prior to balancing a heavy payload.

  • Page 17: Pan And Tilt Brakes

    Contents First Previous Next Previous Page Page Page View Pan and tilt brakes The pan and tilt brakes are operated by levers (2)(3) at the rear of the head. They are applied by pulling the appropriate lever up and back and released by pushing the lever forwards. The brakes should be applied whenever the camera is left unattended.

  • Page 18: Tools And Materials

    Loctite 641 Z002-074 Bearing installation Grease, Castrol LM Z150-122 General lubrication Grease, Easyrun 50 Z150-081 Balance adjuster and balance mechanism bearings Grease, Chesterton Z150-105 Brake levers Vinten Fluid No. 3 3051-25 Drag housings Loctite 406 Z002-086 Adhesive Permabond Z-002-073 Adhesive (70H)
  • Page 19 Section 5 of this manual, or the unit may be returned to Vinten Broadcasting limited or your local dealer for repair.
  • Page 20 Contents First Previous Next Previous Page Page Page View Cleaning balance mechanism track The balance mechanism tracks are automatically cleaned by built-in wipers, but after use in particularly adverse conditions the tracks may require cleaning. Some dismantling of the head is necessary and it is recommended that this be carried out in clean workshop conditions.
  • Page 21 Contents First Previous Next Previous Page Page Page View (11) V70VTRAX (10) V70HTRAX Fig 4.1 Cleaning Balance Mechanism Tracks...

  • Page 22: Level Bubble Illumination Unit Battery Replacement

    Refit the battery cover plate (4), ensuring battery locates in cover plate. Secure with three screws (1). Press the switch and ensure the lamp is lit for approximately 15 seconds. V70_BATT BATTERY TYPE: 9V,6LR61 (PP3, 6AM6, MN1604, E-BLOCK) Vinten Part No. C550-023 Fig 4.2 Level Bubble Illumination Unit Battery Replacement...

  • Page 23: Platform Slide Clamp Adjustment

    Contents First Previous Next Previous Page Page Page View Adjustments After considerable use the platform slide clamp or pan and tilt brakes may require adjustment. Platform slide clamp adjustment The platform slide clamp should be set so that, in the up or clamped position it prevents the platform slide from being moved, while in the down or released position it allows free adjustment of the slide.

  • Page 24: Pan And Tilt Brake Adjustment

    Contents First Previous Next Previous Page Page Page View Pan and tilt brake adjustment Following bedding-in, the pan and tilt brakes may require adjustment. The pan and tilt brakes should be set so that the brakes begin to be applied after approximately one-third of the lever travel (Fig 4.4).

  • Page 25: Repositioning The Wedge Adaptor

    Contents First Previous Next Previous Page Page Page View 14.3 On the underside of the head, remove three screws securing cover plate (3). 14.4 Operate the pan brake lever from the OFF to the ON position. 14.5 If brake pressure is not felt after approximately one-third of the lever travel, turn the locating pin clockwise until this is achieved.
  • Page 26 Contents First Previous Next Previous Page Page Page View 16.2 Hold the body of the wedge adaptor and use a 4 mm hexagon wrench to remove four securing screws (1). 16.3 Reposition the wedge adaptor on the sliding plate (2), ensuring that the narrow end of the wedge adaptor faces forwards 16.4 Insert the four screws in the holes in the wedge adaptor and tighten.
  • Page 27 ..............13 Balance adjuster assembly (Vector 70) .

  • Page 28: Platform Assembly

    ............. . . 39 General This section details procedures for disassembly and assembly of the Vector 70/70H head. Reference is made in the procedures to figures in Section 6 - Illustrated Parts List.
  • Page 29 Contents First Previous Next Previous Page Page Page View To dismantle the platform assembly, proceed as follows (Fig 6.11): Remove two screws (21) securing tilt brake centre (20) and brake disc (tilt) assembly (19) to the platform (27). Pull out two Spirol pins (3). Release the sliding plate clamp (23).
  • Page 30 Contents First Previous Next Previous Page Page Page View Tilt brake/balance knob/centre lock Remove the balance knob and associated components as follows (Fig 6.10): Carefully prise out the knob bung (29) Remove screw (28) and washer (27). Pull off the balance knob (26) and remove drag knob boss (25).
  • Page 31 NOTE: An extended 3 mm AF spherical-ended hex wrench (Vinten Part No. 3354-931TL) is required to remove the tilt drag mechanism. The tilt drag mechanism contains Vinten fluid No. 3. A good supply of clean rags should be to hand.

  • Page 32: Balance Mechanism

    Contents First Previous Next Previous Page Page Page View Balance mechanism To remove/dismantle the balance mechanism, proceed as follows: 13.1 Remove the platform (Para 3), spring-loaded flap (Para 5), tilt brake/balance knob/centre lock (Para 7) and tilt drag mechanism (Para 11).
  • Page 33 13.13 Pull the adjuster assembly (13) and two shims (12) out of the mechanism housing. Recover bevel pinion (41) if not already removed. NOTE: An extended 4 mm AF spherical-ended hex wrench (Vinten Part No. 3354-931TL) is required to remove the support caps.
  • Page 34 Contents First Previous Next Previous Page Page Page View 10). Note orientation of roller axles. Separate track wiper mouldings (3) and track wiper outers (4) if required. 14.6 Drive out lift-off stop pin (16) if required. 14.7 Pull out the bearings (6) if required. Balance adjuster assembly (Vector 70H) NOTE: The balance adjuster was improved at Serial No.
  • Page 35 17.6 To dismantle the pan drag/brake mechanism, proceed as follows (Fig 6.4): NOTE: The drum enclosure contains Vinten fluid No. 3. A good supply of clean rags should be to hand. 17.7 Remove screw (2), bonded seal (3) and three screws (39) from lid/rivet bush assembly (1). Install two M4 screws in threaded holes in lid to assist in removal of lid/rivet bush assembly.
  • Page 36 Contents First Previous Next Previous Page Page Page View 17.10 Remove screw (28) from coupling seal disc (33) to release coupling (29). Remove and discard ‘O’ ring (30) from coupling. 17.11 Remove friction shoe assemblies (7) from drag plate subassembly (16). Remove locknut (36) from adjuster shaft (37) and unscrew shaft to free trunnions (5,6) 17.12 If required, remove two pivot pins (35) from drag plate subassembly (16).
  • Page 37 NOTE: Screw (24) is tightened during final assembly of the head. 18.15 Turn assembly right way up. Fill drum enclosure with 60ml of Vinten fluid No. 3. 18.16 Install three 'O' rings (38) in recesses in drag plate subassembly (16).
  • Page 38 19.4 Install knob boss on shaft, engaging slot with pin (13). Fit knob over boss and secure with washer (15) and screw (16). Install bung (17). Balance adjuster assembly (Vector 70) NOTE: The balance adjuster was improved at Serial No. 3307. The earlier balance adjuster (3354-14) should be replaced with the redesigned balance adjuster (3554-54).
  • Page 39 Contents First Previous Next Previous Page Page Page View 20.9 Install the ‘E’ clip (12) on the adjuster shaft (11). 20.10 Install the bevel gear (14) on the adjuster shaft (11) and secure with Spirol pin (15). Tighten grubscrew (8). If a new bevel gear is being installed, proceed as follows: 20.10.1 Install the bevel gear (14) on the adjuster shaft (11).
  • Page 40 Contents First Previous Next Previous Page Page Page View 21.10 Install the bevel gear (15) on the adjuster shaft (11) and secure with Spirol pin (16). Tighten grubscrew (8). If a new bevel gear is being installed, proceed as follows: 21.10.1 Install the bevel gear (15) on the adjuster shaft (11).
  • Page 41 Contents First Previous Next Previous Page Page Page View UPPER DRIVE ARM HORIZONTAL TRACK ARM MECHANISM HOUSING UPPER DRIVE ARM O.OO5 in. SHIM O.OO5 in. HERE SHIM HERE LOWER DRIVE ARM UPPER DRIVE ARM LOWER DRIVE ARM BASE V70_51 Fig 5.1 Balance mechanism shims...
  • Page 42 Contents First Previous Next Previous Page Page Page View 22.6.1 Measure the width across the upper bearing faces of the mechanism housing - dimension C. 22.6.2 Measure the distance between the bearing faces of the upper drive arm - dimension D. 22.6.3 Subtract C from D, divide by 2 and, using shims (17), assemble two shim packs to this figure, allowing not more than 0.002 in.
  • Page 43 Contents First Previous Next Previous Page Page Page View 22.17 Position LH actuator (34) in lower LH end of vertical track member (7), with a 0.005 in. shim (17) on each side. Install pivot pin (31) and secure with grubscrew (8). NOTE: Final adjustment of bearings is carried out after assembly of the head.
  • Page 44 Contents First Previous Next Previous Page Page Page View 22.31 Install the tilt drag side pivot block (5) in the vertical track member in a similar manner, but do not fit any shims (17). 22.32 Ensure LH and RH actuators (42, 34) are central in mechanism housing and fully tighten screws (32), Support caps NOTE: Lubricate all shims, pins and other moving parts of the support caps with LM grease.

  • Page 45: Tilt Brake

    Contents First Previous Next Previous Page Page Page View 23.10 Install the tilt brake push rod (23) between the cup on the tilt brake link arm (19) and the cup on the tilt brake lever (18). 23.11 Position the pan brake rocker arm (7) in the support cap pivot (1). Apply Loctite 222E to the threaded stud of the spring assembly (8) and pass it through the rocker arm and screw it into the pan brake fork end (6).

  • Page 46: Centre Lock

    Balance mechanism installation To install the balance mechanism, proceed as follows: 28.1 Install balance mechanism assembly on base assembly. NOTE: An extended 4 mm AF spherical-ended hex wrench (Vinten Part No. 3354-931TL) is required to install the support caps. 28.2 Referring to 6.3, secure LH support cap to base with three screws (1, 24 and 25) using...
  • Page 47 Contents First Previous Next Previous Page Page Page View Tilt unit cover and balance knob Install tilt unit cover and balance knob as follows (Fig 6.10): 30.1 Install ‘O’ ring (20) in the tilt unit cover (33). 30.2 Install the tilt cover/centre lock assembly (30-37) on the tilt back plate (41), ensuring dowel (31) engages in appropriate slot.
  • Page 48 Contents First Previous Next Previous Page Page Page View 31.13 Loosely install screw (22) in slide clamp lever (23) Position lever in platform and screw in slide clamp screw (25) until it engages with lever. Position slide clamp (18) in platform and fully screw in slide clamp screw (25).

  • Page 49: Final Adjustment

    33.15 Apply Hylomar gasket sealant to mating face of gasket (4). 33.16 Taking care not to spill the Vinten fluid, position mechanism housing (1) on assembled tilt drag mechanism, ensuring actuator cam shaft (30) engages with bearing and pins (7, 10) engage with holes in mechanism housing.
  • Page 50 The pan bearing is adjusted by tightening or slackening screw (24). Adjust the pan bearing as follows 36.1 Mount the head on a suitable mount that will support the head and payload and allow access to screw (24). A Vinten HD1 heavy-duty tripod is recommended. 36.2 Fit a 70 kg payload to the head.
  • Page 51 Contents First Previous Next Previous Page Page Page View 38.4 Press bubble illumination switch and ensure LED is lit for approximately 15 seconds. 38.5 Install RH cover plate (7) and secure with three screws (5). 38.6 If removed, adhere buffer pad (3) to brake lever cover plate (4) using Loctite 406. Lubricate the brake lever area using Chesterton grease 38.7 Install brake guide housing (6) and brake lever cover plate (4) and secure with four screws (5).

  • Page 52: Illustrated Parts List

    Fig 6.4 Vector 70/70H Pan and Tilt Head - Pan Drag/Brake Mechanism ......62...

  • Page 53: Ordering Spare Parts

    ASSEMBLY PART No. Vector 70 Pan & Tilt Head - with four-hole flat base 3354-3 Vector 70 Pan & Tilt Head (USA) - with lightweight Mitchell adaptor 3354-5 Vector 70H Pan & Tilt Head - with four-hole flat base 3354-3H Vector 70H Pan &...
  • Page 54 Contents First Previous Next Previous Page Page Page View V70_ip01 Fig 6.1 Vector 70/70H Pan and Tilt Head...
  • Page 55 Contents First Previous Next Previous Page Page Page View Fig 6.1 Vector 70/70H Pan and Tilt Head Item Part No Nomenclature 3354-3 Final assembly - Vector 70, comprising 3354-11 Main assembly - Vector 70 Head (Fig 6.2) 3389-3 Wedge adaptor assembly...
  • Page 56 Contents First Previous Next Previous Page Page Page View Fig 6.1 Vector 70/70H Pan and Tilt Head (Cont) Item Part No Nomenclature L054-010 Screw, countersunk head, socket, 3/8in. BSW x 3/4 in. long C550-023 Battery, 9 Volts, Size - PP3...
  • Page 57 Contents First Previous Next Previous Page Page Page View V70_ip02 Fig 6.2 Vector 70/70H Pan and Tilt Head - Main Assembly...
  • Page 58 Contents First Previous Next Previous Page Page Page View Fig 6.2 Vector 70/70H Pan and Tilt Head - Main Assembly Item Part No Nomenclature 3354-11 Vector 70 main assembly, comprising: – Tilt brake/balance knob/centre lock (Fig 6.10) 3354-16 Platform assembly (Fig 6.11)
  • Page 59 Contents First Previous Next Previous Page Page Page View V70_ip03 Fig 6.3 Vector 70/70H Pan and Tilt Head - Base...
  • Page 60 Contents First Previous Next Previous Page Page Page View Fig 6.3 Vector 70/70H Pan and Tilt Head - Base Item Part No Nomenclature M006-718 Screw, cap head, socket, M5 x 40 mm long 3354-23 Brake lever support cap assembly (Fig 6.5), OR...
  • Page 61 Previous Next Previous Page Page Page View Fig 6.3 Vector 70/70H Pan and Tilt Head - Base (Cont) Item Part No Nomenclature 3354-438 Support cap (left hand) new hole positions P001-018* Bearing, plain, du bush, 8 mm ID x 10 mm OD x 12 mm long...
  • Page 62 Contents First Previous Next Previous Page Page Page View V70_ip04 Fig 6.4 Vector 70/70H Pan and Tilt Head - Pan Drag/Brake Mechanism...
  • Page 63 Previous Next Previous Page Page Page View Fig 6.4 Vector 70/70H Pan and Tilt Head - Pan Drag/Brake Mechanism Item Part No Nomenclature 3354-22 Pan drag lid (rivet bush) assembly M005-513 Screw, button head, socket, M4 x 6 mm long R200-004* Seal, bonded, M4, 4.5 mm ID x 7.0 mm OD x 1.0 mm thick...
  • Page 64 Previous Next Previous Page Page Page View Fig 6.4 Vector 70/70H Pan and Tilt Head - Pan Drag/Brake Mechanism (Cont) Item Part No Nomenclature R900H009* ’O’ ring, 9.1 mm ID x 1.6 mm sect, Dowty 202-511-4470 M700-037 Circlip, internal, increased abutment, 22 mm bore dia. x 1.00 mm thick M601-016 Washer, wave, 16 mm ID x 22 mm OD x 0.25 mm thick...
  • Page 65 Contents First Previous Next Previous Page Page Page View 24.00 mm ARRANGE TWENTY DISC SPRINGS AS SHOWN V70_ip05 Fig 6.5 Vector 70/70H Pan and Tilt Head - Brake Lever Support Cap Assembly...
  • Page 66 Previous Next Previous Page Page Page View Fig 6.5 Vector 70/70H Pan and Tilt Head - Brake Lever Support Cap Assembly Item Part No Nomenclature 3354-23 Brake lever support cap assembly (Vector 70), comprising: 3354-439 Support cap (right hand) new hole positions...
  • Page 67 First Previous Next Previous Page Page Page View Fig 6.5 Vector 70/70H Pan and Tilt Head - Brake Lever Support Cap Assembly (Cont) Item Part No Nomenclature 3354-441 Support cap (right hand) 70H new hole position 3354-250 Actuator rod L701-082 Fastener, push-on, standard, 0.156 in.
  • Page 68 Contents First Previous Next Previous Page Page Page View V70_ip06 Fig 6.6 Vector 70/70H Pan and Tilt Head - Mechanism Housing Assembly (Sheet 1)
  • Page 69 Contents First Previous Next Previous Page Page Page View V70_ip07 Fig 6.6 Vector 70/70H Pan and Tilt Head - Mechanism Housing Assembly (Sheet 2)
  • Page 70 First Previous Next Previous Page Page Page View Fig 6.6 Vector 70/70H Pan and Tilt Head - Mechanism Housing Assembly Item Part No Nomenclature M006-702 Screw, cap head, socket, M5 x 10 mm long 3354-16 Platform assembly (Vector 70) (Fig 6.11)
  • Page 71 Contents First Previous Next Previous Page Page Page View Fig 6.6 Vector 70/70H Pan and Tilt Head - Mechanism Housing Assembly (Cont) Item Part No Nomenclature 3354-410 Seal plate M005-912 Screw, countersunk head, socket, M4 x 10 mm long Q500-040* ’Omniseal’, 1.380 in.
  • Page 72 Contents First Previous Next Previous Page Page Page View 4.5 mm V70_ip08 Fig 6.7 Vector 70 Pan and Tilt Head - Balance Adjuster Assembly...
  • Page 73 Previous Next Previous Page Page Page View Fig 6.7 Vector 70 Pan and Tilt Head - Balance Adjuster Assembly Item Part No Nomenclature 3354-54* Adjustment housing assembly (Vector 70), comprising: P603-003* Bearing, track roller, yoke type, 7 mm bore dia., 16 mm roller dia. x 7.8 mm roller width...
  • Page 74 Contents First Previous Next Previous Page Page Page View 4.5 mm V70_ip09 Fig 6.8 Vector 70H Pan and Tilt Head - Balance Adjuster Assembly...
  • Page 75 Contents First Previous Next Previous Page Page Page View Fig 6.8 Vector 70H Pan and Tilt Head - Balance Adjuster Assembly Item Part No Nomenclature 3354-55 Balance adjuster assembly (Vector 70H), comprising: P603-003* Bearing, track roller, yoke type, 7 mm bore dia., 16 mm roller dia. x 7.8 mm roller width 3354-220 Shim (Roller axle)
  • Page 76 Contents First Previous Next Previous Page Page Page View V70_ip10 Fig 6.9 Vector 70/70H Pan and Tilt Head - Tilt Drag Mechanism...
  • Page 77 First Previous Next Previous Page Page Page View Fig 6.9 Vector 70/70H Pan and Tilt Head - Tilt Drag Mechanism Item Part No Nomenclature 3354-201 Balance mechanism housing (Fig 6.6) M005-734 Screw, low-profile, cap head, socket, M4 x 10 mm long...
  • Page 78 Previous Next Previous Page Page Page View Fig 6.9 Vector 70/70H Pan and Tilt Head - Tilt Drag Mechanism (Cont) Item Part No Nomenclature Q001-014* ’O’-Ring, 3/8 in. nominal ID x 0.070 in. section, hardness 70 IRHD 3354-444 Actuator cam shaft (increased sealing length)
  • Page 79 Contents First Previous Next Previous Page Page Page View Arrange 19 disc springs 48.5 mm as shown V700ip11 Fig 6.10 Vector 70/70H Pan and Tilt Head - Tilt Brake/Balance Knob/Centre Lock...
  • Page 80 First Previous Next Previous Page Page Page View Fig 6.10 Vector 70/70H Pan and Tilt Head - Tilt Brake/Balance Knob/Centre Lock Item Part No Nomenclature 3354-13 Mechanism housing assembly (Vector 70H) OR 3354-43 Mechanism housing assembly (Vector 70H) (Fig 6.6)
  • Page 81 Contents First Previous Next Previous Page Page Page View Fig 6.10 Vector 70/70H Pan and Tilt Head - Tilt Brake/Balance Knob/Centre Lock Item Part No Nomenclature 3354-37 Tilt cover/centre lock assembly, comprising: 3354-258 Centre lock plunger L801-106 Pin, dowel, 1/8 in. dia. x 3/4 in. long J532-165 Spring, compression, 0.500 in.
  • Page 82 Contents First Previous Next Previous Page Page Page View V70_ip12 Fig 6.11 Vector 70/70H Pan and Tilt Head - Platform Assembly...
  • Page 83 Contents First Previous Next Previous Page Page Page View Fig 6.11 Vector 70/70H Pan and Tilt Head - Platform Assembly Item Part No Nomenclature 3354-242 Standard platform slide M006-921* Screw, countersunk head, socket, M5 x 10 mm long M806-004* Pin, coiled-spring, 4 mm dia. x 10 mm long, hdp...
  • Page 84 Contents First Previous Next Previous Page Page Page View V70_ip13 Fig 6.12 Vector 70/70H Pan and Tilt Head - Pan Bars...
  • Page 85 First Previous Next Previous Page Page Page View Fig 6.12 Vector 70/70H Pan and Tilt Head - Pan Bars Item Part No Nomenclature 3219-62 Pan bar and clamp assembly, comprising: M007-506 Screw, button head, socket, M6 x 20 mm long...
  • Page 86 Contents First Previous Next Previous Page Page Page View Fig 6.12 Vector 70/70H Pan and Tilt Head - Pan Bars (Cont) Item Part No Nomenclature M007-506 Screw, button head, socket, M6 x 20 mm long 3308-159 Washer 3219-60 Pan bar clamp assembly (Vector 70) - parts as above...
  • Page 87 Contents First Previous Next Previous Page Page Page View V70_ip14 Fig 6.13 Vector 70/70H Pan and Tilt Head - Wedge adaptor assembly...
  • Page 88 Contents First Previous Next Previous Page Page Page View Fig 6.13 Vector 70/70H Pan and Tilt Head - Wedge adaptor assembly Item Part No. Nomenclature 3389-3 Automatic wedge adaptor, comprising: 3389-301 Body L850-054 Threaded-insert, wire thread insert (helicoil), 3/8 in. BSW x 2...
  • Page 89 Contents First Previous Next Previous Page Page Page View Fig 6.14 Vector 70/70H Pan and Tilt Head - Composite Spare Parts Part No Nomenclature 3354-914SP Seal kit, comprising: 3354-412 Gasket 3354-414 Inner gasket R200-004 Seal, bonded, M4, 4.5 mm ID x 7.0 mm OD x 1.0 mm thick R900H001 ’O’...
  • Page 90 First Previous Next Previous Page Page Page View Fig 6.14 Vector 70/70H Pan and Tilt Head - Composite Spare Parts (Cont) Part No Nomenclature 3354-916SP Set of drag shoes, comprising: 3354-21 Pan friction shoe assembly 3354-17 Tilt drag shoe assembly (type A)
  • Page 91 Contents First Previous Next Previous Page Page Page View Fig 6.14 Vector 70/70H Pan and Tilt Head - Composite Spare Parts (Cont) Part No Nomenclature 3354-922SP Platform assembly (Spares), comprising: 3354-230 Platform 3354-261 Serrated disc (Mk7 type) 3354-448 Slide clamp block...
  • Page 92 Contents First Previous Next Previous Page Page Page View Fig 6.14 Vector 70/70H Pan and Tilt Head - Composite Spare Parts (Cont) Part No Nomenclature 3354-926SP Drive arm assembly, comprising: 3354-202 Upper drive arm 3354-298 Pivot pin N001-043 Bearing, plain, du bush, 1/4 in. ID x 5/16 in. OD x 3/8 in. long...
  • Page 93 First Previous Next Previous Page Page Page View Fig 6.14 Vector 70/70H Pan and Tilt Head - Composite Spare Parts (Cont) Part No Nomenclature 3354-937SP Vert. Track /Act repair kit V70, comprising: 3354-923SP Vertical track assembly 3354-54 Adjustment housing assembly...
  • Page 94 First Previous Next Previous Page Page Page View Fig 6.14 Vector 70/70H Pan and Tilt Head - Composite Spare Parts (Cont) Part No Nomenclature 3354-938SP Vert. Track / Act. Repair kit V70H, comprising: 3354-924SP Vertical track member assembly (70H) 3354-55...
