Summary of Contents for Vinten Vector 750i

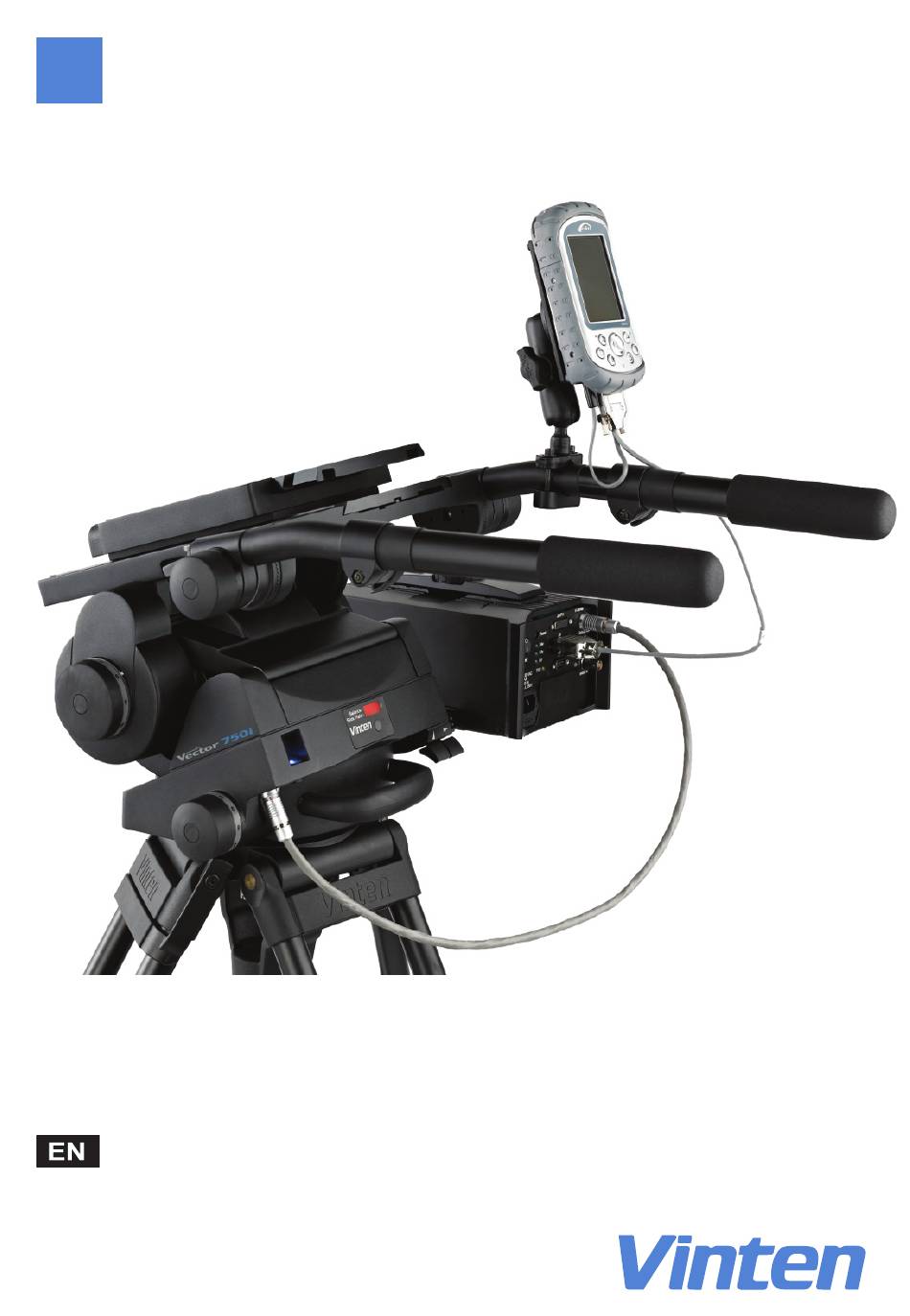

- Page 1 Vector 750i Encoded Head V4080-0001 Operators Guide V4080-4980/4...

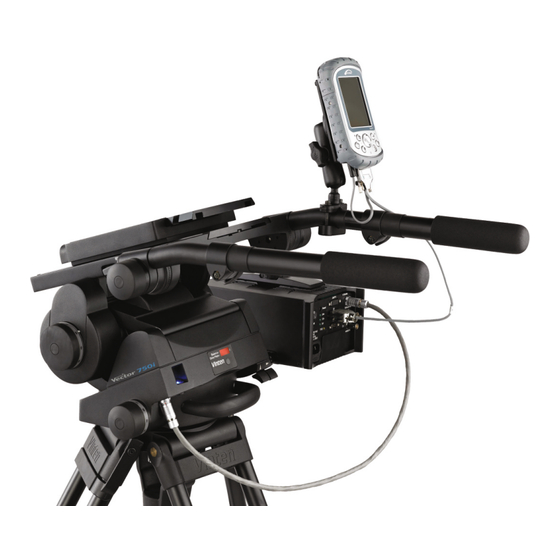

- Page 2 Vector 750i encoded pantographic pan and tilt head...
- Page 3 Revised documentation may be obtainable from Vinten or downloadable from the website (www.vinten.com). ProductionSolutions reserves the right, without notice,...
- Page 4 άλλες γλώσσες. Εάν δυσκολεύεστε translated into other languages. If να καταλάβετε αυτές τις οδηγίες, you are unable to understand these επικοινωνήστε µε τη Vinten ή το instructions, contact Vinten or your διανοµέα σας για να λάβετε µια distributor to obtain a translation of µετάφραση...
- Page 5 Vector 750i encoded pantographic pan and tilt head Lietuvių Română Šiame operatoriaus vadove Instrucţiunile originale prezentate pristatomos pirminės instrukcijos în acest ghid pentru operatori au fost scrise în limba engleză, şi parašytos anglų kalba ir vėliau išverstos į kitas kalbas. Jei šių...
- Page 6 Vector 750i encoded pantographic pan and tilt head Warning symbols in this Disposal of waste batteries Operators Guide Any batteries included with this product must not be treated as household waste. By Where there is a risk of ensuring these batteries are disposed of...
- Page 7 Vector 750i encoded pantographic manual head Technical specification Maximum payload ..........75 Kg (165.3 lbs) Payload Centre of Gravity height range .
- Page 8 Operators guide Contents Safety - read this first..........3 Technical specification .
- Page 9 [10] Fig. 1 Vector 750i encoded pantographic head (rear view) [1] ............Digital numeric display [2] .
- Page 10 [16] Fig. 2 Vector 750i encoded pantographic head (underside) [15] ............Four bolt fixing holes...
- Page 11 [11] Fig. 3 Vector 750i encoded pantographic head (front view) [17] ...........Camera mounting platform [18] .
- Page 12 Operators guide Introduction and description The Vector 750i encoded pantographic pan and tilt head features a unique linkage counterbalancing (pantograph) mechanism, thin film (TF) drag assemblies for pan and tilt motions, and a unique slide plate and balance mechanism position measurement for mid- broadcast camera adjustments.
- Page 13 VR/AR capability The Vector 750i encoded pantographic head has been specifically designed for use within VR/ AR applications when partnered with the Virtual Reality Interface (VRi) box, allowing computer- generated objects to be rendered into a video from the correct viewpoint. The VRi box...
- Page 14 The head is supplied with a single telescopic pan bar, automatic wedge adaptor, four fixing bolts and washers, and a Vinten spanner. A battery is already fitted for the level bubble and drag knob illumination. Ensure that all items are unpacked prior to assembly of the head and disposal of the packing materials.
- Page 15 Vector 750i encoded pantographic manual head Fitting the camera Warning! Do NOT rely on the tilt brake when changing the payload. Be prepared to prevent the payload falling away. Always engage the centre lock. Ensure that the weight and C of G height of the total payload is within the range for which the head is designed: up to 75 kg (167.3 lbs) with a...
- Page 16 Operators guide Insert the camera wedge into the wedge adaptor and push it forward until it fully engages. Push in the operating lever [27] until it lies parallel with the wedge adaptor body. During this operation resistance of the spring-loaded over-centre mechanism will be felt.
- Page 17 Vector 750i encoded pantographic manual head Adjust payload C of G height When fore and aft balance has been achieved, adjust the payload C of G height as follows: Using the pan bar, tilt the platform forward and backward. When correctly balanced, there should be no perceptible tilting force on the pan bar at any angle of tilt and the head should remain in any tilt position to which it is set.
- Page 18 Operators guide To engage the lock: Hold the platform in the horizontal position and push the button [22] inwards until it latches and the release catch [22.1] appears. Use the pan bar to rock the platform slightly whilst pushing the button [22]. To release the centre lock [22], rock the platform slightly and push down on the release catch [22.1].
- Page 19 Adjustments and repairs should be carried out by a competent and qualified person. Routine maintenance Routine maintenance on the Vector 750i encoded pantographic head is limited. During normal use, check the effectiveness of the platform slide clamp and the adequacy of the level bubble illumination.
- Page 20 Operators guide [32] [14] [18] [30] [17] [20] [31] Fig. 7 Cleaning the vertical tracks Using a pipe cleaner (or similar) moistened with an isopropanol-based cleaner (3M VBH or similar) clean the two vertical tracks [32]. Upward pressure on the balance mechanism will allow the area of track under the vertical rollers to be cleaned.
- Page 21 Vector 750i encoded pantographic manual head [17] [33] [21] [34] [35] Fig. 8 Cleaning the horizontal tracks Using a pipe cleaner (or similar) moistened with an isopropanol-based cleaner (3M VBH or similar), clean the two horizontal tracks [34]. Upward pressure on the balance mechanism [34] will allow the area of track under the horizontal rollers to be cleaned.
- Page 22 Operators guide [39] [36] [38] [37] Fig. 9 Installing the battery (bottom view) Refit the battery cover plate [39], ensuring the battery locates in the coverplate. Secure with three screws [36]. To test, press the button [7] and ensure the lamp is lit for approximately 15 seconds. NOTE: After a battery change, both the balance and the slide plate sensor will need calibrating (see page 24 for instructions).
- Page 23 Vector 750i encoded pantographic manual head Platform slide clamp adjustment [18.1] [18] [18.2] [18.3] Fig. 10 Adjusting the slide clamp The platform slide clamp [18] (Fig. 10) should be set so that, in the up or clamped position it prevents the platform slide from being moved, while in the down or released position it allows free adjustment of the slide.
- Page 24 Operators guide Repositioning the wedge adaptor The wedge adaptor (see ‘Fitting the camera’ on page 14) is secured by four cap-head screws which pass through the wedge adaptor into the slide plate. Warning! Overlong screws will prevent the slide plate from operating. Always use the screws provided (M6 x 30 mm).
- Page 25 Vector 750i encoded pantographic manual head Set the tilt brake lever [4] from the OFF to the ON position. If brake pressure is not felt after approximately one-third of lever travel, turn the grub screw [4.1] clockwise until this is achieved.
- Page 26 Main assemblies Vector 750i encoded pantographic head ....... . . V4080-0001 Wedge adaptor .
- Page 27 Vector 750i Encoded Head V4080-0001 Operators Guide 4080-4980/3 for more information, visit www.vinten.com...
