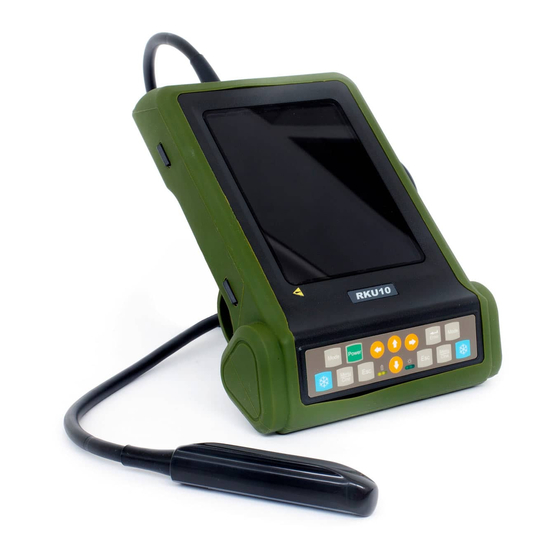

- Page 1 KAIXIN RKU10 Full Digital Ultrasonic Diagnostic Instruments (Vet) User’s Manual Xuzhou Kaixin Electronic Instrument Co., Ltd.
- Page 2 Statement Kaixin has the final explanation right of this user’s manual. Kaixin was considered responsible for the safety, reliability and performance in case of meeting all the following requirements: 1. Assembly, expansion, readjustment, improve and repair are all performed by professionals recognized by Kaixin;...
- Page 3 This user’s manual contains warnings for predictable dangers. Users shall also exercise care at any time to be aware of the dangers unforeseen in this manual. Kaixin shall not be liable for the damages and losses arising out of neglecting to follow the operation instructions herein described.
- Page 4 Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Safety Cautions 1. Warning Symbols and Definitions The following warning symbols are used in this manual to indicate safety level and other important items. Please remember these symbols and understand the meaning as you read this user’s manual. These symbols convey specific meanings as detailed in the table below: Symbols &...
-
Page 5: Table Of Contents
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Contents Chapter One Technical Specifications………………………………………………………………1 Chapter Two System Outline………………………………………………………………………2 2.1 Structure composition of the instrument……………………………………………………2 2.2 Components name……………………………………………………………………………2 2.3 Parts of the probe……………………………………………………………………………2 2.4 Function keys description………………………………………………………………….. 2 Chapter Three System Configuration………………………………………………………………3 Chapter Four Operation Condition………………………………………………………………4 Chapter Five... - Page 6 Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 6.5.9 Image Post-process Adjustment……………………………………………………………13 6.5.10 Edge Enhancement Adjustment……………………………………………………………13 6.6 Image Control…………………………………………………………………………………13 6.6.1 Magnification Selection……………………………………………………………………13 6.6.2 Depth Range Selection and Depth Enhancement………………………………………14 6.6.3 Local Zoom and Local Additive Color……………………………………………………14 6.6.4 Image Left/right Reverse……………………………………………………………………14 6.6.5 Image Up/down Reverse……………………………………………………………………14 6.6.6 Image Negative……………………………………………………………………………14 6.6.7 Ruler (Automatic Backfat Measure)………………………………………………………14...
-
Page 7: Chapter One Technical Specifications
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Chapter One Technical Specifications 1.1 Technical Data 1. Gray scale: 256 2. Monitor: 5.7” LED 3. Adapter ratings: 100-240V~, 1.2-0.6A, 50-60Hz (model: BJE01-40-001M) 4. Output of adapter: DC12.8V 3.0A 5. Main device rating: DC12V 3.0A 6. -
Page 8: Chapter Two System Outline
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Chapter Two System Outline 2.1 Structure composition of the instrument RKU10 full digital ultrasonic diagnostic instruments (Vet) are composed of main unit, probe, etc. 2.2 Components name Power input interface Video output interface Battery cover... -
Page 9: Chapter Three System Configuration
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Chapter Three System Configuration 3.1 Typical configuration 1. Main unit 1 unit 2. 6.5MHz animal transrectal linear array probe 1 PC 3. Power adapter 1 PC 4. Internal battery 1 PC 5. -
Page 10: Chapter Four Operation Condition
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Chapter Four Operation Condition 4.1 Power supply Adapter ratings: 100-240V~, 1.2-0.6A, 50-60Hz Adapter model: BJE01-40-001M Output of adapter: DC12.8V 3.0A Main device rating: DC12V 3.0A 4.2 Operation environment Ambient temperature: 10℃-40℃ Relative humidity: 30%-75% (without condensation) Atmospheric pressure: 700hPa-1060hPa. -
Page 11: Chapter Five System Installation And Check
Warning: 1. When instrument works abnormally, do stop working, turn off the power and check the reason, then contacts the KAIXIN Company about it. 2. Turn off power and pull out of the plug from socket after each ultrasonic diagnostic operation. -
Page 12: System Installation
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 5.1 System installation Please carefully read through and fully understand the use-method before installing the system, and check the goods for its completeness according to the packing list furnished. This system provides the following several usages, for the user to select: 1. -
Page 13: Ultrasonic Probe Installation
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 5.2 Ultrasonic probe installation Warning: 1. Do not use the probe not provided by our company, otherwise the equipment and the probe will cause damage, and may cause fire in extreme cases. 2. -
Page 14: Video Glasses Installation
SUPPLY MAINS. Not to position the EQUIPMENT so that it is difficult to operate the disconnection device. 2. The device should be used only with power adapter provided by Kaixin Company. 3. To avoid damaging power adapter or harming people by unexpected fallen, make sure the power adapter is placed on the leveled desk. -
Page 15: Main Unit Check Before And After Operation
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 free of abnormity (such as cracks and loosened screws). 5. No damage on power cable, and hard up on its connection. 6. Check probe and its connections to ensure they are free of abnormity (such as scuffing, drop-off or contamination). -
Page 16: Chapter Six Functional Operation
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Chapter Six Functional Operation 6.1 Startup and Shutdown In shutdown status, press key, machine starts up, power indicator lights. In startup status, press key, machine shuts down, power indicator goes out. Please note that when shut down the machine, the time of pressing key is a rather long than normal pressing key. -
Page 17: Key Sound Setting
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 4. Press key, the cursor is located above “ID”; at the same time characters input menu will be shown at the bottom of the screen: Caps 0 1 2 3 4 A B C D E F G H I J K L M Shift 5 6 7 8 9 N O P Q R S T U V W X Y Z Press direction keys to move cursor to point to Caps, and then press... -
Page 18: B Mode
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 6.4.1 B Mode B mode is a basic operation mode after startup and a single-framed B mode image is displayed. 6.4.2 B/B Mode 1. In real-time mode, press key to enter B/B mode. 2. -
Page 19: Total Gain Adjustment
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 6.5.2 Total Gain Adjustment In real-time mode, press key to enter main-menu and press direction keys to move cursor to “Gain” in the display area. Press direction key to increase image total gain and direction key to reduce total gain so as to control the total gain of the entire image. -
Page 20: Depth Range Selection And Depth Enhancement
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 direction keys to choose eight kinds of magnification. 6.6.2 Depth Range Selection and Depth Enhancement In real-time B, B/B mode, press key to enter main-menu and press direction keys to move cursor to “Depth”... -
Page 21: Color Selection
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Note: As the swine increases weight and age, and if the measurement site is accurate, two or three layers of backfat thickness can be measured, the backfat measurement values for two or three layers are automatically displayed at the “+:----mm”... -
Page 22: Image Storage And Recall
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 3. Press direction keys to change the probe mark position; press key to change probe mark direction; 4. Press key to quit body mark and probe mark status; 5. Press key to quit froze status. 6.9 Image storage and recall 6.9.1 Save image ... -
Page 23: Single Dump And Mass Dump
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 4. Press direction keys to select the image code need to be read out in the U disk, such as choose “004*”; 5. Press key to appear “Wait” prompt. After the prompt disappear, the image stored in frame “004*” is read out;... -
Page 24: Delete The Image
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 3. Press key twice, “U Disk -> LOCAL Mass Dump?” prompt display at the bottom of the screen; 4. Press key, “Dumping” prompt appears, the number behind “PAUSE” character is the number of files name of mass dumping. -
Page 25: Obstetric List Management
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 2. Press key, the cursor is located behind ID; 3. Press key again, at the same time characters input menu will be shown at the bottom of the screen: Caps 0 1 2 3 4 A B C D E F G H I J K L M Shift 5 6 7 8 9 N O P Q R S T U V W X Y Z Press direction keys to move cursor to point to Caps, and then press... - Page 26 Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 7. Press direction keys to exit obstetric list interface and press key to return to real-time status. Such as: U:\170516\1126.csv It represents that on May 16, 2017, on the storage path U:\170516, save a “1126.csv” EXCEL spreadsheet.
-
Page 27: Chapter Seven General Measurement
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Chapter Seven General Measurement 7.1 Distance Measurement 1. In B, B/B or B/M mode, freeze the desired image, the cursor is located in the “Measure” position of display area; 2. Press key, the measurement methods are showed in the lower left of the screen, press direction keys to choose “Distance”, press... -
Page 28: Circumference/Area/Volume Measurement
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 7.3 Circumference/Area/Volume Measurement Circumference/area measurement with trace method 1. In B, B/B mode, freeze the desired image, the cursor is located in the “Measure” position of display area; 2. Press key, the measurement methods are showed in the lower left of the screen, press direction keys to choose “Trace”, press... -
Page 29: Slope/Heart Rate/Cycle Measurement
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 8. Press key to unfreeze, clear all marks and data and quit the measurement status. Circumference/area/volume measurement with ellipse method 1. In B, B/B mode, freeze the desired image, the cursor is located in the “Measure” position of display area;... -
Page 30: Chapter Eight Obstetric Measurement
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Chapter Eight Obstetric Measurement 8.1 Measurement and Calculation items Obstetric tables of the system including: 1.BOVINE, 2.EQUINE, 3.OVINE, 4.CANINE, 5.FELINE, 6.GOAT, 7.LLAMA, 8. SWINE, which is reference for doctor. 8.2 Measurement of Gestational Age (GA) and Estimated Date of Confinement (EDC) Follow the steps below: 1. -
Page 31: Obstetric Report
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 3. Press direction keys to select “2. %Lean”, press key again to confirm, the cursor will show “+”; 4. Press direction keys to select “Weight” (range1.0~300.0kg), press key again to confirm; 5. -
Page 32: Chapter Nine System Maintenance
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Chapter Nine System Maintenance The system maintenance should be performed by the user and service engineer. Users shall be in full charge of maintenance and operation of the system after purchasing the product. 9.1 Maintenance by users 9.1.1 System cleaning and disinfection Warning... - Page 33 1. Clean the probe with sterile water to remove the residual chemicals after disinfection, because the residual chemicals may be harmful for humans. 2. Kaixin Company will not make any guarantee for the efficacy of disinfector. Please contact the appropriate manufacturer for details.
-
Page 34: Use And Maintenance For The Rechargeable Battery
9.1.2 Use and maintenance for the rechargeable battery 1. Only use charger and battery (model RK-HYLB-1676) provided by KaiXin Company. 2. The output port of adapter plugs into the input port of charger to charge; the minimum charging time is 6 hours and up to 7 hours. -
Page 35: Troubleshooting
9.2 Troubleshooting To ensure normal operation, users are recommended to prepare a proper maintenance and regular examination plan to regularly check on product safety performance. If any abnormity occur, timely contact International Trade Dept of Kaixin for support. - 29 -... -
Page 36: Periodic Safety Checks
9.3 Periodic Safety Checks To ensure the system performance and safety, it must be checked after using 1 year. When check the instrument, please consult the International Trade Dept of Kaixin or its dealers, as they need to have professional technology engineers. -
Page 37: Chapter Ten Storage And Transportation
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.24 Chapter Ten Storage and Transportation Storage and Transportation 1. If the instrument is stored over 3 months, take out the instrument from the packing case, connect it to power supply for 4 hours, and then disconnect the power and place it in the case again following the direction indicated by arrows on the package. - Page 38 KAIXIN ELECTRONIC XUZHOU KAIXIN ELECTRONIC INSTRUMENT CO., LTD. Kaixin Mansion, C-01. Economic Development Zone, Xuzhou, Jiangsu, China Post Code: 221004 Tel: +86-516-87732932/87733758 Fax: +86-516-87732932/87792848 Website: http://www.kxele.com E-mail: info@kxele.com Shanghai International Holding Corp. GmbH (Europe) Eiffestrasse 80, 20537 Hamburg, Germany Information contained in this manual is subject to change without further notice.
