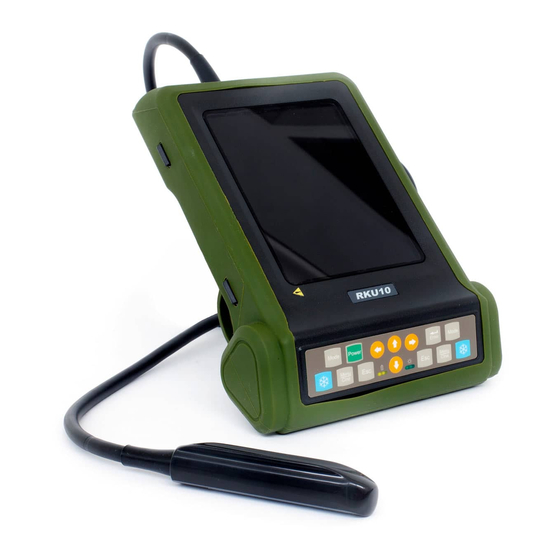

- Page 1 KAIXIN Full Digital Ultrasonic Diagnostic RKU10 Instruments (Vet) User’s Manual XUZHOU KAIXIN ELECTRONIC INSTRUMENT CO., LTD.
- Page 2 Statement Kaixin has the final explanation right of this user’s manual. Kaixin was considered responsible for the safety, reliability and performance in case of meeting all the following requirements: 1. Assembly, expansion, readjustment, improve and repair are all performed by professionals recognized by Kaixin;...
- Page 3 This user’s manual contains warnings for predictable dangers. Users shall also exercise care at any time to be aware of the dangers unforeseen in this manual. Kaixin shall not be liable for the damages and losses arising out of neglecting to follow the operation instructions herein described.
- Page 4 Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Safety Cautions 1. Warning Symbols and Definitions The following warning symbols are used in this manual to indicate safety level and other important items. Please remember these symbols and understand the meaning as you read this user’s manual. These symbols convey specific meanings as detailed in the table below: Symbols &...
-
Page 5: Table Of Contents
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Contents Chapter One Technical Specifications………………………………………………………………1 Chapter Two System Outline………………………………………………………………………2 2.1 Structure composition of the instrument……………………………………………………2 2.2 Components name……………………………………………………………………………2 2.3 Parts of the probe……………………………………………………………………………2 2.4 Function keys description………………………………………………………………….. 2 Chapter Three System Configuration………………………………………………………………3 Chapter Four Operation Condition………………………………………………………………3 Chapter Five... - Page 6 Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 6.5.7 Focus Adjustment and Control……………………………………………………………12 6.5.8 Frame Correlation Adjustment……………………………………………………………12 6.5.9 Image Post-process Adjustment……………………………………………………………12 6.5.10 Edge Enhancement Adjustment……………………………………………………………12 6.6 Image Control…………………………………………………………………………………12 6.6.1 Magnification Selection……………………………………………………………………12 6.6.2 Depth Range Selection and Depth Enhancement………………………………………12 6.6.3 Local Zoom and Local Additive Color……………………………………………………13 6.6.4 Image Left/right Reverse……………………………………………………………………13 6.6.5 Image Up/down Reverse……………………………………………………………………13 6.6.6 Image Negative……………………………………………………………………………13...
-
Page 7: Chapter One Technical Specifications
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Chapter One Technical Specifications 1.1 Technical Data 1. Gray scale: 256 2. Monitor: 5.7” LCD 3. Adapter ratings: 100-240V~, 50-60Hz, 70VA (model: BJE01-40-001M) 4. Output of adapter: DC12V 3.0A 5. Main device rating: DC12V 3.0A 6. -
Page 8: Chapter Two System Outline
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Chapter Two System Outline 2.1 Structure composition of the instrument RKU10 full digital ultrasonic diagnostic instruments (Vet) are composed of main unit, probe, etc. 2.2 Components name Power input interface Battery cover Video output interface... -
Page 9: Chapter Three System Configuration
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Chapter Three System Configuration 3.1 Typical configuration 1. Main unit 1 unit 2. 6.5MHz animal transrectal linear array probe 1 PC 3. Power adapter 1 PC 4. Internal battery 1 PC 5. -
Page 10: Chapter Five System Installation And Check
Warning: 1. When instrument works abnormally, do stop working, turn off the power and check the reason, then contacts the KAIXIN Company about it. 2. Turn off power and pull out of the plug from socket after each ultrasonic diagnostic operation. - Page 11 Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 1. Place the instrument on the arm to use The instrument can be placed on the arm to use for two states: on the right arm or left arm. Right ring or left ring is respectively set on the right thumb or left thumb, hold the instrument as shown in the figure below.
-
Page 12: Ultrasonic Probe Installation
Probe is highly sensitive to shake, be used with caution. About probe’s use and cleaning, the details see the relevant sections. Warning: 1. The Kaixin ultrasonic probe shall be connected to the dedicated Kaixin ultrasonic system only. Select proper probe model according to the relevant instructions of ultrasonic diagnostic system. -
Page 13: Video Recorder Installation
1. Adapter has no switch. The isolation of the system with the MAINS used to unplug the adapter as the intended isolation means. 2. The device should be used only with power adapter provided by Kaixin Company. 3. To avoid damaging power adapter or harming people by unexpected fallen, make sure the power adapter is placed on the leveled desk. -
Page 14: Main Unit Check Before And After Operation
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 5.9 Main unit check before and after operation 5.9.1 Inspection before start-up Check the following items before starting the machine: 1. The temperature, humidity and atmospheric pressure shall meet the requirements of operation condition. -
Page 15: Chapter Six Functional Operation
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Chapter Six Functional Operation 6.1 Startup and Shutdown In shutdown status, press key, machine starts up, power indicator lights. In startup status, press key, machine shuts down, power indicator goes out. Please note that when shut down the machine, the time of pressing key is a rather long than normal pressing key. -
Page 16: Key Sound Setting
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Press direction keys or operate mouse to move cursor to point to Caps, and then press key or click left mouse to achieve capital and small letter conversion; If the cursor point to Shift, press key or click left mouse again to achieve the conversion between the letter and punctuation;... -
Page 17: Mode
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 cursor to “B/B Mode” and then press direction keys to switch image display. Or right click mouse to switch image display, the selected image is activated and the other one is frozen. 3. -
Page 18: Far Field Gain Adjustment
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 6.5.4 Far Field Gain Adjustment In real-time mode, press key to enter main-menu and press direction keys to move cursor to “Far” in the display area. Press direction key to increase far field gain and direction key to reduce far field gain so as to control the gain in far field region. -
Page 19: Local Zoom And Local Additive Color
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 6.6.3 Local Zoom and Local Additive Color In real time mode, press key to enter main-menu and press direction keys to move cursor to “Local Zoom” in the display area and then press direction keys , a box appears. -
Page 20: Body Mark And Probe Mark
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Lithotripsy positioning line: In real-time B mode, press key to enter main-menu and press direction keys to move cursor to “Puncture” and then press direction keys to choose line 3, press to confirm, lithotripsy positioning line appears on the screen;... -
Page 21: Open Image
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 6.9.2 Open image Open image in the main unit 1. Freeze the image; 2. Continuously press key twice, a “Read” prompt appears on lower right corner of the screen; 3. Press direction keys to select the image code need to be read out in the “LOCAL”, such as choose “003*”;... -
Page 22: Delete The Image
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 6. Press key to quit dumping status and press key to return to real-time status. Note: If not enter number (ID), it will select the image within the system default “USER” folder. The operation steps are 2-6. -
Page 23: Print Picture
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 4. Press key to return to frozen status. 6.13 Print picture 1. Freeze the image, press key to enter reading or saving image status; 2. Press key to appear “Wait” prompt. After the prompt disappear, the image is printed out. Explanation: 1. -
Page 24: Chapter Seven General Measurement
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Chapter Seven General Measurement 7.1 Distance Measurement 1. In B, B/B or B/M mode, freeze the desired image, the cursor is located in the “Measure” position of display area; 2. Press key, the measurement methods are showed in the lower left of the screen, press direction keys to choose “Distance”, press... - Page 25 Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 3. Press direction keys or operate mouse to move the “+” mark to desired position, press key or click left mouse to set the “+” mark position as the starting point of the measurement; or click right mouse to set the “+”...
-
Page 26: Slope/Heart Rate/Cycle Measurement
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 5. Press key, the “ ”mark appears on the screen. Hold down key to change the minor axis of the ellipse so as to satisfy the test area. The measured values are displayed at the built-in characters “C: 00000mm, A: 00000mm , V: 00000 cm ”... -
Page 27: Chapter Eight Obstetric Measurement
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Chapter Eight Obstetric Measurement 8.1 Measurement and Calculation items Obstetric tables of the system including: 1.BOVINE, 2.EQUINE, 3.OVINE, 4.CANINE, 5.FELINE, 6.GOAT, 7.LLAMA, 8. SWINE, which is reference for doctor. 8.2 Measurement of Gestational Age (GA) and Estimated Date of Confinement (EDC) Follow the steps below: 1. -
Page 28: Obstetric Report
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 5. Move the cursor to the measuring position of fat thickness, press key or click left mouse to conform the starting point of measurement, measure the fat thickness with distance measurement method, the fat thickness is displayed in real time in the right area of the screen;... -
Page 29: Chapter Nine System Maintenance
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Chapter Nine System Maintenance The system maintenance should be performed by the user and service engineer. Users shall be in full charge of maintenance and operation of the system after purchasing the product. 9.1 Maintenance by users 9.1.1 System cleaning and disinfection Warning... - Page 30 Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 (2) Clean the probe firstly before regular disinfection. 2％glutaraldehyde disinfectant is recommended for the probe. Immerse the sound head part of the probe (See regular disinfection sketch map) in liquid for more than 10 hours for disinfection. Attention 1.
-
Page 31: Use And Maintenance For The Rechargeable Battery
9.1.2 Use and maintenance for the rechargeable battery 1. Only use charger and battery (model RK-HYLB-1676) provided by KaiXin Company. 2. The output port of adapter plugs into the input port of charger to charge; the minimum charging time is 6 hours and up to 7 hours. -
Page 32: Troubleshooting
International Trade Dept of Kaixin for support. If the following problems occur on starting up the machine, try to make corrections following the method in the table. If the problem remains unsolved, contact International Trade Dept of Kaixin for support. -
Page 33: Periodic Safety Checks
9.3 Periodic Safety Checks To ensure the system performance and safety, it must be checked after using 1 year. When check the instrument, please consult the International Trade Dept of Kaixin or its dealers, as they need to have professional technology engineers. -
Page 34: Chapter Ten Storage And Transportation
Full digital ultrasonic diagnostic instruments (Vet) User’s Manual V2.00 Chapter Ten Storage and Transportation Storage and Transportation 1. If the instrument is stored over 3 months, take out the instrument from the packing case, connect it to power supply for 4 hours, and then disconnect the power and place it in the case again following the direction indicated by arrows on the package. - Page 35 KAIXIN ELECTRONIC XUZHOU KAIXIN ELECTRONIC INSTRUMENT CO., LTD. Kaixin Mansion, C-01. Economic Development Zone, Xuzhou, Jiangsu, China Post Code: 221004 Tel: +86-516-87732932/87733758 Fax: +86-516-87732932/87792848 Website: http://www.kxele.com E-mail: gm01@kxele.com Information contained in this manual is subject to change without further notice.
