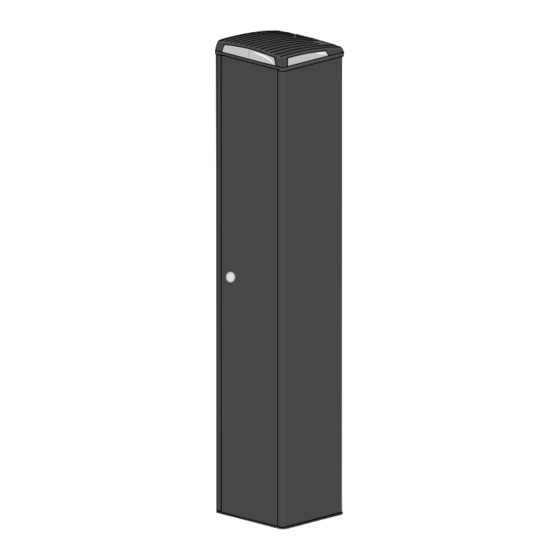

Summary of Contents for Motorline professional FORT

  • Page 1 FORT USER/INSTALLER MANUAL v4.3 REV. 12/2023...
  • Page 2: Table Of Contents

    00. CONTENT 01. SAFETY INSTRUCTIONS INDEX This product is certified in accordance with European Community (EC) safety standards. 01. SAFETY INSTRUCTIONS STANDARDS TO FOLLOW This product complies with Directive 2011/65/EU of the European 02. DIAGRAM Parliament and of the Council, of 8 June 2011, on the restriction MAP OF INSTALLATION of the use of certain hazardous substances in electrical and electronic equipment and with Delegated Directive (EU) 2015/863...
  • Page 3: Safety Instructions

    01. SAFETY INSTRUCTIONS GENERAL WARNINGS • Children shouldn’t play with the product or opening devices to avoid the motorized door or gate from being triggered involuntarily. • This manual contains very important safety and usage information. • If the power cable is damaged, it must be replaced by the Read all instructions carefully before beginning the installation/ manufacturer, after-sales service or similarly qualified personnel usage procedures and keep this manual in a safe place that it can...
  • Page 4 01. SAFETY INSTRUCTIONS the power supply cable. Please note that all the cables must enter conditions have been met. the control board from the bottom. • In the event of tripping of circuits breakers of fuse failure, locate • If the automatism is to be installed at a height of more than 2,5m the malfunction and solve it before resetting the circuit breaker or from the ground or other level of access, the minimum safety and replacing the fuse.
  • Page 5: Diagram

    02. DIAGRAM MAP OF INSTALLATION ANTENNA FLASHING KEY SELECTOR LIGHT CONTROL BOARD FIXATION PLATES FORT PHOTOCELLS MAGNETIC LIMIT SWITCH GEAR RACK LEGEND: • Cables of connection • Included in kit • Optional All the cables must enter and exit from below the junction box and the control It is important to use stoppers on the opening and closing of the gate.
  • Page 6: Operator

    03. OPERATOR 04. INSTALLATION TECHNICAL SPECIFICATIONS UNLOCK THE MOTOR 01 • Open the FORT door FORT 24Vdc using the key provided with • Product power supply 110V 50/60Hz 230V 50/60Hz the automatism. Inside, you will have access to the • Motor voltage 24Vdc unlock system.
  • Page 7: Create Foundation And Fixing Automation 6A

    04 • Insert the appropriate bushings into the holes. where you will fix the motor. For correct operation of the automatism, it is necessary to pay attention to the dimensions FORT given in the following images. Also check if the fixation plate is parallel to the gate. SCREWS...
  • Page 8: Metal Gear Rack Installation 7A

    04. INSTALLATION 04. INSTALLATION METAL GEAR RACK INSTALLATION NYLON GEAR RACK INSTALLATION Put the gate in the open position and unlock the motor (page 5B). Put the gate in the open position and unlock the motor (page 5B). 01 • Position a piece of gear rack over the pinion and 01 •...
  • Page 9: Application Of The Magnetic Limit Switch 8A

    04. INSTALLATION 04. INSTALLATION APPLICATION OF THE MAGNETIC LIMIT SWITCH APPLICATION OF THE MAGNETIC LIMIT SWITCH Put the gate in the open position and unlock the motor (page 5B). Before installing, you must identify the opening and closing limit switches. To do this, lock the motor and The limit switches must be adjusted for the gate to stop before touching the press the button to close the gate.
  • Page 10: Connection Scheme

    06. CONNECTION SCHEME 24V MOTOR RGB Flashing light key selector/pushbutton (Total) Antenna CLOSE Photocell Limit-switch OPEN Photocell Motor Transformer...
  • Page 11: Components Test

    • You should use a new capacitor during this test to ensure that the problem does not lie on it. FORT 24Vdc - test 1 Make the connections as shown in the picture. If the motor runs, the problem is in the control board.
  • Page 12: Troubleshooting

    08. TROUBLESHOOTING FINAL CONSUMERS INSTRUCTIONS SPECIALIZED TECHNICIANS INSTRUCTIONS Problem Procedure Behavior Behavior II Discovering the origin of the problem 1 • Open control board and check 3 • Turn off the control board's 4 • If the motor works, problem is 5 •...
