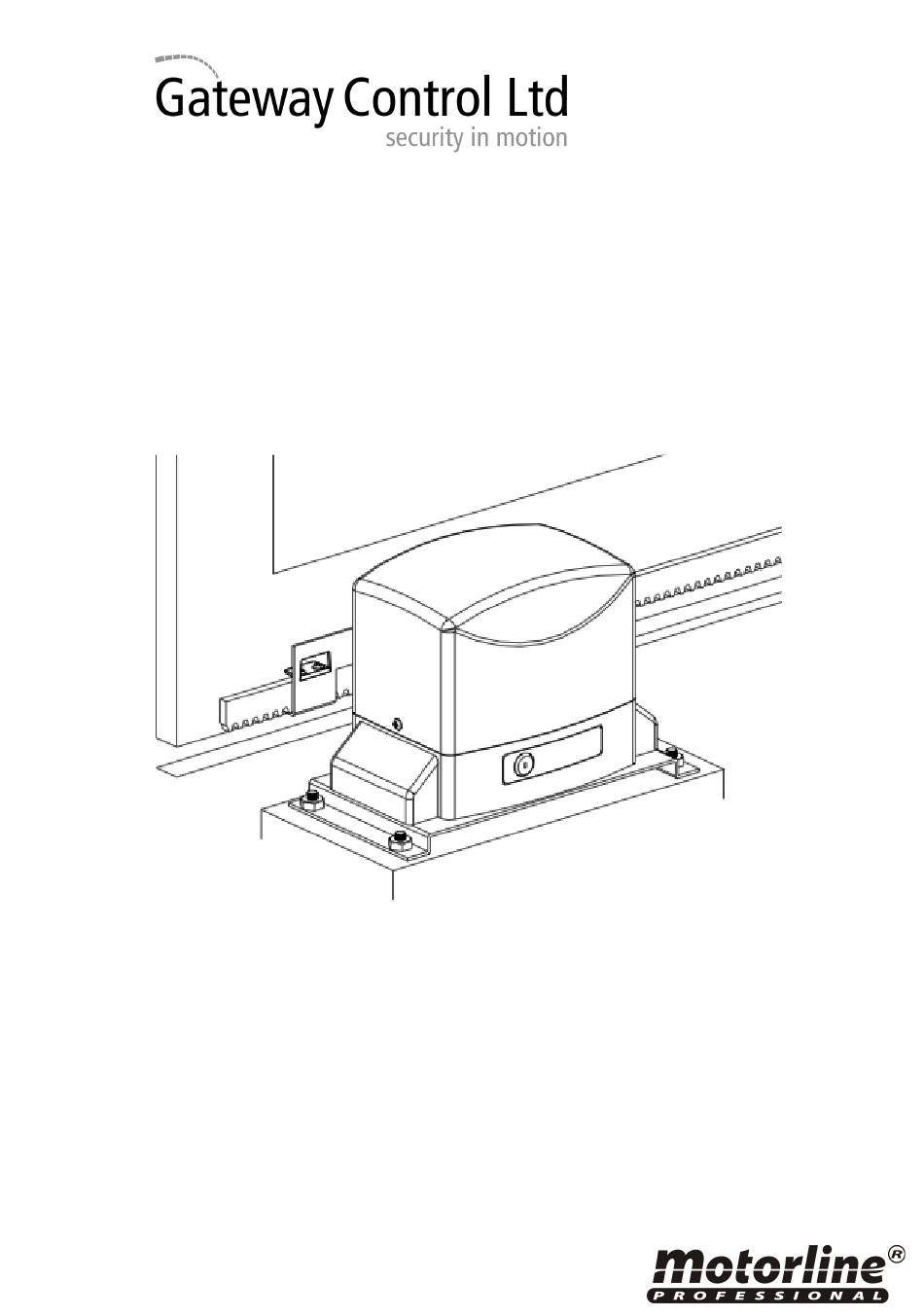

- Page 1 SLIDE 500 Operating and installation instructions 1 ...
- Page 2 General safety instructions and checklist This electric gate operator complies with European Directives: 89/336/EEC and 2006/95/CE and subsequent amendments. When installed correctly this electrically operated motor complies with all relevant safety standards. Please ensure the operating manual is fully read and understood before installation and operation. Installation should only be carried out by a competent and qualified person.
-
Page 3: Description Of Maintenance
Maintenance Description of maintenance Schedule Clean and check safety Photocells and functions Monthly Check free movement of gate manually Monthly Clean foliage or insects from gate or control box Monthly 1. Description The SLIDE 500 is an electro-mechanical sliding gate operator, designed to automate domestic sliding gates up to a maximum 7 metres wide and up to 500Kg in weight. -
Page 4: Technical Specifications
2. Technical Specifications 4 ... -
Page 5: Installation
3. Packaging 1. Slide 500 motor x 1 5. Foundation Plate x 1 2. Left Limit Switch plate x 1 6. Expanding bolts – not supplied 3. Right Limit switch plate x 1 7. Foundation plate nuts & bolts x 4 4. -
Page 6: Installation Diagram
Installation diagram Motor unit 7. Key switch On board control panel 8. Safety Photocell post Integral radio receiver 9. Safety Photocells Left Limit switch plate 10. Extra Radio Antenna Right Limit switch plate 11. Flashing warning light Drive Rack Note: Electric cabling should be run in suitable conduit or pipes. - Page 7 The foundation plate parallel to the sliding gate leaf, as set out in Fig.09 and 10 below Ensure the mains power cable is in the centre where the foundation plate is to be mounted. Bolt foundation plate to concrete (or set in concrete), making sure the power cable is fed up through cable hole as shown below.
- Page 8 Adjust the motor position to parallel with gate leaf and ensure the height is correct with drive cog and intended position of drive rack. 6. Secure motor into position Secure motor in position with fixing bolts, as Fig.15 Make wiring connections for power supply, motor connection and all accessories, as in accordance to control panel wiring instructions.
- Page 9 Fix motor lid in place (over mechanical limit device) and screw in place The Slide motor is supplied with plastic casings that fit over the fixings bolts. Check the manual release mechanism by inserting the manual release key into the key slot at the base of the motor.
- Page 10 7. Install Drive Rack Install the Drive Rack in accordance with manufacturers specification, ensuring there is sufficient spacing between drive rack teeth and the gate leaf. Carefully fix the Drive Rack in place so that the teeth sit neatly and centrally onto the Drive Cog of the Slide motor Manually move gate leaf open and closed to ensure that the gate still moves freely with no excessive friction.
- Page 11 9. Commission Once the system has been fully fitted and connected to control panel (MC1), the system needs to be fully commissioned and tested. It is recommended to have the sliding gate half open / closed on the first operation, just to ensure that the motor is running the right direction on the first command.
- Page 12 Declaration of Conformity & Installation Hand-over Gate type: (Swing / Slide etc) _________________________________________________________________________________ Manufacturer and model of gate: (including material of gate) _________________________________________________________________________________ Unique Serial No. (individual number given by installing company) Gate size: Operator manufacturer: Operator model / kit: Installation details and checklist: Electrical power supply tested Installed in accordance with manufacturers instructions...
- Page 13 Declaration of Conformity & Installation Hand-over Gate type: (Swing / Slide etc) _________________________________________________________________________________ Manufacturer and model of gate: (including material of gate) _________________________________________________________________________________ Unique Serial No. (individual number given by installing company) Gate size: Operator manufacturer: Operator model / kit: Installation details and checklist: Electrical power supply tested Installed in accordance with manufacturers instructions...
