AGB2N0CS-GEVK
AGB2N0CS-GEVK
Evaluation Board
User's Manual

Adapter Board Overview

The AGB2N0CS Adapter Board helps connect Demo 2×
headboards to the Demo 3 Baseboard, the AGB1N0CS−GEVK.
The Demo 3 uses a high-bandwidth USB 3.0 interface and HDMI
connector to send sensor image data to the host computer. It supports
single/double/quad MIPI interface, dual/quad lanes of HiSPi interface,
CCP, and parallel interface. Since the Demo 2× Headboards do not use
the same connector as the Demo 3, the AGB2N0CS provides
communication between the headboard parallel and serial connectors
to communicate with the Demo 3 Baseboard interface connection.

Features

Demo 2× Headboard Connectors
Parallel Data Buffer Option
MIPI/HiSPi Connectors
Demo 3 Baseboard Connector

Block Diagram

Power
Distribution
Parallel Data
16
Line Valid
Buffer/Driver
Frame Valid
Pixel Clock
Output
Enable
Control Signals
Master Clock
I
2
I
Serial Data
Serial Clock

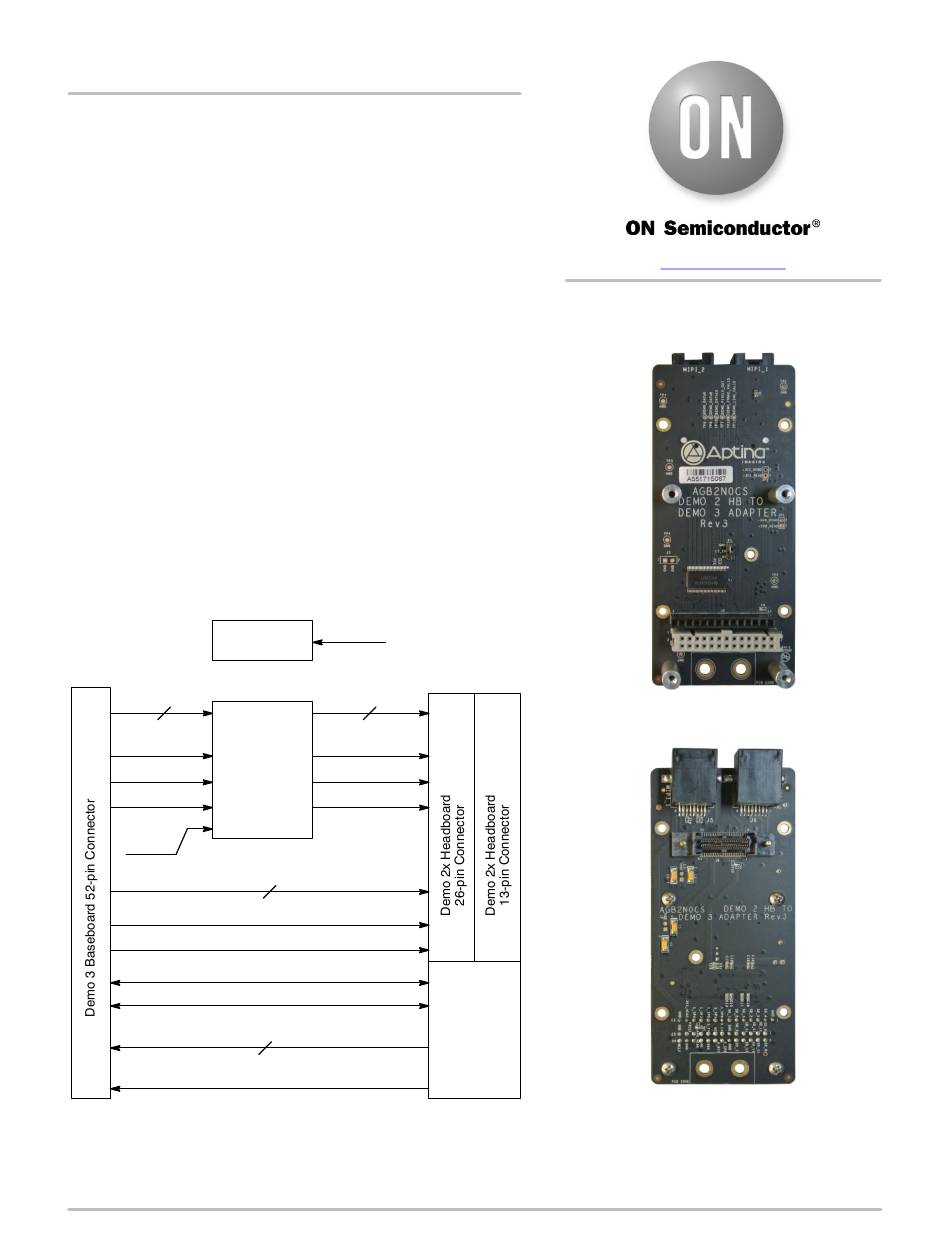

Figure 2. Block Diagram of AGB2N0CS−GEVK
© Semiconductor Components Industries, LLC, 2015
September, 2015 − Rev. 0
5 V from Demo 3
Connector
Parallel Data
16
Line Valid
Frame Valid
Pixel Clock
6
Reset
2
C Data
C Clock
4
EVAL BOARD USER'S MANUAL
®
Demo 2x
Headboard
MIPI/HiSPi
Connectors
Figure 1. AGB2N0CS Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2311/D
