AP0101AT2L00XPGAH-GEVB
AP0101AT Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2× system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 2× Controlled MClk
Two Wire Serial Interface
Parallel Interface
HiSPi (High Speed Serial Pixel) Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2015
September, 2015 − Rev. 0
Arrow.com.
Downloaded from

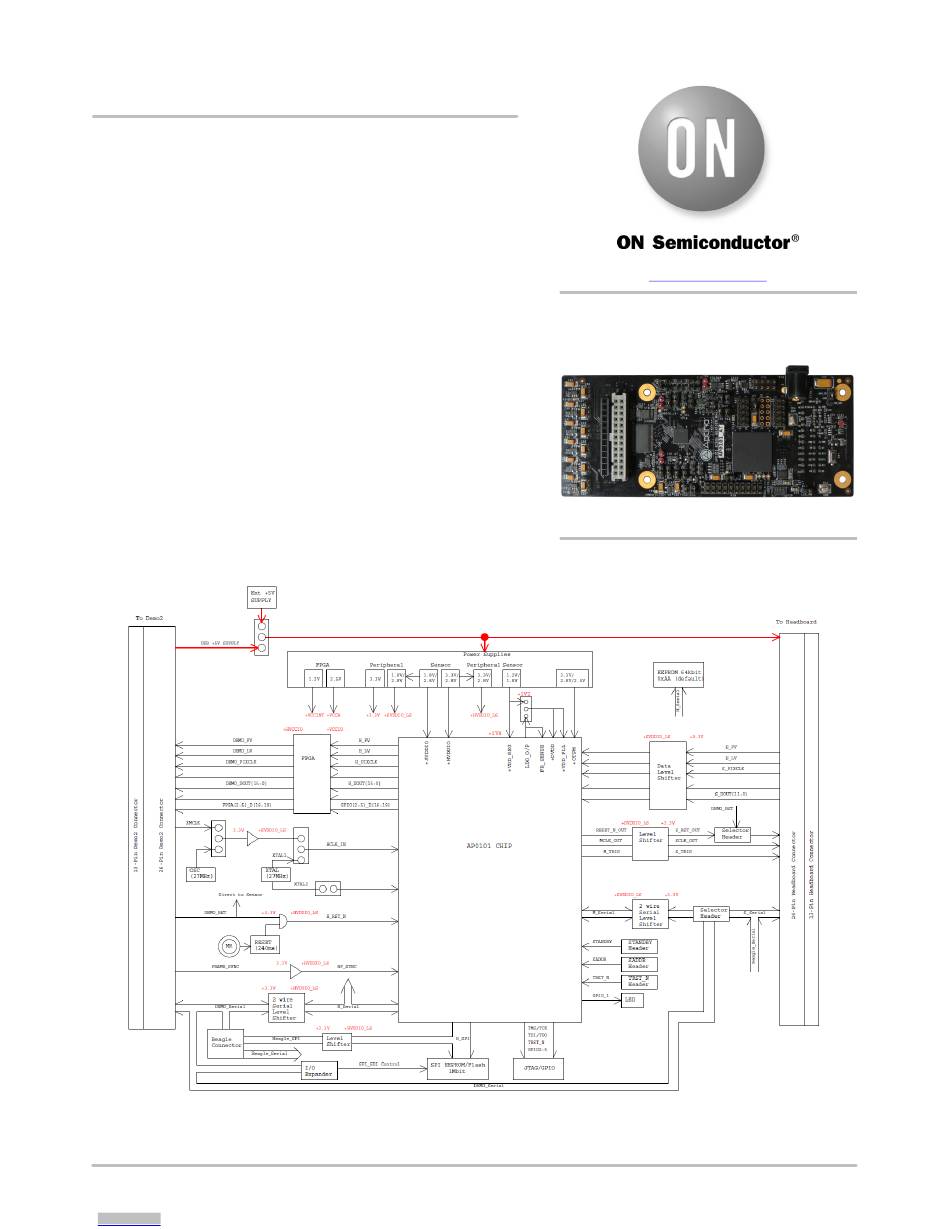

Figure 2. Block Diagram of AP0101AT2L00XPGAH−GEVB
www.onsemi.com
EVAL BOARD USER'S MANUAL

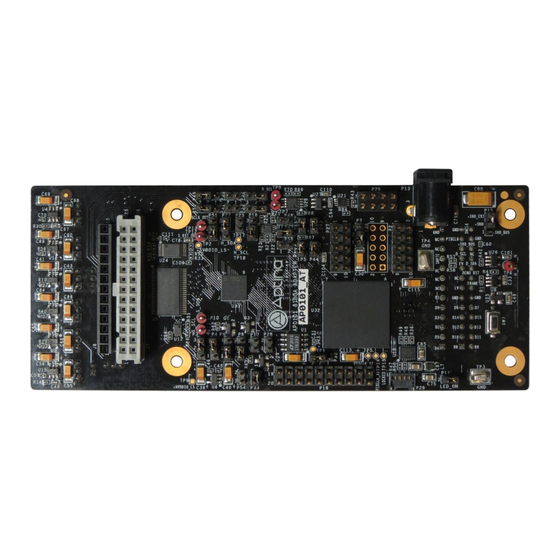

Figure 1. AP0101AT Evaluation Board
1
Publication Order Number:
EVBUM2315/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP0101AT and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor AP0101AT

  • Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com ON Semiconductor’s image sensors products. This headboard is intended to plug directly into the Demo 2× system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 AP0101AT2L00XPGAH−GEVB Top View Headboard Connector J8 Headboard Connector J7 BEAGLE_SDA P53 GPIO1_LED P8 SEN_RST_OUT P51 SEN_SDATA P50 SEN_CLK P30 SEN_SCLK P49 SADDR P4 STANDBY P6 OSC/XTAL Select P22, P23 FRAME_SYNC_BAR P54 BEAGLE_SCL P52 FRAME_SYNC P33 EEPROM ADDR P47, P48, P59 URAT Transceiver P28 SPI_EN P45 SPI_SDO/SDI P43...
  • Page 3 AP0101AT2L00XPGAH−GEVB Jumper Pin Location The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 AP0101AT2L00XPGAH−GEVB Table 1. JUMPERS AND HEADERS (continued) Jumper/Header No. Jumper/Header Name Pins Description +HVDDIO 1−2 (Default) Connects to On-Board +HVDDIO Power Supply 2−3 External Power Supply Connection +OTPM_VCC 1−2 (Default) Connects to On-Board +OTPM_VCC Power Supply 2−3 External Power Supply Connection +5V0 1−2 (Default) USB +5V0_BUS Power Supply Connection...
  • Page 5 When Pushed, 240 ms Reset Signal will be Sent to AP0101 Interfacing to ON Semiconductor Demo 2y Baseboard The ON Semiconductor 2× baseboard has a similar 26-pin of the headboard. The four mounting holes secure the connector and 13-pin connector which mate with J5 and J6 baseboard and the headboard with spacers and screws.
  • Page 6: Technical Support
