ARX3A0 - CSP35
ARX3A0 - CSP35 Evaluation
Board User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo3 system. Test points and
jumpers on the board provide access to the clock, I/Os and other
miscellaneous signals.

Features

Clock Input
Default − 27 MHz Crystal Oscillator
Optional Demo3 Controlled MClk
Two Wire Serial Interface
Selectable Base Address
2 Lane MIPI Interface
RoHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2020
November, 2020 − Rev. 0

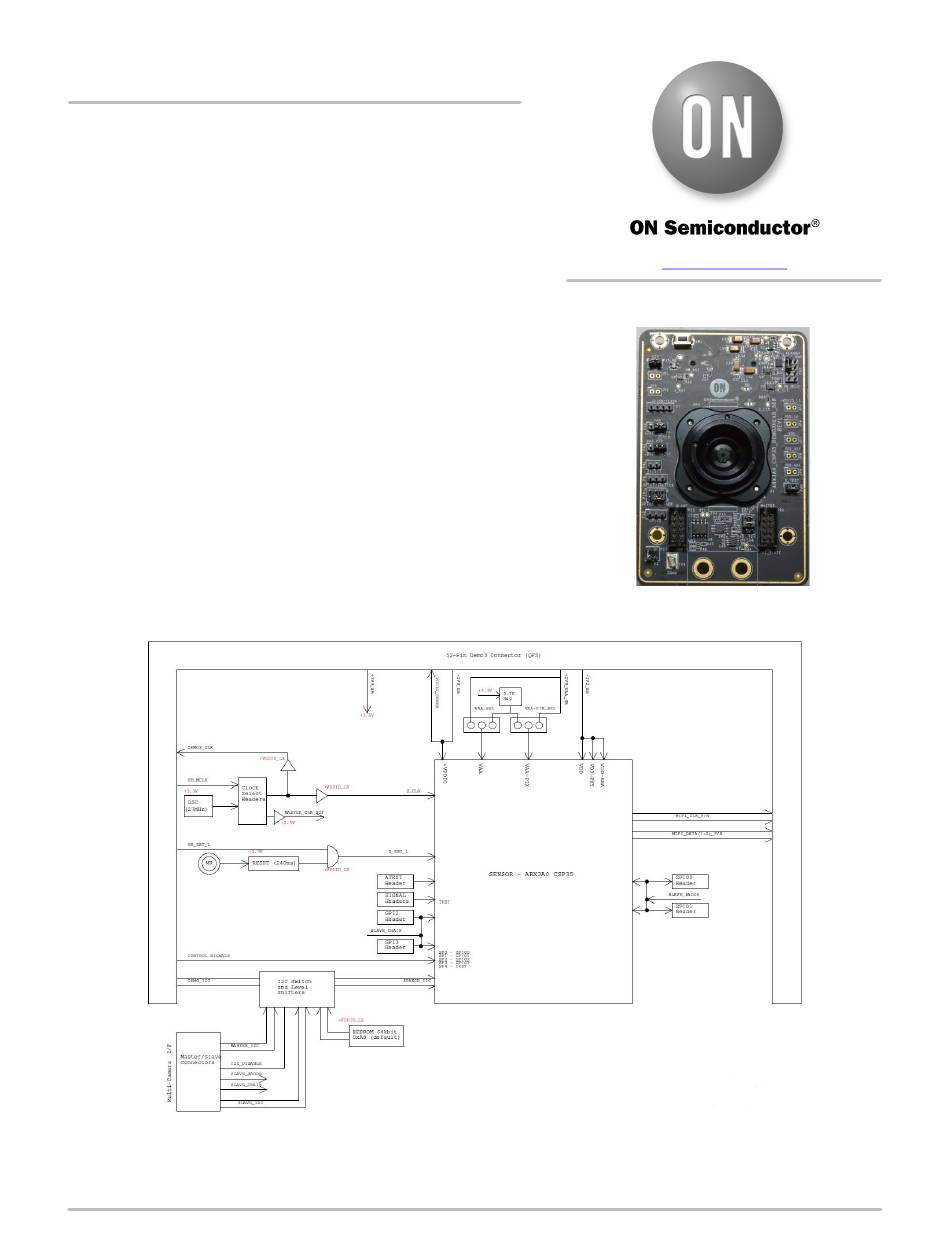

Figure 2. Block Diagram of ARX3A0 Evaluation Board
EVAL BOARD USER'S MANUAL
Figure 1. ARX3A0 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2783/D
