AP0100AT2L00XUGAH3-GEVB
AP0100AT Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 3 Controlled MClk
Two Wire Serial Interface
Parallel Interface
HiSPi (High Speed Serial Pixel) Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2015
October, 2015 − Rev. 0

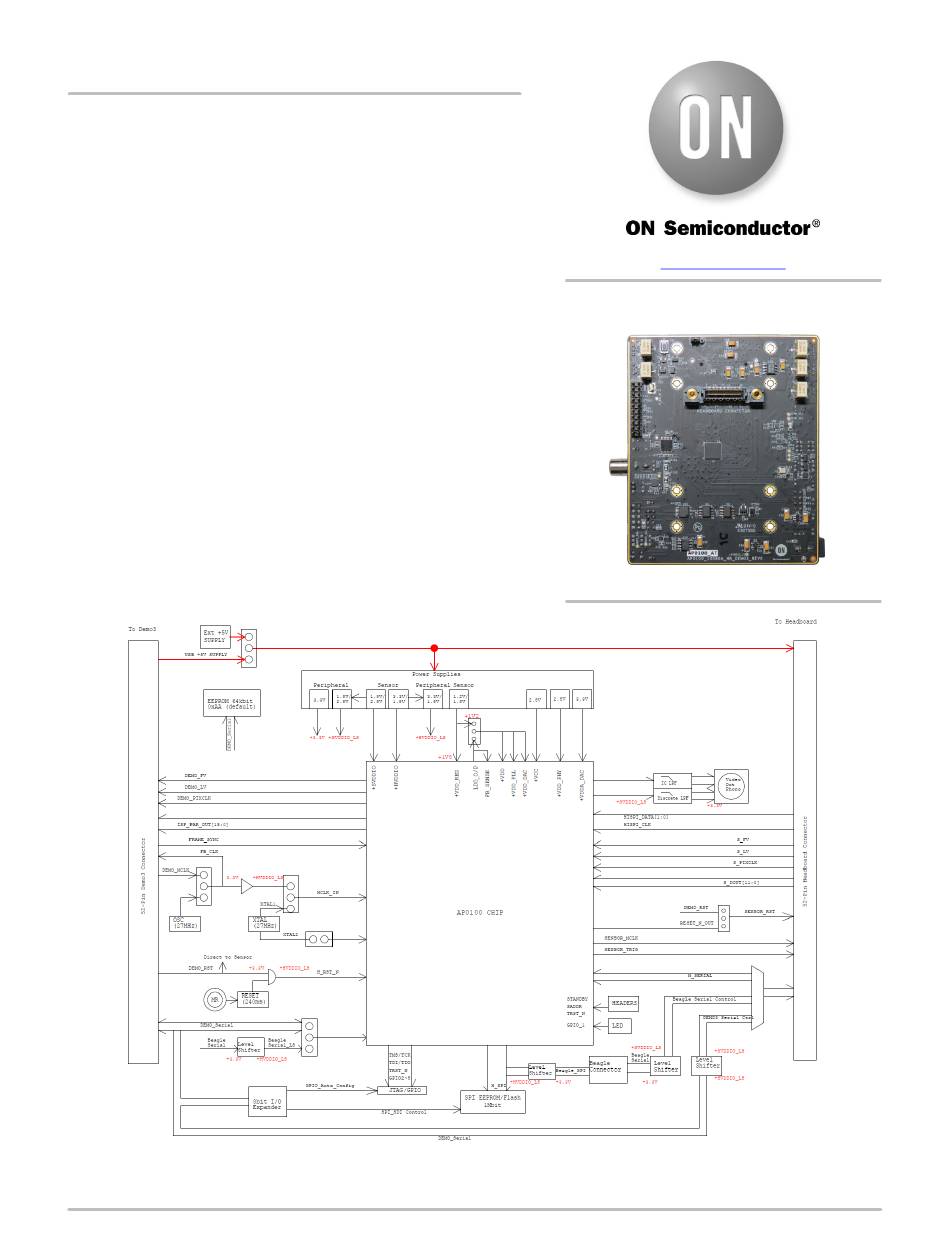

Figure 2. Block Diagram of AP0100AT2L00XUGAH3−GEVB
EVAL BOARD USER'S MANUAL

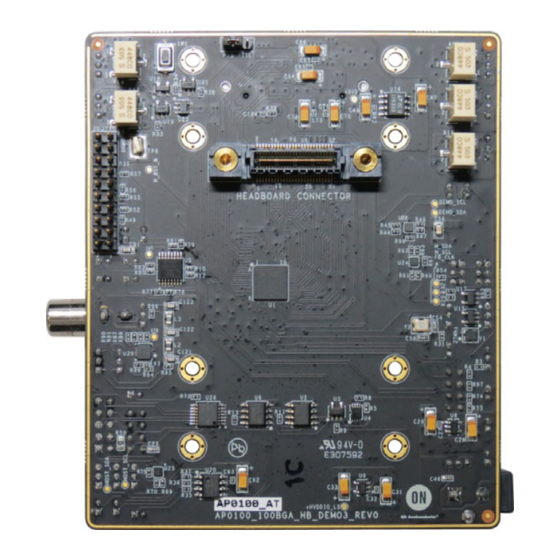

Figure 1. AP0100AT Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2321/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP0100AT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ON Semiconductor AP0100AT

  • Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com ON Semiconductor’s image sensors products. This headboard is intended to plug directly into the Demo 3 system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 AP0100AT2L00XUGAH3−GEVB Top View SEN_RST_OUT P32 RESET Switch SW1 Headboard Connector P6 Figure 3. Top View of the Board with Default Jumpers Bottom View +AVDD P13 +2V8_VDDPHY P48 Demo 3 Connector J1 +VCC P18 +3V3_VDDADAC P47 +HVDDIO P15 SHUTDOWN P25 XTAL_SEL P27 MCLK_IN P26 SEN_SDATA P33, P34 C GPIO ADDR P45, P46...
  • Page 3 AP0100AT2L00XUGAH3−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 AP0100AT2L00XUGAH3−GEVB Table 1. JUMPERS AND HEADERS (continued) Jumper/Header No. Jumper/Header Name Pins Description +VCC 1−2(Default) Connects to On-Board +VCC Power Supply 2−3 External Power Supply Connection +5V0 1−2(Default) Connects to On-Board +5.0 V Power Supply 2−3 External Power Supply Connection CLK_SELECT 1−2(Default) Selects On-Board 27 MHz Oscillator...
  • Page 5 When Pushed, 240 ms Reset Signal will be Sent to AP0100 Chip Interfacing to ON Semiconductor Demo 3 Baseboard The ON Semiconductor Demo 3 headboard has a similar 52-pin connector which mates with J1 of the adapter board. 52-pin connector which mates with P6 of the adapter board.
