AP0101AT2L00XPGAH3-GEVB
AP0101AT Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

•
Clock Input
Default – 27 MHz Crystal Oscillator
♦
Optional Demo 3 Controlled MClk
♦
•
Two Wire Serial Interface
•
Parallel Interface
•
HiSPi (High Speed Serial Pixel) Interface
•
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2015
October, 2015 − Rev. 0
Figure 2. Block Diagram of AP0101AT2L00XPGAH3−GEVB
EVAL BOARD USER'S MANUAL

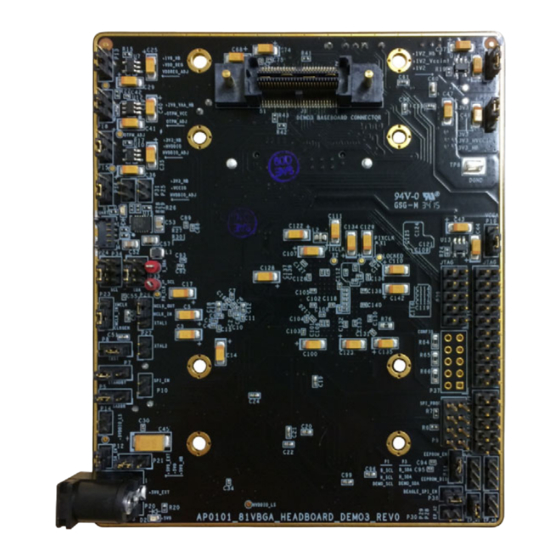

Figure 1. AP0101AT Evaluation Board
