ASX340CS2C00SPEAH3-GEVB
ASX340CS
Evaluation Board
User's Manual

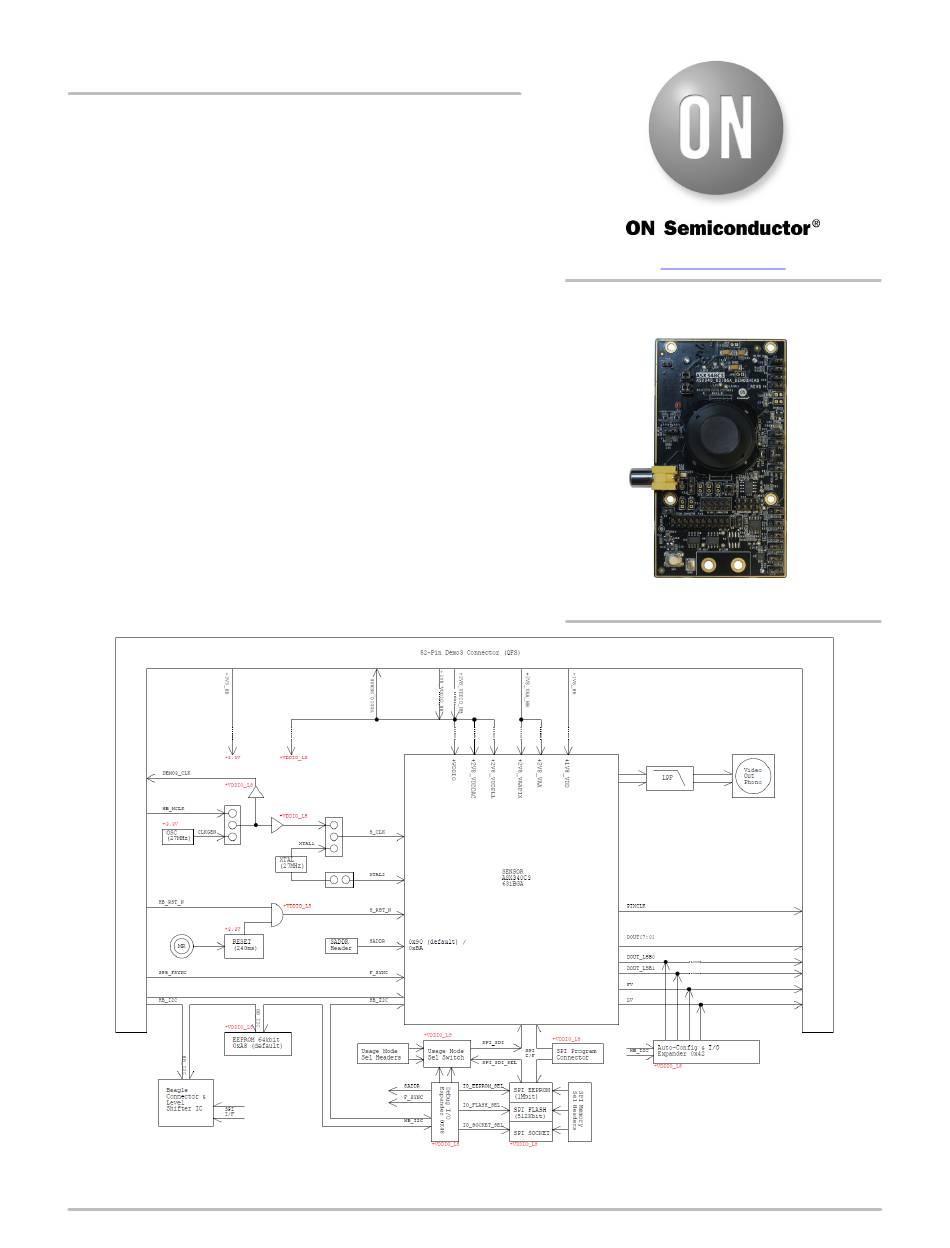

Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 3 Controlled MClk
Two-wire Serial Interface
Selectable Base Address
Parallel Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
April, 2016 − Rev. 0
Figure 2. Block Diagram of ASX340CS2C00SPEAH3−GEVB
EVAL BOARD USER'S MANUAL

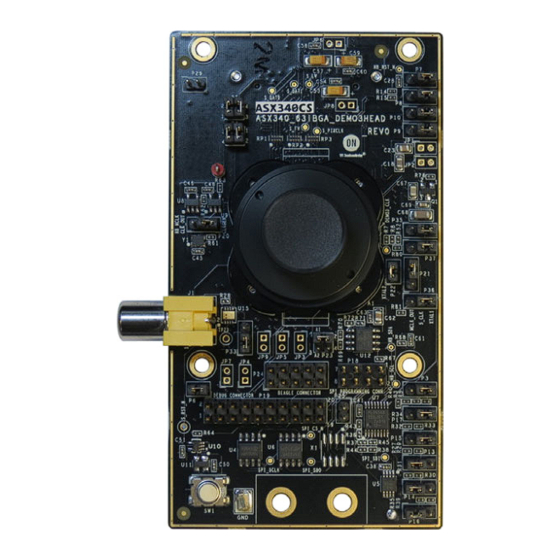

Figure 1. ASX340CS Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2405/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASX340CS and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor ASX340CS

  • Page 1 EVAL BOARD USER’S MANUAL The evaluation boards are designed to demonstrate the features of image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 3 system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 ASX340CS2C00SPEAH3−GEVB Top View GPI_LSB0 P7 GPI_LSB1 P8 DOUTLSB P5 GPI_LV P10 GPI_FV P9 ATEST1 P4 CLK_SELECT P20 +VDD EXT P35 EEPROM ADDR P23 GPIO12 P37 +VDDIO P33 OSC/XTAL_SEL P21, P22 GPIO13 P36 BEAGLE I/F P24 SPI Program P18 TRST_N P6 SADDR P3 JTAG I/F P19 SPI_SOCKET_SELECT P17...
  • Page 3 ASX340CS2C00SPEAH3−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 ASX340CS2C00SPEAH3−GEVB Table 1. JUMPERS AND HEADERS (continued) Jumper/Header No. Jumper/Header Name Pins Description S_CONFIG 2−3 (Default) Sensor Operating in AUTO Mode 1−2 Sensor Operating in HOST Mode SPI_FLASH_SELECT 1−2 (Default) SPI FLASH (512 Kbit) Selected 2−3 SPI FLASH (512 Kbit) Not Selected S_CONFIG_FLASH 2−3 (Default) Sensor Operating in Host/Auto CONFIG Mode...
  • Page 5 ASX340CS2C00SPEAH3−GEVB Interfacing to ON Semiconductor Demo 3 Baseboard Table 2. SHORTED JUMPERS FOR POWER The ON Semiconductor Demo 3 baseboard has a similar MEASUREMENT 52-pin connector which mates with J2 of the headboard. Jumper Voltage (V) The four mounting holes secure the baseboard and the JP1 (+2V8_VAA) headboard with spacers and screws.
  • Page 6: Additional Information

    onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
