Summary of Contents for ALTAI C260

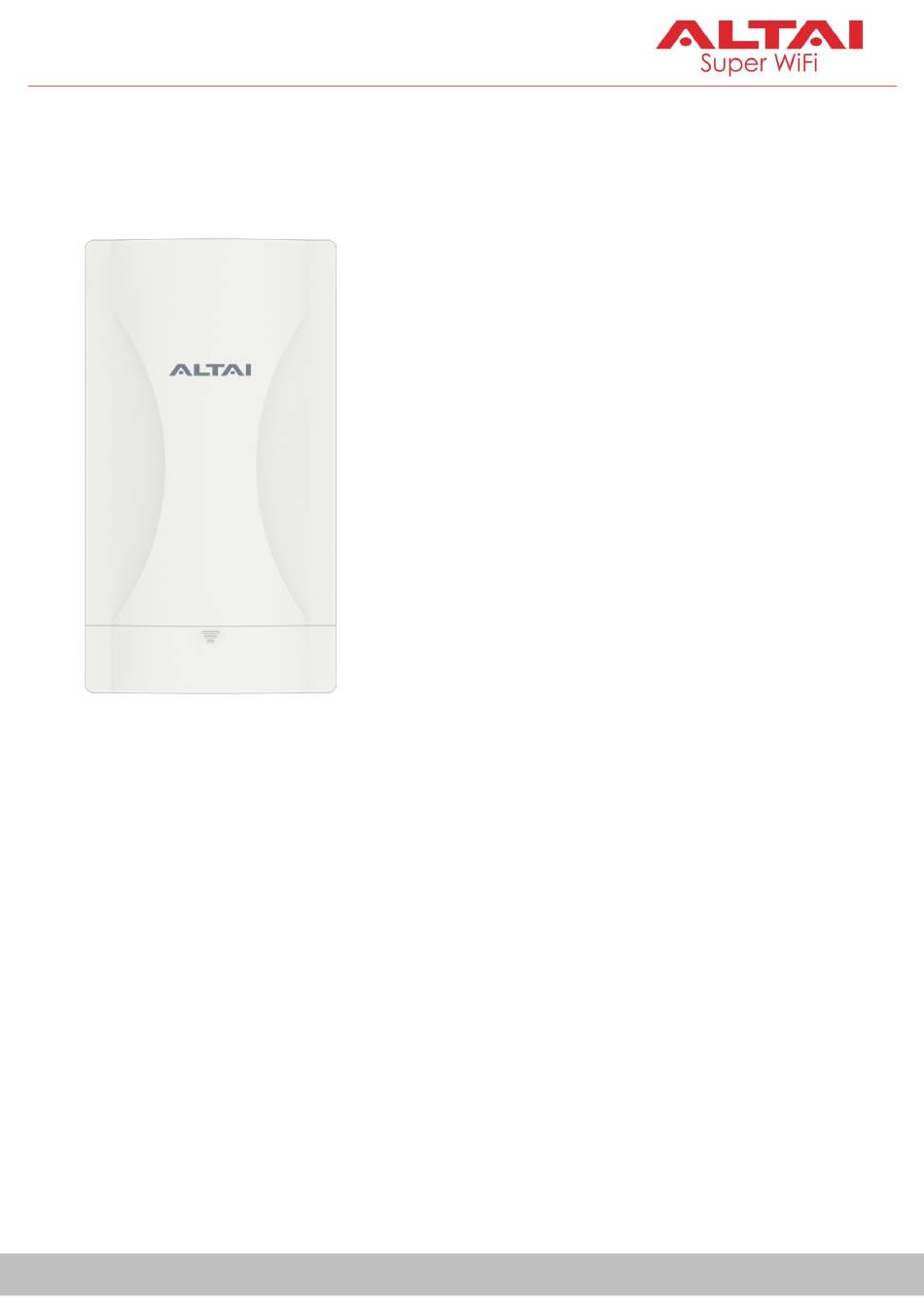

- Page 1 Quick Setup Guide Altai C260 2x2 802.11ax Super Wi-Fi AP/CPE _________________________________________________ Quick Setup Guide Version 0.1 Altai Technologies Ltd. All rights reserved...
-
Page 2: Package Contents
Quick Setup Guide Introduction Thank you for purchasing the Altai C260 product. This guide provides instructions to install the product and set it up as AP with minimal effort. Package Contents C260 Main Unit x Screws Cable Tie Back Cover... -
Page 3: Hardware Overview
Data Transmitting/Receiving on 2.4G, but Repeater/Bridge) no connection with Client/Remote AP/Remote Peer for 5G Alternate Flashing Data Transmitting/Receiving on 5G, but no connection with Client/Remote AP/Remote Peer for 2.4G Alternate Flashing Data Transmitting/Receiving on both 2.4G and 5G Altai Technologies Ltd. All rights reserved... - Page 4 Red LED Indicator Reset Button for 2-3 seconds Reboot Factory Reset until the LED blinks once • Factory Reset: Press and hold Reset Button 0s 1-2s 5-8s seconds until the LED blinks twice consecutively. Altai Technologies Ltd. All rights reserved...
- Page 5 Ethernet Cable (Data) 1. Connect the power adapter to the C260, then plug it into an AC outlet. 2. Connect a computer to the C260 with an Ethernet cable. 3. Make sure the LED indicator turns into a solid light for AP configuration.
- Page 6 For Windows 7 users, 1. Go to Control Panel, click Network and Sharing Center and then choose the adapter that you want to connect to C260 unit. In this example, adapter C260. Click it and then click “Local Area Connection” is in connection with Properties.
- Page 7 192.168.188.X (X can be any number between 2 to 252) 2. Login page will come up and you are required to enter username and password. By default, the credentials are: Username : admin • : admin • Password 3. Click Login. Altai Technologies Ltd. All rights reserved...
- Page 8 1. Make sure select AP Mode. 2. By default it's in thin AP Mode page. You need to click the symbol in the upper right corner of the page to switch to fat AP mode. Altai Technologies Ltd. All rights reserved...
- Page 9 4. Click the AP mode setting page, select " Get IP from AC" , and select " Next" . 5. Enter WiFi Configuration page and set the parameters as shown below: Scenario. SSID should broadcast from IX500 and can be seen in the computer for wireless connection. Altai Technologies Ltd. All rights reserved...
- Page 10 AP to achieve internet access. 2. Status check: Manually set the IP address of the PC to 192.168.188. X to access management page of the wireless AP and view the status, as shown above. Altai Technologies Ltd. All rights reserved...
- Page 11 IP address for internet access. 2. AP mode: NAT, DHCP, firewall and all WAN-related functions will be turned off . All wireless interfaces and wired interfaces are bridged together, without distinguishing between LAN and WAN. Altai Technologies Ltd. All rights reserved...
- Page 12 36cm between the radiator & your body. European Conformity (CE) – EU This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Altai Technologies Ltd. All rights reserved...
- Page 13 Operations in the 5.15-5.25 GHz band are restricted to indoor usage only. Disclaimer All specifications are subject to change without prior notice. Altai Technologies assumes no responsibilities for any inaccuracies in this document or for any obligation to update information in this document. This document is provided for information purposes only.
