Summary of Contents for ALTAI CX200
-

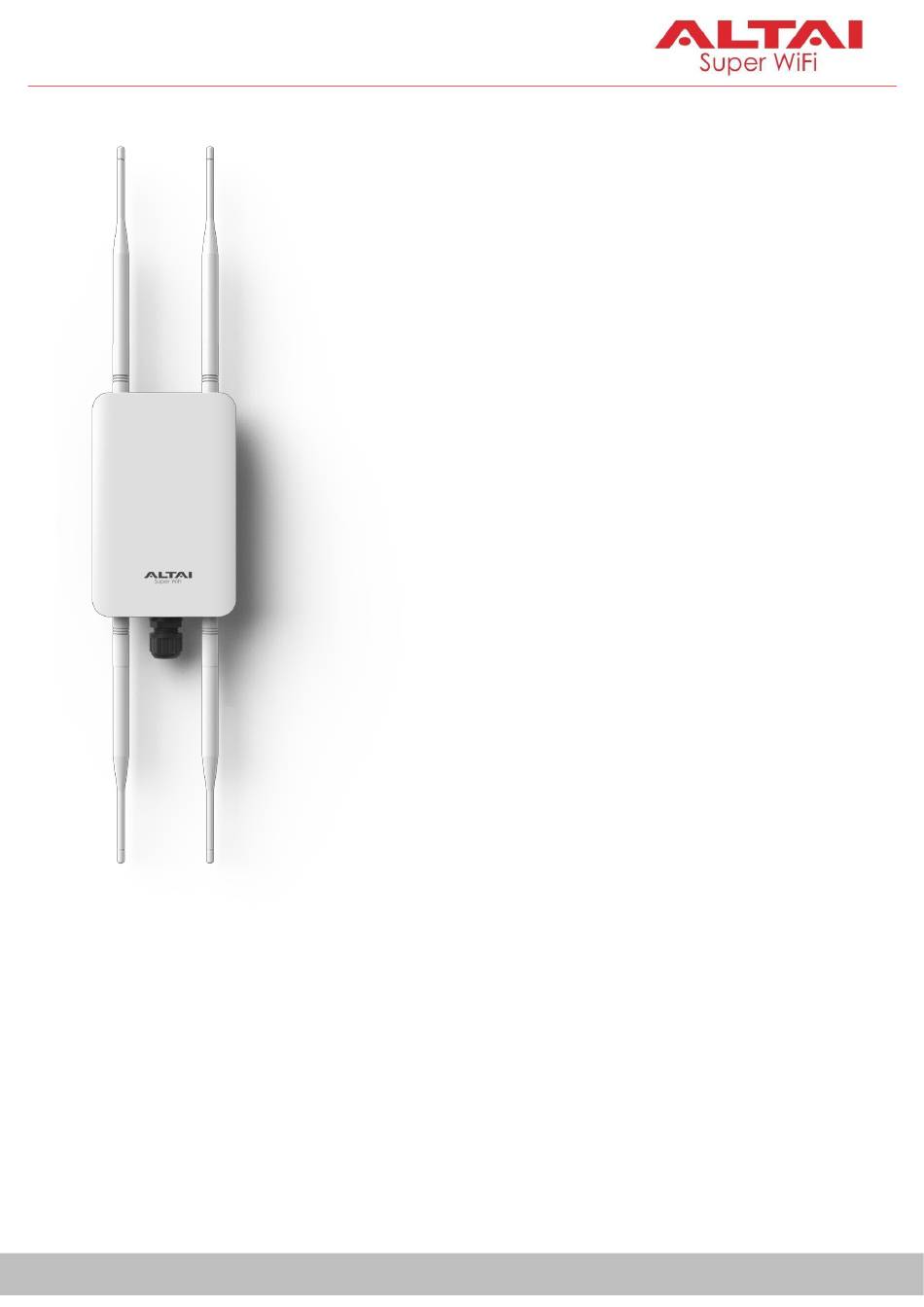

Page 1: Quick Setup Guide
Quick Setup Guide Altai CX200 Outdoor 2x2 8 0 2 . 1 1 a c W a v e 2 AP _________________________________________________ Quick Setup Guide Version 1.1 Altai Technologies Ltd. All rights reserved... -
Page 2: Package Contents
Quick Setup Guide Introduction Thank you for purchasing the Altai CX200 product. This guide provides instructions to install the product and set it up as AP with minimal effort. Package Contents Detachable Antennae - 2.4GHz Antenna x 2 CX200 Main Unit... -
Page 3: Hardware Overview
2. Station mode on but not connected to remote AP; OR 3. Repeater mode on but not connected to remote AP; OR 4. Bridge mode on but not connected to remote peer Flashing Green Data transmitting/receiving Altai Technologies Ltd. All rights reserved... - Page 4 Used to connect to power source (see the Power Options in the later section) and provides 10/100/1000 Mbps network interface for LAN connection. RF Antenna Ports: Used to attach 2.4G and 5G antennae for 2x2 MIMO WiFi access coverage or bridge connection. Altai Technologies Ltd. All rights reserved...
-
Page 5: Setup Preparation
Crimp Ethernet connector with the crimping tool. RJ45 Connector Connect the cable to the Sealing Sleeve Ethernet Port. Sleeve Holder Cap Nut Tighten the cap nut. Altai Technologies Ltd. All rights reserved... -
Page 6: Mounting Options
Thread the open end of the hose clamp through the two slots of the mount base. Determine where the AP is to be placed. Tighten the hose clamp to secure the base to the pole. Altai Technologies Ltd. All rights reserved... - Page 7 1” (26mm) deep, on the markings. Remove the label. Drive the anchors into the holes and then the screws into the anchors. Align the mounting slots with the screw heads and attach the AP to the wall in place. Altai Technologies Ltd. All rights reserved...
- Page 8 Quick Setup Guide Power Options and Cable Connection Instructions You can follow one of the options below for CX200 configuration as described in the following sections. Option 1: 802.3at-Compliant PoE switch 1. Connect the CX200 Ethernet port 802.3af-compliant switch with an Ethernet Cable.
- Page 9 For Windows 7/8/10 users, 1. Go to Control Panel, click Network and Sharing Center and then choose the adapter that you want to connect to CX200 unit. In this example, adapter “Local Area Connection” is in connection with CX200. Click it and then click Properties.
- Page 10 1. Open a web browser. Type 192.168.1.222 in the address bar and then hit Enter. 2. Login page will come up and you are required to enter username and password. By default, the credentials are: Username: admin Password: admin 3. Click Login. Altai Technologies Ltd. All rights reserved...
- Page 11 1. Make sure the box of Enable Radio is checked. Select AP mode for the field of Radio Mode. Then click Submit. 2. Click WLAN and click More… in Detail of WLAN 0 to go to another page for SSID and security configuration. Altai Technologies Ltd. All rights reserved...
- Page 12 8~64 characters or numbers in Pass Phrase and click Submit. 5. Click Save & Apply at the top right corner to have all changes take effect. 6. Hook up the CX200 as shown in Network Scenario. SSID should broadcast from CX200 and can be seen in the computer for wireless connection.
- Page 13 CX200_1 (AP) CX200_2 (AP) Router 1. You can manage your CX200 and set up hotspot service for the subscribers with AltaiCare, which is a cloud-based system. 2. Go to Configuration > Network > General. Select Switch Mode for Network Setting and make sure the CX200 can reach Internet and communicate with AltaiCare by inputting valid IP settings either via DHCP or with Static IP configuration.
- Page 14 6. Follow AltaiCare Quick Start Guide and register the CX200 in the system for AP management and user service and admission control. 7. CX200 will appear as online in AltaiCare AP list if the connection is successful.
- Page 15 Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Altai Technologies Ltd. All rights reserved...
- Page 16 European Conformity (CE) – EU This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Altai Technologies Ltd. All rights reserved...
- Page 17 Quick Setup Guide Warning Only use the power adaptor supplied with CX200. Using a different power adaptor might damage the device. Disclaimer All specifications are subject to change without prior notice. Altai Technologies assumes no responsibilities for any inaccuracies in this document or for any obligation to update information in this document. This document is provided for information purposes only.
