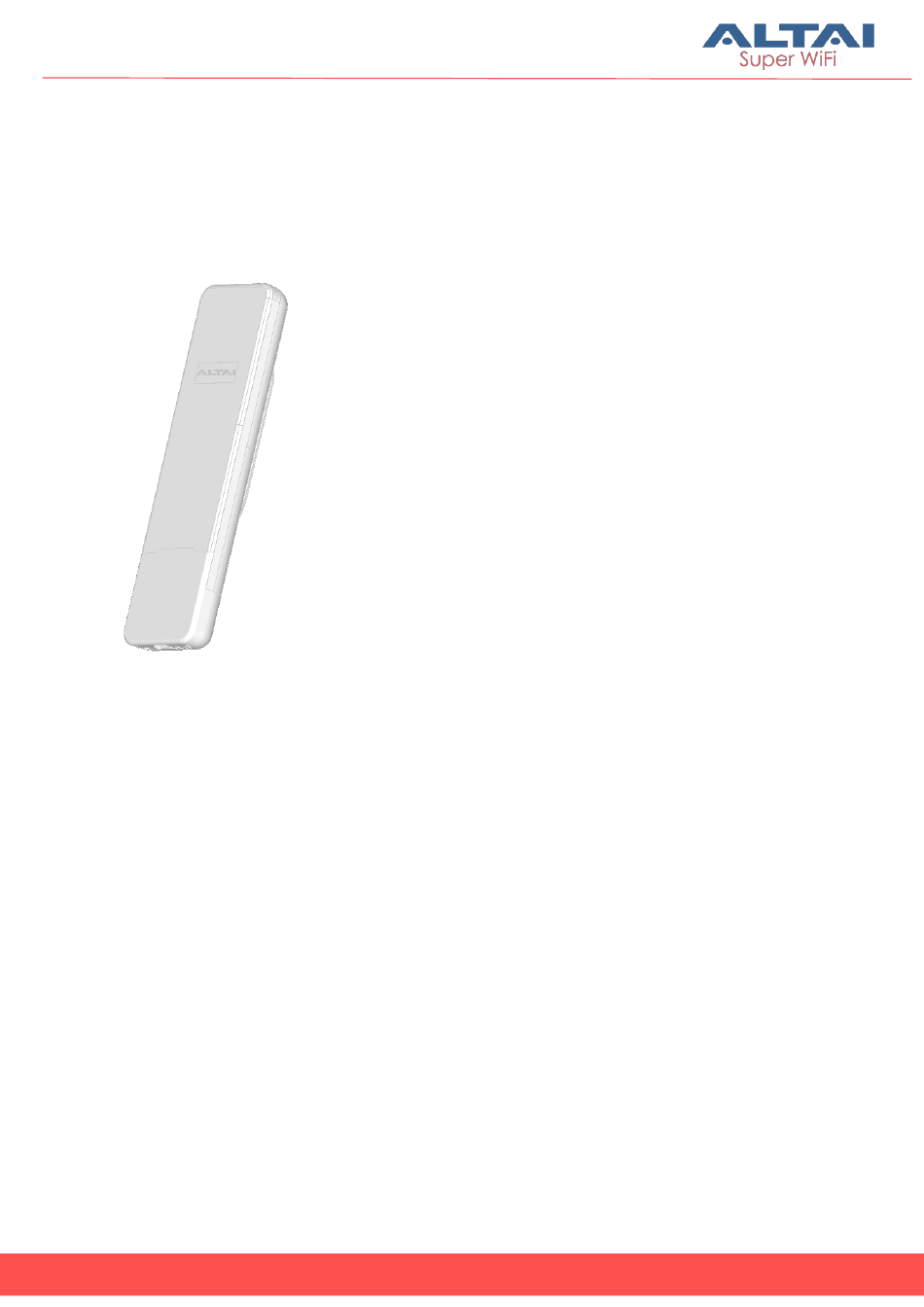

Page 1: Quick Setup Guide

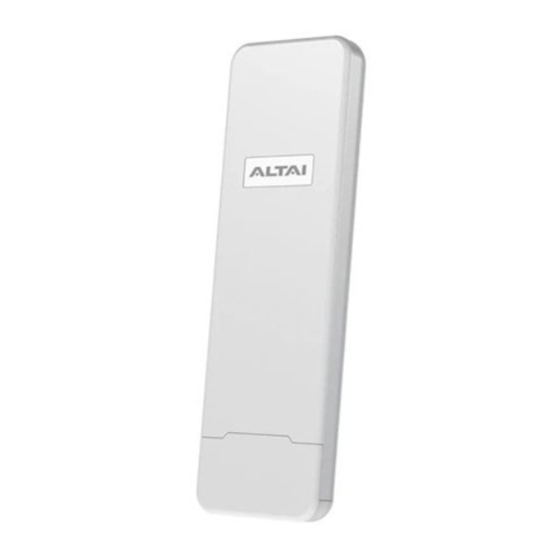

Quick Setup Guide Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Model number: C2-2221-000 _________________________________________________ Quick Setup Guide Version 1.1 Altai Technologies Ltd. All rights reserved... -
Page 2: Package Contents
Quick Setup Guide Introduction Thank you for purchasing the Altai C2s. This guide will provide instructions to install the product and set it up as AP or Station with minimal effort. For details, refer to Installation Guide and Configuration Manual which are both available at our Technical Library of http://www.altaitechnologies.com. -
Page 3: Hardware Overview
ETH1: It provides 10/100/1000 Mbps network interface for LAN connection with peripherals. Reset Button: It serves two functions for C2s operation: Power LED Reboot: Press and hold the Reset Button for 2-3 seconds until the Power LED blink once. -
Page 4: Mounting Options
60mm surface. 2. Drill mounting holes on the marked locations. The two holes should be 60mm (2.3 inches) apart. 3. Fasten the device to the wall using the mounting anchors and screws provided. Altai Technologies Ltd. All rights reserved... - Page 5 4. Make sure the Power LED light is yellow and ETH 0 LED light is blue/green. Option 2: 802.3at-compliant PoE switch / PoE Injector 1. Connect C2s ETH0 port to an 802.3at to Passive PoE Adapter’s 802.3at- “PWR+DATA” port with an Ethernet Compliant PoE Cable.
- Page 6 For Windows 7 users, 1. Go to Control Panel, click Network and Sharing Center and then choose the adapter that you want to connect to C2s unit. In this example, adapter “Local Area Connection 2” is in connection with C2s. Click it and then click Properties.
- Page 7 1. Open a web browser. Type 192.168.1.222 in the address bar and then hit Enter. 2. Login page will come up and administrators are required to enter username and password. By default, the credentials are: Username: admin Password: admin 3. Click Login. Altai Technologies Ltd. All rights reserved...
- Page 8 2. Make sure the box of Enable Radio is checked. Select AP mode for the field of Radio Mode. Then click Submit. 3. Click WLAN and click More… in Detail of WLAN 0 to go to another page for SSID and security configuration. Altai Technologies Ltd. All rights reserved...
- Page 9 6. Click Save & Apply at the top right corner to have all changes take effect. 7. The SSID should now be broadcast from C2s and can be seen in the computer for wireless connection. Altai Technologies Ltd. All rights reserved...
- Page 10 Below screenshots show an example for 5G radio configuration only. Same procedures can be followed and applied to 2.4G radio configuration. 2. Make sure the box of Enable Radio is checked. Select Station mode for the field of Radio Mode. Then click Submit. Altai Technologies Ltd. All rights reserved...
- Page 11 SSID and configure security settings. 4. Click Scan in Remote SSID. 5. Check the box for the preferred SSID and click Select at the bottom of AP Scan Result table and go to the previous page automatically. Altai Technologies Ltd. All rights reserved...
- Page 12 8. Go to Status > Radio1(5G) > Connection Info and check the link status. It should show “Connected” if the connection is successful; Otherwise, double check the security settings as described in Step 6. Altai Technologies Ltd. All rights reserved...
- Page 13 C2s_2 (AP) Local Gateway 1. Users can manage their C2s and set up their hotspot service for subscribers with AltaiCare, which is a cloud-based system. 2. Go to Configuration > Network > General. Make sure C2s can reach Internet and communicate with AltaiCare by inputting valid IP settings either via DHCP or with Static IP configuration.
- Page 14 6. Follow AltaiCare Quick Start Guide and register the C2s in the system for access management of AP and user service and admission control. 7. C2s will appear as online in AltaiCare AP list if the connection is successful. Altai Technologies Ltd. All rights reserved...
-
Page 15: Federal Communication Commission (Fcc) - Usa
C2s may require professional installation depending on the deployment scenario. Only use the power adaptor supplied with C2s. Using a different power adaptor might damage C2s. Install a lightning arrestor to protect the AP for lightning dissipation during rainstorms. Lightning arrestors are mounted outside the structure and must be grounded by means of a ground wire to the nearest ground rod or item that is grounded. - Page 16 Quick Setup Guide Copyright © 2016 Altai Technologies Limited ALL RIGHTS RESERVED. Altai Technologies Limited Unit 209, 2/F, Lakeside 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Telephone: +852 3758 6000 Fax: +852 2607 4021 Web: www.altaitechnologies.com...
