Page 1: Quick Setup Guide

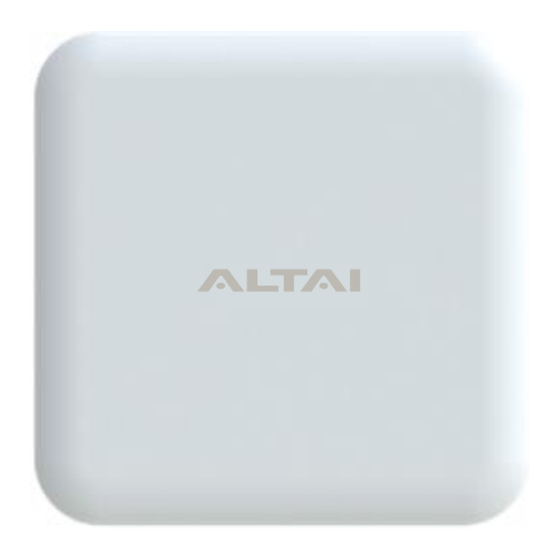

Quick Setup Guide ALTAI IX500 Indoor 2x2 8 0 2 . 1 1 a c W a v e 2 A P _________________________________________________ Quick Setup Guide Version 1.0 Altai Technologies Ltd. All rights reserved... -
Page 2: Package Contents
Quick Setup Guide Introduction Thank you for purchasing the ALTAI IX500 product. This guide provides instructions to install the product and set it up as AP with minimal effort. Package Contents Ceiling Mount Base Ceiling Mount Base IX500 Main Unit (15/16”... -
Page 3: Hardware Overview
Alternate Flashing Data Transmitting/Receiving Yellow & Red 2.4G and 5G Solid White AP/Station/Repeater/Bridge Mode on but with no Radios Enabled connection with Client/Remote AP/Remote Peer (AP/Station/ Alternate Flashing Data Transmitting/Receiving Repeater/Bridge) Purple, Yellow & Red Altai Technologies Ltd. All rights reserved... - Page 4 Red LED Indicator Reset Button for 2-3 seconds Reboot Factory Reset until the red LED blinks once. Factory Reset: Press and hold Reset Button 0s 1-2s 5-8s seconds until the red LED blinks twice consecutively. Altai Technologies Ltd. All rights reserved...
-
Page 5: Mounting Options
AP. Insert an appropriately sized ceiling rail into one of the mount base slots first. Then turn the AP slightly so that the rail slips into another slot to lock the AP into place. Altai Technologies Ltd. All rights reserved... - Page 6 (26mm) deep. Screw the anchors into the holes and then insert the screws through the mount base to the anchors to attach the base to the wall. Slide the base into the slot of the AP. Altai Technologies Ltd. All rights reserved...
- Page 7 Slide the base into the slot of the AP. Determine where the AP is to be placed. Tighten the cable tie to secure the base to the pole. Altai Technologies Ltd. All rights reserved...
- Page 8 (Data) 802.3af/802.at – Compliant PoE Switch 1. Connect the IX500 Ethernet port to an 802.3af/802.at-compliant PoE switch with an Ethernet Cable. 2. Connect a computer to the switch. 3. Make sure the LED indicator turns into a solid light for AP configuration.
- Page 9 For Windows 7 users, 1. Go to Control Panel, click Network and Sharing Center and then choose the adapter that you want to connect to IX500 unit. In this example, adapter “Local Area Connection” is in connection with IX500-S. Click it and then click Properties.
- Page 10 1. Open a web browser. Type 192.168.1.222 in the address bar and then hit Enter. 2. Login page will come up and you are required to enter username and password. By default, the credentials are: Username: admin Password: admin 3. Click Login. Altai Technologies Ltd. All rights reserved...
- Page 11 1. Make sure the box of Enable Radio is checked. Select AP mode for the field of Radio Mode. Then click Submit. 2. Click WLAN and click More… in Detail of WLAN 0 to go to another page for SSID and security configuration. Altai Technologies Ltd. All rights reserved...
- Page 12 8~64 characters or numbers in Pass Phrase and click Submit. 5. Click Save & Apply at the top right corner to have all changes take effect. 6. Hook up the IX500 as shown in Network Scenario. SSID should broadcast from IX500 and can be seen in the computer for wireless connection.
- Page 13 IX500_1 (AP) IX500_2 (AP) Router 1. You can manage your IX500 and set up hotspot service for the subscribers with AltaiCare, which is a cloud-based system. 2. Go to Configuration > Network > General. Select Switch Mode for Network Setting and make sure the IX500 can reach Internet and communicate with AltaiCare by inputting valid IP settings either via DHCP or with Static IP configuration.
- Page 14 6. Follow AltaiCare Quick Start Guide and register the IX500 in the system for AP management and user service and admission control. 7. IX500 will appear as online in AltaiCare AP list if the connection is successful.
- Page 15 European Conformity (CE) – EU This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Altai Technologies Ltd. All rights reserved...
- Page 16 Wong's International USA Corp. 2905 Stender Way, Ste. 52, Santa Clara, CA 95054, USA Contact person: Mr. Lawrence Tan Email: lawrence.tan@wihl.us.com...
