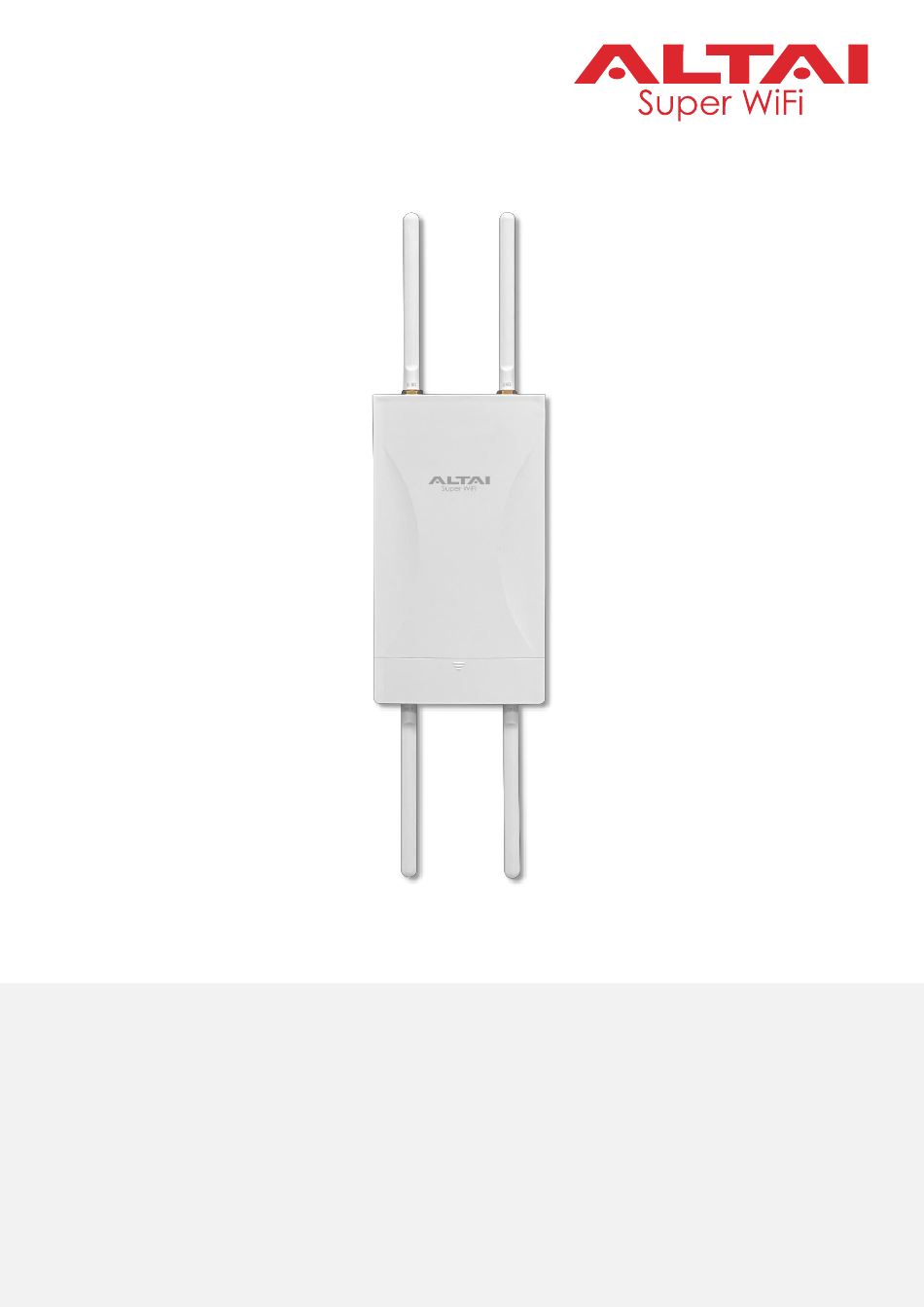

- Page 1 Altai C260-X Outdoor Dual-Band Wi-Fi 6 Access Point _______________________________________________________________________________________________________ Quick Setup Guide Version 1.1 Altai Technologies Ltd. All rights reserved Altai Technologies Ltd. All rights reserved...
-
Page 2: Package Contents
Quick Setup Guide Introduction Thank you for purchasing the Altai C260-X product. This guide provides instructions to install the product and set it up in AP mode with minimal effort. Package Contents Pole Mount Kit: Cable Tie C260-X Main Unit Wall Mount Kit: 2.4GHz Antenna... -
Page 3: Hardware Overview
Quick Setup Guide Hardware Overview Front View Back View Left Side View Right Side View Top View Bottom View Compartment Altai Technologies Ltd. All rights reserved... - Page 4 Used to attach 5GHz antennas (see the marking on the AP chassis) for 2x2 MIMO Wi-Fi connection. D: Wall-Mount Slots Used for anchoring the C260-X main unit to a wall with wall mount screws. Altai Technologies Ltd. All rights reserved...
- Page 5 Quick Setup Guide E: Pole-Mount Slots Used for securing the C260-X main unit to a pole with cable ties. F: DC Power Cable Hole Used for DC power cable feed-through. The hole is sealed. To cut a hole for the DC power cable, use a pair of needle-nose pliers, as shown in the diagram.
-
Page 6: Mounting Options
Setup Requirements and Preparation • A computer with a web browser • Two Cat 5e/6 Ethernet cables • A 802.3af/at-compliant PoE switch to power up the C260-X; alternatively, a PoE injector (purchased separately) and a power cord • Screwdrivers (Phillips), and a drill •... - Page 7 Power Options and Cable Connection Instructions Follow one of the options below to power up the C260-X for configuration. Caution: To prevent any potential damage to the RF components, it is strongly advised to have proper termination of the RF ports by connecting antennas or using dummy loads (impedance: 50 ohms) before powering up the unit.
- Page 8 1. Connect the DC connector to the C260-X’ DC j k, h n plug h into an AC outlet. 2. Connect a computer to the C260-X’ Eth0 or Eth1 port with an Ethernet cable. 3. When the 2.4GHz radio LED turns on, it should be ready for configuration.
- Page 9 For Windows 7/Windows 10/Windows 11 users, 1. Go to Control Panel, click Network and Sharing Center and then choose the Ethernet adapter that is in connection with the C260-X unit. Click it and then click Properties. 2. Under the Networking tab, select Internet Protocol Version 4 (TCP/IPv4) in the list box “This connection uses the following items”, and then click...
- Page 10 Type 192.168.1.222 in the address bar and then hit Enter. 2. The login page will come up. Enter the default username and password as follows: • Username: admin • Password: admin 3. Click Login. Altai Technologies Ltd. All rights reserved...
- Page 11 5G radio configuration. 1. Check the box to Enable Radio if you use 5GHz radio. By default, the 2.4GHz radio is always enabled and non-configurable. Select AP for the Radio Mode. Then click Submit button. Altai Technologies Ltd. All rights reserved...
- Page 12 2. Click the WLAN tab on the navigation bar. Check the box to Enable WLAN 0. Enter the SSID to name the wireless network you want to advertise, e.g. Altai C260-X. To secure a Wi-Fi network, you can use WPA2/WPA3 Personal or WPA2/WPA3 Enterprise. For simplicity, select WPA2/WPA3 Personal for Auth Mode and enter a string of 8-64 characters long for Passphrase.
- Page 13 Follow the steps below to register your APs. 1. Go to Configuration > Network > General. Configure a valid IP address either via DHCP or using a static IP configuration so that the C260-X can connect to the Internet and communicate with Insights. You can use Google Public DNS Server, e.g.
- Page 14 5. Follow Insights Quick Start Guide to register the C260-X in the cloud system. 6. The C260-X will come up online in Insights if the connection is successful. Altai Technologies Ltd. All rights reserved...
- Page 15 36cm between the radiator & your body. European Conformity (CE) – EU This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Altai Technologies Ltd. All rights reserved...
- Page 16 Warning C260-X may require professional installation depending on the deployment scenario. Only use the optional power adaptor available for C260-X. Using a different power adaptor might damage the device. The metal chassis of the equipment may be hot. Pay special attention or use special protection before handling this equipment.
