- Page 1 Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide Version 1.0 Date: May, 2016 Altai Technologies Ltd. All rights reserved...
- Page 2 Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide Copyright © 2016 Altai Technologies Limited ALL RIGHTS RESERVED. Altai Technologies Limited Unit 209, 2/F, Lakeside 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong...
- Page 3 Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide Federal Communication Commission (FCC) – USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules; these limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Warning C2s may require professional installation depending on the deployment scenario. Only use the power adaptor supplied with C2s. Using a different power adaptor might damage C2s. Install a lightning arrestor to protect the AP for lightning dissipation during rainstorms. Lightning arrestors are mounted outside the structure and must be grounded by means of a ground wire to the nearest ground rod or item that is grounded.
-
Page 5: Table Of Contents
Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide Table of contents Table of contents ....................v Introduction ....................1 Field Installation ..................2 2.1......................2 NPACK THE SHIPMENT 2.2....................... 3 ARDWARE VERVIEW 2.3..................6 REPARATION FOR NSTALLING 2.4. -
Page 6: Introduction
AP and poles locations. A planning on IP network is also an important issue for network planning. The user may need to refer the following document during C2s installation and Configuration. [1] C2s Dual-band 2x2 802.11ac Wi-Fi AP/Bridge Configuration Guide [2] C2s Dual-band 2x2 802.11ac Wi-Fi AP/Bridge Data Sheet... -
Page 7: Field Installation
The shipment consists of a C2s Super WiFi AP/Bridge and an installation kit in the container. If there is any difference from the packing list, you may need to contact the sales representative. -
Page 8: Hardware Overview

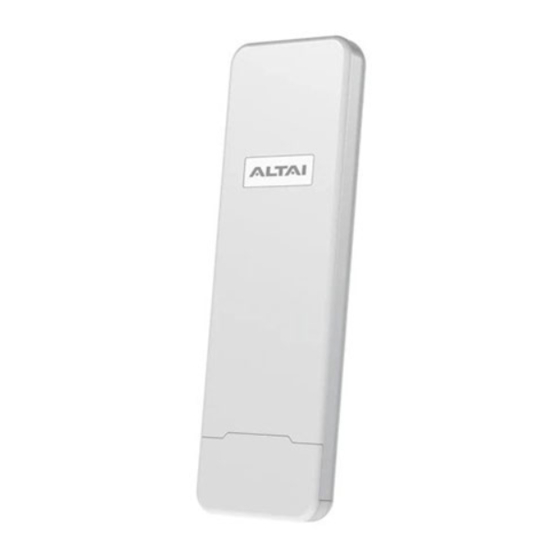

Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide 2.2. Hardware Overview Front View Front Panel (2.4G and 5G antennas embedded) Lower Compartment (Housing for Ethernet Ports) Sliding Cover for the Lower Compartment Back View Side View LED Panel Mounting Holes... - Page 9 Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide LED Panel 2.4G/5G Radio WiFi (AP/STA/Repeater/Bridge Mode) LAN (Ethernet 0/1) Solid Green: 1. AP Mode on but with no Clients Associated Solid Blue/Green: LAN Connected 2. STA/Repeater Mode on but not connected to AP 3.
- Page 10 Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide Ethernet Ports and Reset Button Eth Port 1 Reset Button Eth Port 0 ETH0/PoE IN: It is used to connect to power source (see the Power Options in the following section) and provides 10/100/1000 Mbps network interface for LAN connection.
-
Page 11: Preparation For Installing C2S
Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide 2.3. Preparation for Installing C2s Before installation, please prepare the following tools: 1) Needle-Nose Pliers (for cable feed-through) 2) Screw Driver (for wall mount) 3) RJ45 Shielded Connector Crimper 4) STP CAT5e/6 Straight Cable x 2... -
Page 12: Mounting Options
Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide 2.5. Mounting Options Option 1: Pole Mount 1. Orient the device to point to the target coverage area (for AP mode) or to the target AP (for Station mode). 2. Loop two cable ties through the slots on the back of the device and then wrap them around the pole. -
Page 13: Power Options And Cable Connection Instructions
Installation Guide 2.6. Power Options and Cable Connection Instructions Option 1: AC Adapter and DC Injector Connect C2s ETH0 port to a DC injector’s “PWR+DATA” port with an Ethernet Cable. Connect a computer to the DC injector’s “DATA” port with another Ethernet Cable. -
Page 14: C2S Waterproof Protection
Put the cover back onto the lower compartment and there should be a part of Ethernet cable left with rubber tape applied. Wrap the C2s unit with a layer of rubber tape. Start from 1cm above the cover. Wrap a loop and overlap a half. Continue until it reaches the bottom. - Page 15 Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide Wrap the C2s unit with a layer of electrical tape. Start from 1cm above the rubber tape wrapping. Wrap a loop and overlap a half. Continue until the electrical tape totally covers the rubber tape including the cable section.
-
Page 16: Electrical And Lightning Protection
(ordered separately), especially for outdoor deployment, to protect it against electrical surge. The surge protector should be grounded properly and installed as close to the C2s unit as possible in order to prevent the C2s from the electrical damage. 3.2. Lightning Protection System... - Page 17 Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge Installation Guide Typical Electrical and Lightning Protection Installation is shown below: Conventional Lightning Rod Lightning Protection Zone Grounding Wire Cable Ties C2s Main Unit Shielded Ethernet Cable Surge Protector to be as short as possible Shielded Ethernet Cable;...
