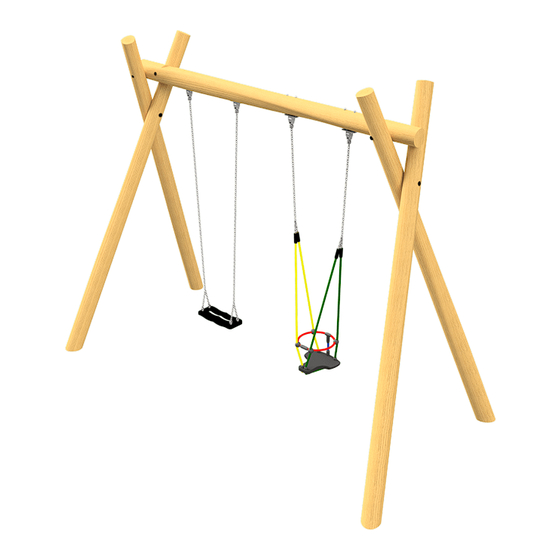

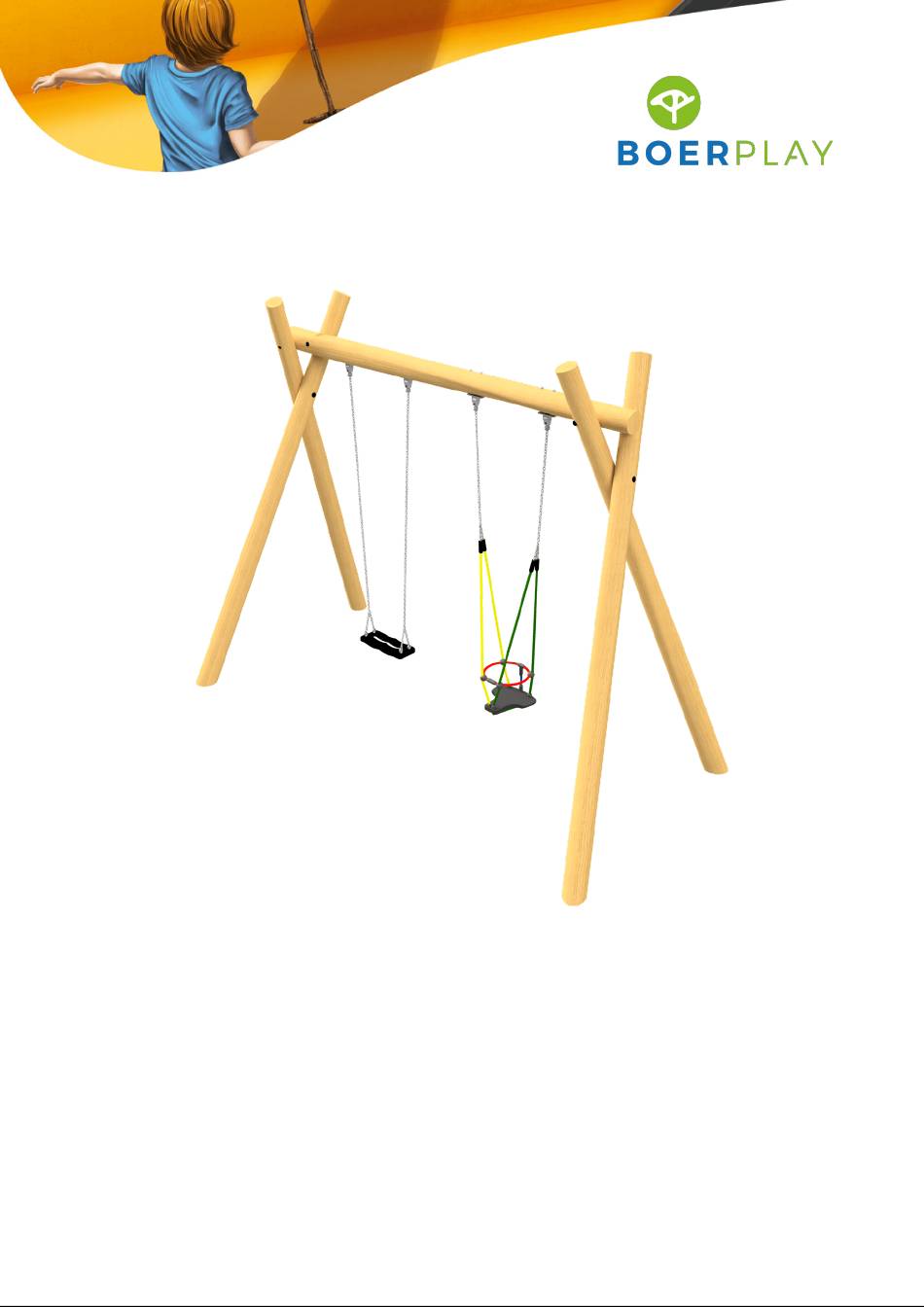

- Page 1 Double Swing 2.5m PSTE000.015...
- Page 2 Ligger mag 180 gedraaid worden Beams can be 180 rotate 1,80 m 0,89 m 0,00 m 2,83 m 2,46 m 0,00 m >0,35 m Benaming TOE PST 000 015 C Schommel Title Tekening Opmerking 1 zitje 1 Peuterzitje Drawing Comment Datum Afmetingen Dimensions 20-1-2020...
- Page 3 5,40 m 3,03 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 015 C Schommel Title Tekening Opmerking 1 zitje 1 Peuterzitje Drawing Comment Datum Obstakelvrije zone Obstacle free zone 20-1-2020 Date...
- Page 4 0,82 m 3,61 m 0,97 m 0,45 m 3,57 m 0,85 m 0,99 m Grondmarkering Ground level marker 0,90 m Benaming TOE PST 000 015 C Schommel Title Tekening Opmerking 1 zitje 1 Peuterzitje Drawing Comment Datum Bodemplan Groundplan 20-1-2020 Date...
- Page 5 Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking D 140-160 Basis frame Schommelzitje Ketting 2,0 m Peuterzitje Ketting 2.0 m Benaming TOE PST 000 015 C Schommel Title Tekening Opmerking 1 zitje 1 Peuterzitje Drawing Comment Datum Modules Modules 20-1-2020 Date...
- Page 6 Geleverde delen: Supplied parts: Zie tabel Sie table Montagevolgorde: Assembly sequence: 1 - graaf de gaten volgens het bodemplan en plaats hierin de frames B 1 - dig the holes according to the ground plan and place the frames B 2 - plaats A Verbind deze met 2x B 2 - place A connect this with 2x B 3 - Plaats zitjes verbind deze met A...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE000.015 Product Name Double Swing 2.5m Maximum fall height 1,5 m Construction year 2023 Certificate 032389 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
-
Page 8: Inspection And Maintenance
LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident... -
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Paal 14-16 Lengte =3000 Frame Type A Schommels Draadeind+borgm.+ringen+dop M12, L= 300, RVS A2-70 Benaming MOD PST 001 001 E Basis frame Title Tekening Opmerking D 140-160 Drawing Comment Datum Samenstelling module Assembly module 26-11-2019 Date...
- Page 13 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking M12 - RVS A2-70 Borgdopmoer Slotbout M12 x 140 - RVS A2-70 Sluitring M12 - RVS A2-70 RVS A2-70 Schommelscharnier Zitje incl. ketting Zeskantbout M8 x 25 - RVS A2-70 Sluitring M8 - RVS A2-70 Schommelzitje CNK Zwart Schommelketting 5mm...
- Page 14 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M12 - RVS A2-70 Slotbout M12 x 150 - RVS A2-70 Sluitring M12 - RVS A2-70 Schommelscharnier RVS A2-70 Peuterschommel Peuterzitje Benaming MOD PST 003 003 Peuterzitje Title Tekening Opmerking Ketting 2.0 m Drawing Comment Datum...
