BOERPLAY PSTE000.080 Assembly Instructions Manual

Tumble bar solo
Hide thumbs Also See for PSTE000.080:

Advertisement

Quick Links

Download this manual
Tumble bar solo
PSTE000.080

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSTE000.080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY PSTE000.080

Summary of Contents for BOERPLAY PSTE000.080

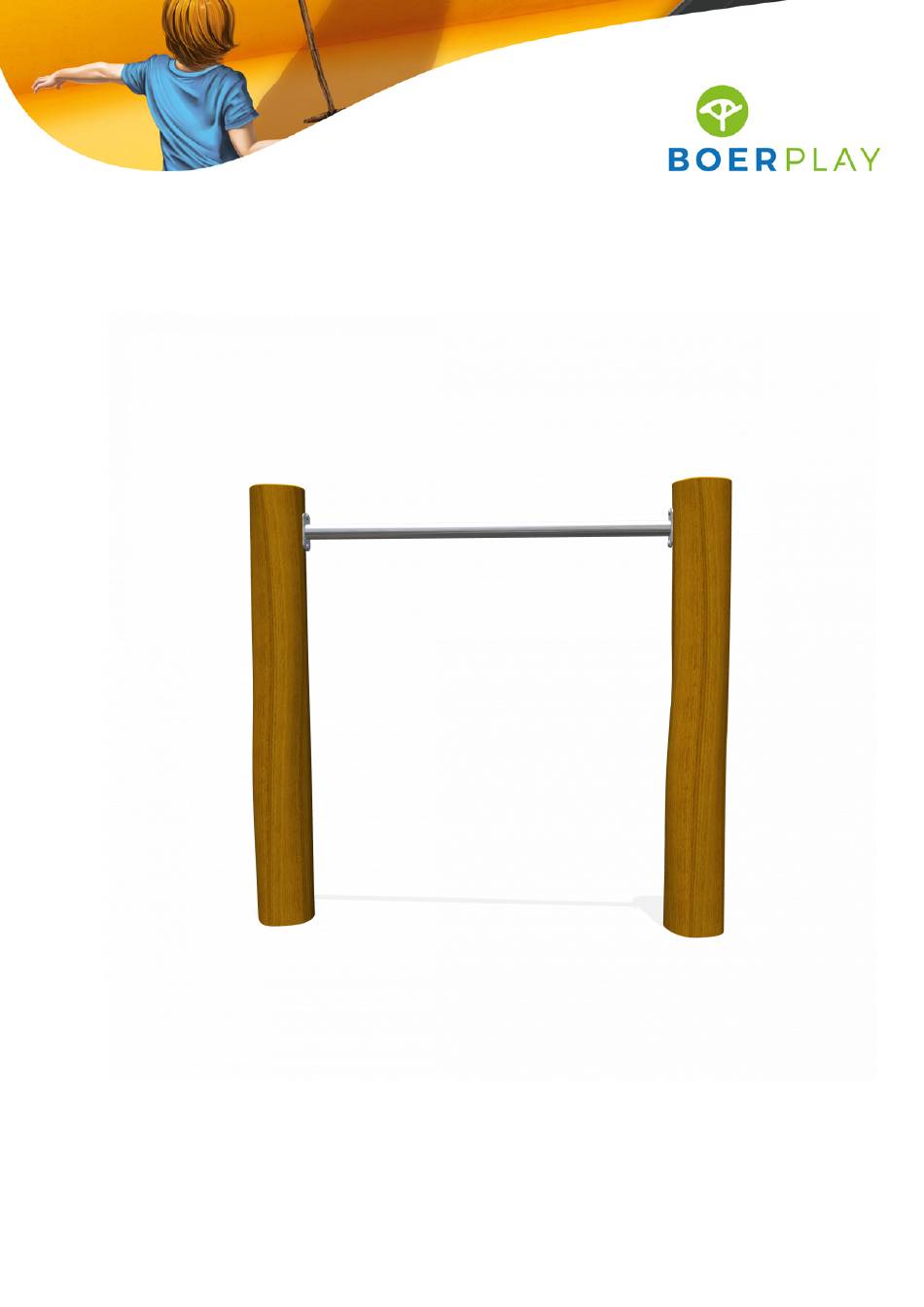

  • Page 1 Tumble bar solo PSTE000.080...
  • Page 2 4,08 m 2,08 m 0,49 m 0,50 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 080 Duikelrek Title Tekening Opmerking Solo Drawing Comment Datum Obstakelvrije zone Obstacle free zone 27-1-2017 Date...
  • Page 3 0,50 m 0,50 m Benaming TOE PST 000 080 Duikelrek Title Tekening Opmerking Solo Drawing Comment Datum Bodemplan Groundplan 27-1-2017 Date...
  • Page 4 Staanders afvlakken zodat kopplaat duikelstang geheel tegen staander komt. Uitstekende delen < 8 mm. (2x) 1,10 m Benaming TOE PST 000 080 Duikelrek Title Tekening Opmerking Solo Drawing Comment Datum Afmetingen Dimensions 27-1-2017 Date...
  • Page 5 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Duikel Rek H=900 Duikel Paal H=900 Benaming TOE PST 000 080 Duikelrek Title Tekening Opmerking Solo Drawing Comment Datum Modules Modules 27-1-2017 Date...
  • Page 6 Geleverde delen: Supplied parts: A - 2x staander met voetplaat 1,6x0,3x0,3 m [20 kg] A - 2x post with footplate 1,6x0,3x0,3 m [20 kg] B - duikelstang 0,8x0,1x0,1 m [2 kg] B - tumble bar 0,8x0,1x0,1 m [2 kg] Bevestiging sets: Mounting kits: 1 - 2 schroeven 5x50 met ring (2 stuks) 1 - 2x 5x50 screws with washers (2 pcs)
  • Page 7 PSTE000.080 Tumble bar solo LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Adventure Play Product code PSTE000.080 Name of equipment Duikel solo Maximum height of fall...

  • Page 8: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 10 1,60 m 1,50 m Grondmarkering Ground level marker 0,00 m Type Progr. Bew. Rev. Benaming Volgnr Opmerking 5 x 70 - RVS A2-70 Schroef Assy SCHROEF 5 x 50 Facet ring M5 - RVS A2-70 Paal 14-16 Lengte =1600 Plank 120x20 Lengte = 500 Duikelbuis Adventure Play...
  • Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Paal 14-16 Lengte =1600 Plank 120x20 Lengte = 500 Benaming MOD PST 007 010 A Duikel Title Tekening Opmerking Paal H=900 Drawing Comment BOER Datum Samenstelling module Assembly module 8-4-2015 Date...
