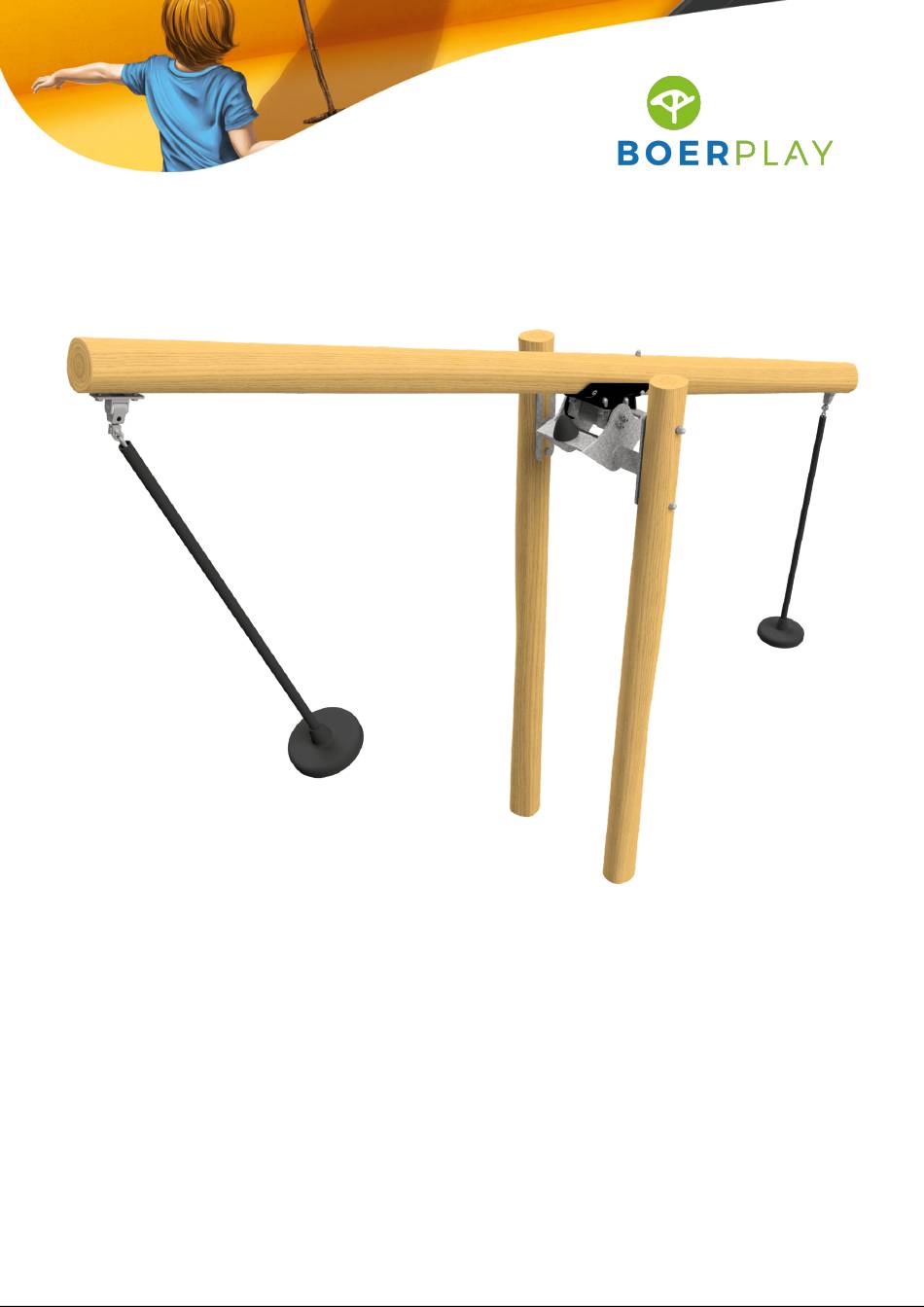

- Page 1 Pendula seesaw Solo PSTE000.006...
- Page 2 Uiterste stand Extreme position 1,27 m Benaming TOE PST 000 006 Schommelwip Title Tekening Opmerking Solo Drawing Comment Datum Afmetingen Dimensions 18-9-2023 Date...
- Page 3 4,02 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE PST 000 006 Schommelwip Title Tekening Opmerking Solo Drawing Comment Datum Obstakelvrije zone Obstacle free zone 18-9-2023 Date...
- Page 4 0,40 m 2,68 m 2,50 m 2,68 m Pour 100 l of concrete according to this drawing Stort 100 l beton conform deze tekening. Provide adequate rebar Zorg voor voldoende wapening Top of the concrete at least 400mm Bovenzijde beton tenminste 400mm below the surface onder maaiveld Benaming...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montagevolgorde: Assembly sequence: 1 - Verbind 3 aan 2 en 2 aan 1 1 - Connect 3 to 2 and 2 to 1 2 - dig the hole according to the ground plan and place teh equipment 2 - graaf het gat volgens het bodemplan en plaats hierin het toestel 3 - controleer of het toestel voldoet aan de afmetingen zoals op blad 'afmetingen' 3 - check that the equipment conforms to the dimensions shown on sheet 'dimensions'...
- Page 6 LOGBOOK Type indication Adventure Play Article number PSTE000.006 Product Name Pendula seesaw Solo Maximum fall height 1,5 m Construction year 2023 Certificate 032904 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
-
Page 7: Inspection And Maintenance
LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident... -
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 400 mm Lengte 70 mm Vierkante paal 70 mm Vierkante paal 600 mm Lengte 70 mm Vierkante paal 2500 mm Lengte Wipscharnier Pendelwip Trillingsdemper parabool 2941 095 080 16 042 000 MOD PST 006 111 © Copyright BOERplay 18-9-2023 Revision: F...
- Page 12 M10 x 160 - RVS A2-70 SLUITRING Sluitring M16 - RVS A2-70 Schommelscharnier RVS A2-70 Houtdraadbout M10 x 60 - VZ 8.8 SLUITRING M10 VZ Paal 14-16 Lengte =4000 Steun Wip balk MOD PST 006 113 © Copyright BOERplay 31-5-2022 Revision: B...
- Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Pendelzitje Rubber Bescherming Ketting KETTING VERZ 8 MM Benaming MOD PST 006 114 A Pendelzit Title Tekening Opmerking PST-Kort Drawing Comment Datum Samenstelling module Assembly module 19-3-2021 Date...
