Summary of Contents for BOERPLAY PSTE000.010

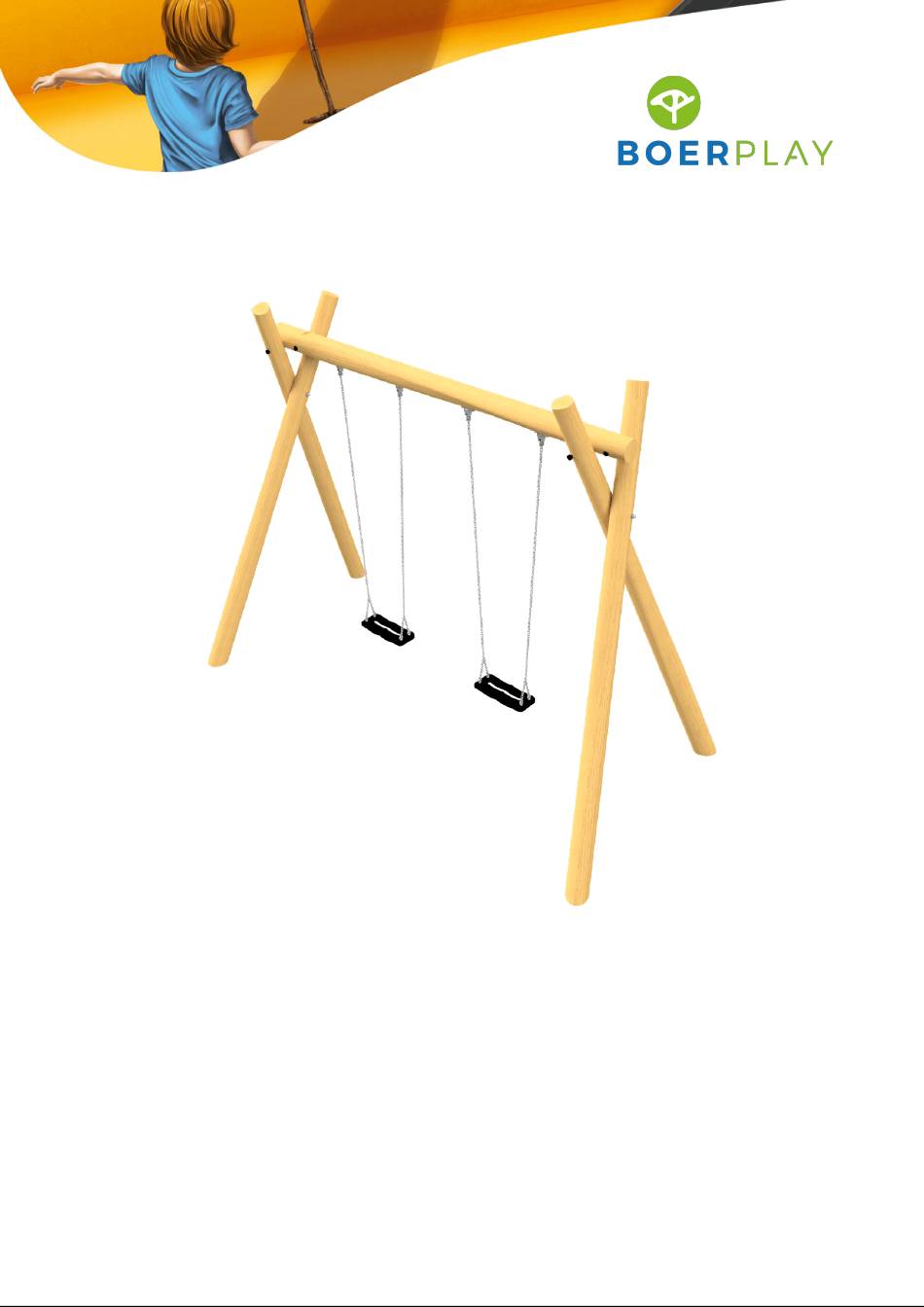

- Page 1 Double Swing 2.5m PSTE000.010...
- Page 2 0,00 m 0,91 m 1,80 m 2,84 m 2,47 m 0,00 m Benaming TOE PST 000 010 D Schommel Title Tekening Opmerking 2 zitjes Drawing Comment Datum Afmetingen Dimensions 27-11-2019 Date...
- Page 3 5,28 m 3,03 m 0,93 m 1,17 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 010 D Schommel Title Tekening Opmerking 2 zitjes Drawing Comment Datum Obstakelvrije zone Obstacle free zone 27-11-2019 Date...
- Page 4 0,84 m 0,76 m 3,68 m 0,31 m 0,92 m 3,57 m 0,79 m Grondmarkering Ground level marker Benaming TOE PST 000 010 D Schommel Title Tekening Opmerking 2 zitjes Drawing Comment Datum Bodemplan Groundplan 27-11-2019 Date...
- Page 5 Geleverde delen: Supplied parts: A - bovenbalk met zittingen A - upper beam with seats B - driehoekframe (2x) B - triangle frame (2x) Montagevolgorde: Assembly sequence: 1 - Graaf de gaten volgens het bodemplan 1 - Dig the holes according to the ground plan 2 - Plaats A(2x) 2 - Place A(2x) 3 - Plaats B, verbind deze met (2x) A...
- Page 6 Geleverde delen: Supplied parts: A - bovenbalk met zittingen A - upper beam with seats B - driehoekframe (2x) B - triangle frame (2x) Bevestiging sets: Mounting kits: 1 - M12 draadeind met moeren 1 - M12 threaded rod with nuts Montagevolgorde: Assembly sequence: 1 - graaf de gaten volgens het bodemplan en plaats hierin de frames B...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE000.010 Product Name Double Swing 2.5m Maximum fall height 1,5 m Construction year 2023 Certificate 025864 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Paal 14-16 Lengte =3000 Frame Type A Schommels Draadeind+borgm.+ringen+dop M12, L= 300, RVS A2-70 Benaming MOD PST 001 001 E Basis frame Title Tekening Opmerking D 140-160 Drawing Comment Datum Samenstelling module Assembly module 26-11-2019 Date...
- Page 13 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking M12 - RVS A2-70 Borgdopmoer Slotbout M12 x 140 - RVS A2-70 Sluitring M12 - RVS A2-70 RVS A2-70 Schommelscharnier Zitje incl. ketting Zeskantbout M8 x 25 - RVS A2-70 Sluitring M8 - RVS A2-70 Schommelzitje CNK Zwart Schommelketting 5mm...
