Summary of Contents for BOERPLAY PSTE000.019

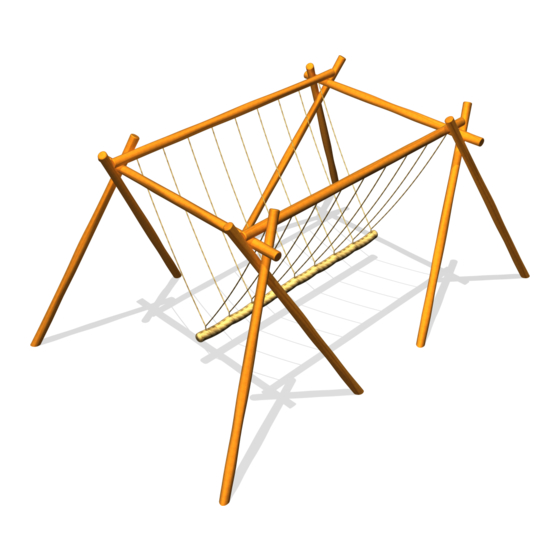

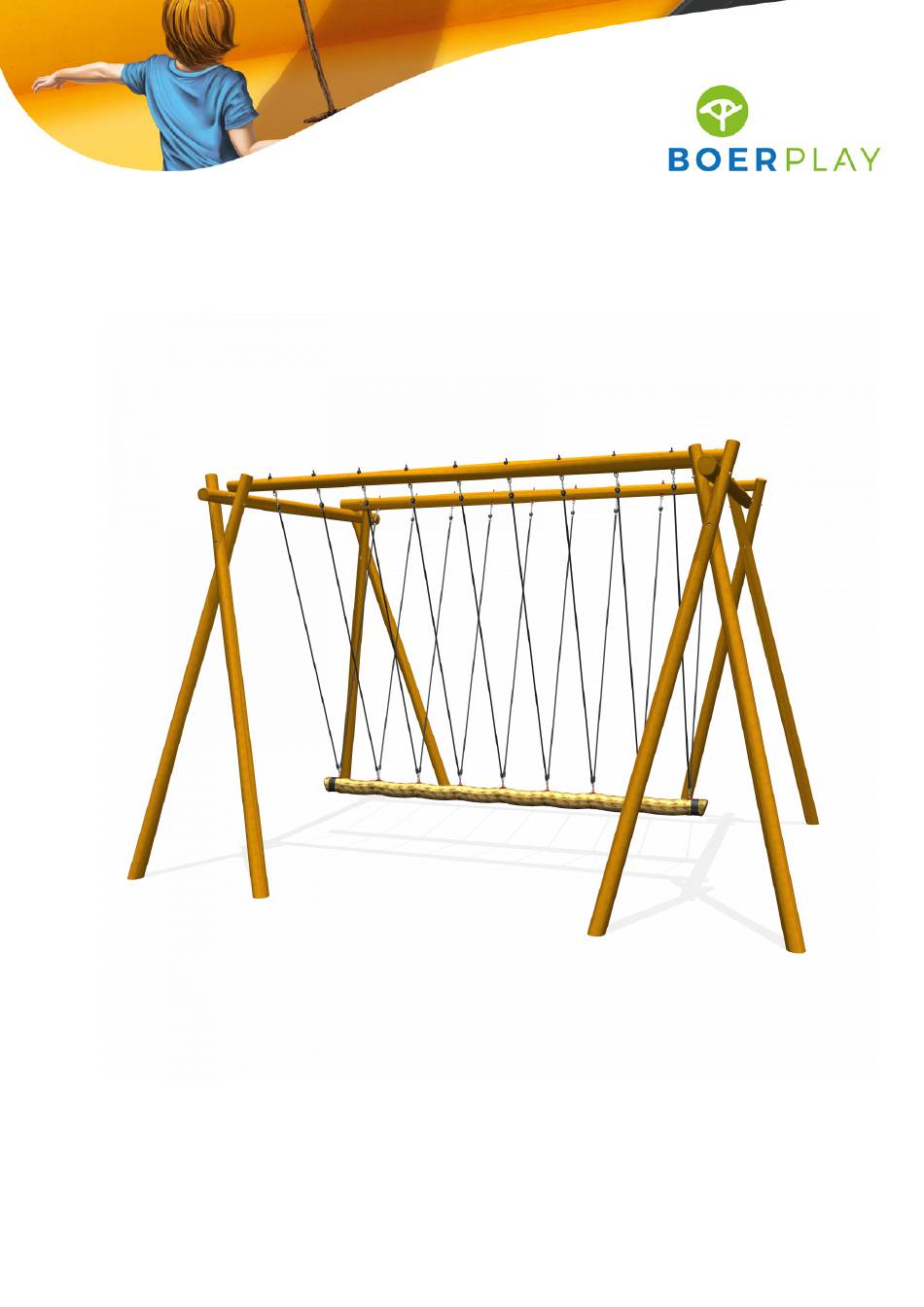

  • Page 1 Family swing PSTE000.019...
  • Page 2 4,68 m Benaming TOE PST 000 019 C Familie schommel Title Tekening Opmerking Robinia Drawing Comment BOER Datum Afmetingen Dimensions 16-5-2014 Date SPEELTOESTELLEN...
  • Page 3 7,68 m 1,75 m 1,88 m 1,88 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 019 C Familie schommel Title Tekening Opmerking Robinia Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 16-5-2014 Date SPEELTOESTELLEN...
  • Page 4 2,08 m 2,64 m 2,08 m Benaming TOE PST 000 019 C Familie schommel Title Tekening Opmerking Robinia Drawing Comment BOER Datum Bodemplan Groundplan 16-5-2014 Date SPEELTOESTELLEN...
  • Page 5 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Familie schommel Adventure Play Benaming TOE PST 000 019 C Familie schommel Title Tekening Opmerking Robinia Drawing Comment BOER Datum Modules Modules 16-5-2014 Date SPEELTOESTELLEN...
  • Page 6 Geleverde delen: Supplied parts: A - A-frame (4x) A - A-frame (4x) B - Grondbalken (8x) B - Ground beams (8x) C - Dwarsligger (2x) C - Cross beam (2x) D - Langsligger (2x) D - Stringer (2x) E - Schommeltouw met kabels E - Swing Rope with cables Mounting kits: Bevestiging sets:...
  • Page 7 PSTE000.019 Family swing LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Adventure Play Product code PSTE000.019 Name of equipment Familieschommel Maximum height of fall...

  • Page 8: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 10 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Draadeind+dopm.+ringen M12, L= 220, RVS A2-70 Draadeind+dopm.+ringen M12, L= 240, RVS A2-70 Draadeind+dopm.+ringen M12, L= 260, RVS A2-70 Borgmoer M12 - VZ 8.8 Sluitring M12 - VZ 8.8 Beschermdop M10-M12 Donut zwart Dop zwart Beschermdop M10-M12 Bovenbalk familieschommel Paal 14-16, Lengte =5000...
