Page 1

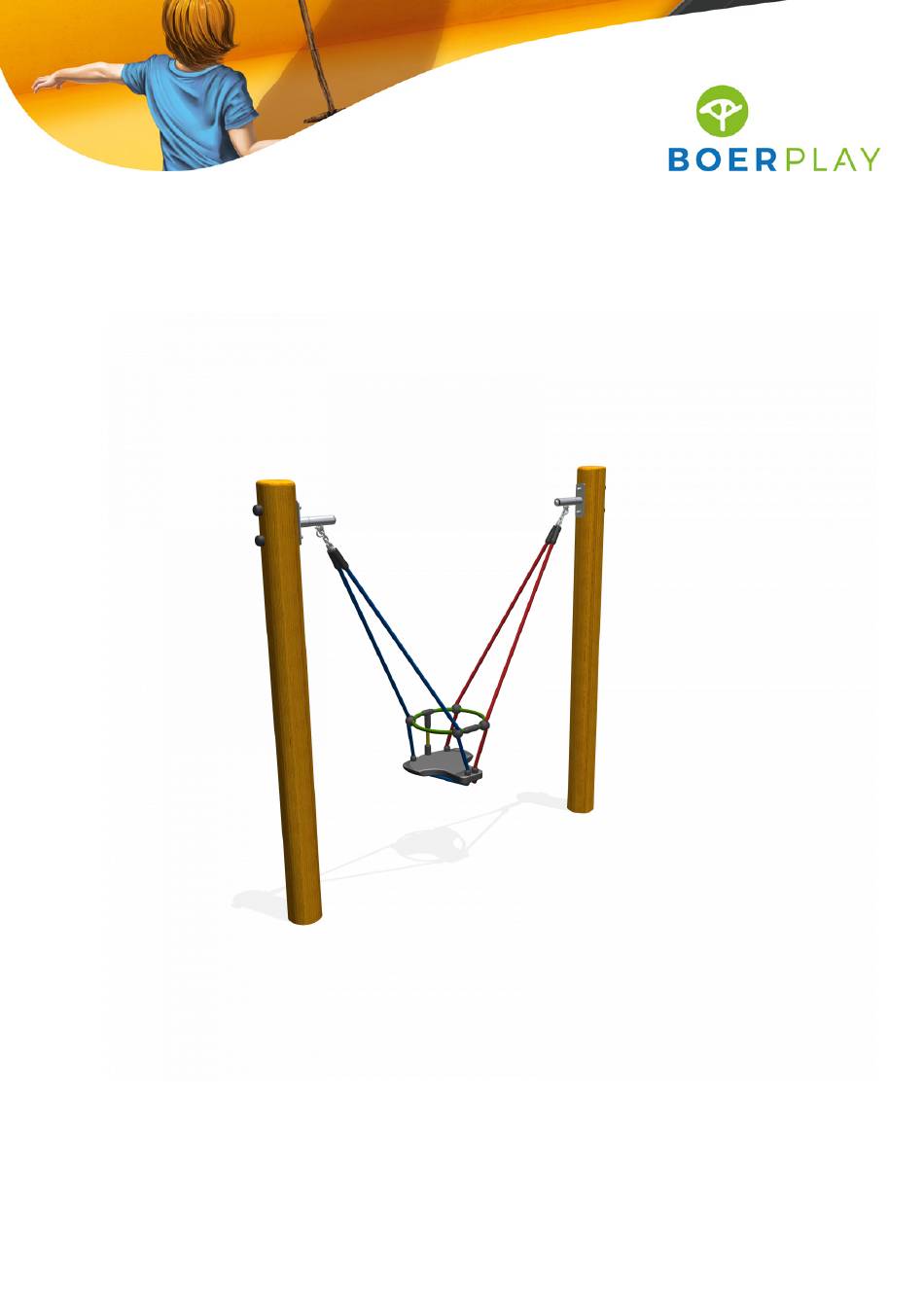

Toddler swing with toddler seat PSTE000.014...
Page 2
1,70 m 1,45 m 1,38 m 0,00 m 1,69 m Benaming TOE PST 000 014 Schommel Title Tekening Opmerking Peuterzitje Drawing Comment BOER Datum Afmetingen Dimensions 20-1-2011 Date SPEELTOESTELLEN...
Page 3
4,68 m 2,71 m 1,75 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 014 Schommel Title Tekening Opmerking Peuterzitje Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 20-1-2011 Date SPEELTOESTELLEN...
Page 4
0,35 m 1,56 m 1,56 m 1,56 m Grondmarkering Ground level marker 0,54 m Benaming TOE PST 000 014 Schommel Title Tekening Opmerking Peuterzitje Drawing Comment BOER Datum Bodemplan Groundplan 20-1-2011 Date SPEELTOESTELLEN...
Page 5
Geleverde delen: Supplied parts: Zie Tabel See Table Montagevolgorde: Assembly sequence: 1 - Dig the holes according to the ground plan and place 1 (2x) 1 - Graaf de gaten volgens het bodemplan en plaats 1 (2x) 2 - Plaats 2 en verbind deze aan 1 (2x) 2 - Place 2 and attach it to 1 (2x) 3 - Verzwaar elke staander met 50 kg beton 3 - Weighten each pole with 50 kg concrete...
Page 6
PSTE000.014 Toddler swing with toddler seat LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Adventure Play Product code PSTE000.014 Name of equipment Peuterschommel met peuterzitje...
LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
Page 9
Grondmarkering Ground level marker Type Progr. Bew. Rev. Benaming Volgnr Opmerking DOPMOER BORG RVS M10 Zeskantbout M10 x 150 - RVS A2-70 Houtdraadbout ø10 X 60 - RVS A2-70 M10 x 16 - RVS A2-70 Bolkopbout ISO 7380 SLUITRING Beschermdop M10-M12 Donut zwart OPVULDOPJE 6 MM ROOD...
Page 10
Type Progr. Volgnr Bew. Rev. Benaming Opmerking Peuterzitje Peuterschommel B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PST 001 101 Peuterschommel Title...
