Summary of Contents for BOERPLAY PSTE000.011

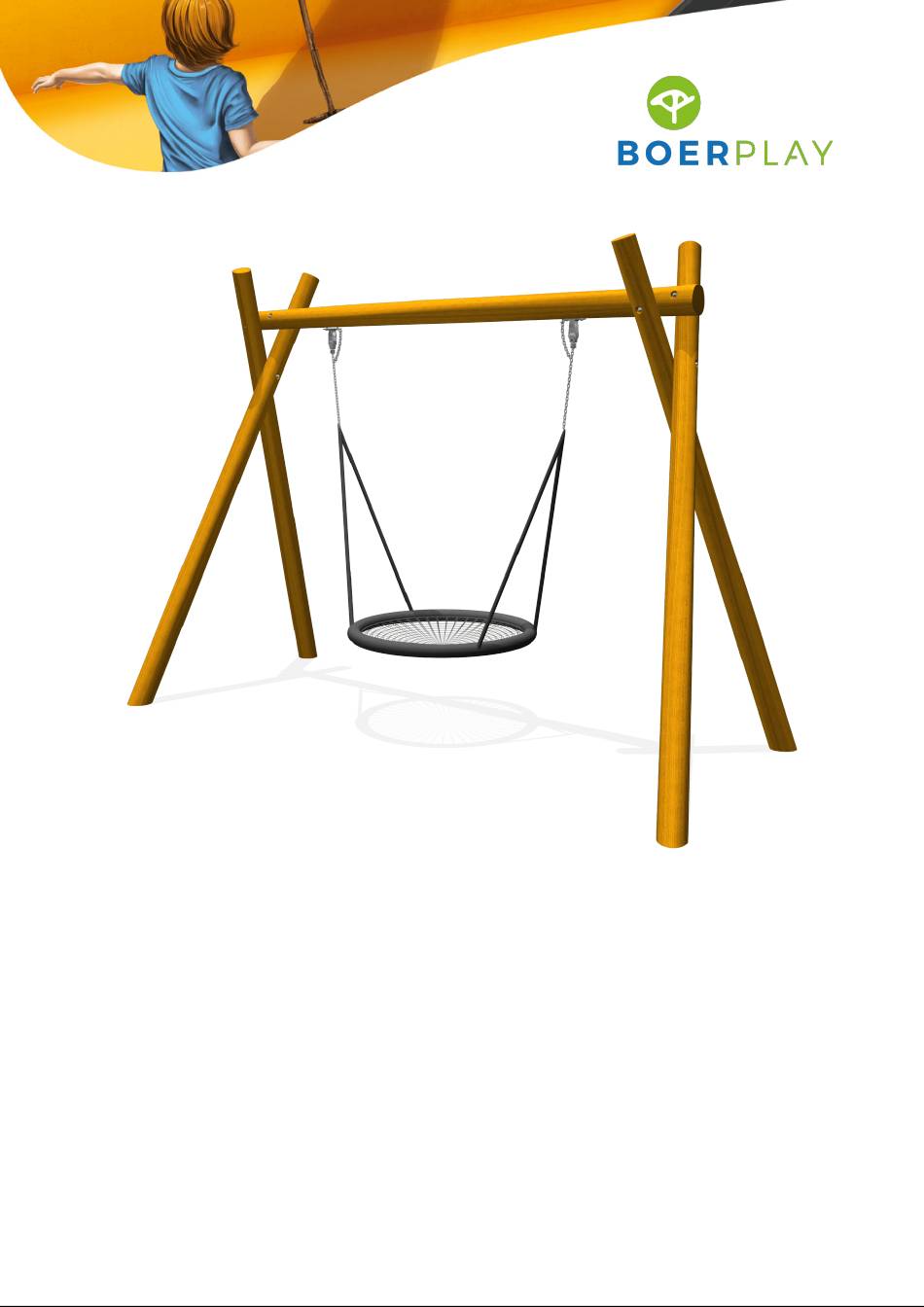

- Page 1 Bird's nest Swing 2,5m 120cm PSTE000.011...
- Page 2 1,80 m 0,90 m 0,00 m 2,84 m 2,46 m 0,00 m >0,40 m Benaming TOE PST 000 011 D Schommel Title Tekening Opmerking Vogelnest 1,2 Drawing Comment Datum Afmetingen Dimensions 25-11-2019 Date...
- Page 3 4,50 m 2,45 m 1,23 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 011 D Schommel Title Tekening Opmerking Vogelnest 1,2 Drawing Comment Datum Obstakelvrije zone Obstacle free zone 25-11-2019 Date...
- Page 4 0,46 m 3,47 m 0,57 m 0,45 m 3,47 m 0,43 m 0,60 m > 0,40 m Grondmarkering Ground level marker 0,90 m Benaming TOE PST 000 011 D Schommel Title Tekening Opmerking Vogelnest 1,2 Drawing Comment Datum Bodemplan Groundplan 25-11-2019 Date...
- Page 5 Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Basis frame D 140-160 Vogelnest 1,2 m Schommelzitje Benaming TOE PST 000 011 D Schommel Title Tekening Opmerking Vogelnest 1,2 Drawing Comment Datum Modules Modules 25-11-2019 Date...
- Page 6 Geleverde delen: Supplied parts: Zie tabel Sie Table Montagevolgorde: Assembly sequence: 1 - Graaf de gaten volgens het bodemplan 1 - Dig the holes according to the ground plan 2 - Plaats A(2x) 2 - Place A(2x) 3 - Plaats B, verbind deze met (2x) A 3 - Place B, attach it to (2x) A 4 - Plaats C, Verbind deze met B (indien nodig kort de ketting in) 4 - Place C, attach it to B (if necessary, shorten the chain)
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE000.011 Product Name Bird's nest Swing 2,5m 120cm Maximum fall height 1,5 m Construction year 2023 Certificate 025858 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 300, RVS A2-70 Paal 14-16 Lengte =3000 Frame Type A Schommels Benaming MOD PST 001 110 A Basis frame Title Tekening Opmerking D 140-160 Drawing Comment Datum Samenstelling module Assembly module 25-11-2019 Date...
- Page 13 Hoek ketting > 60° (ketting niet strak) Opening altijd < 157x89 mm Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M12 - RVS A2-70 Slotbout M12 x 150 - RVS A2-70 M12 - RVS A2-70 Sluitring D-sluiting 5 MM RVS Scharnier dubbel NORMAAL RVS A2-70 Vogelnest Ø1,2 m...
