Summary of Contents for BOERPLAY Tumble bars Hexagon H1.20-1.10-0.90

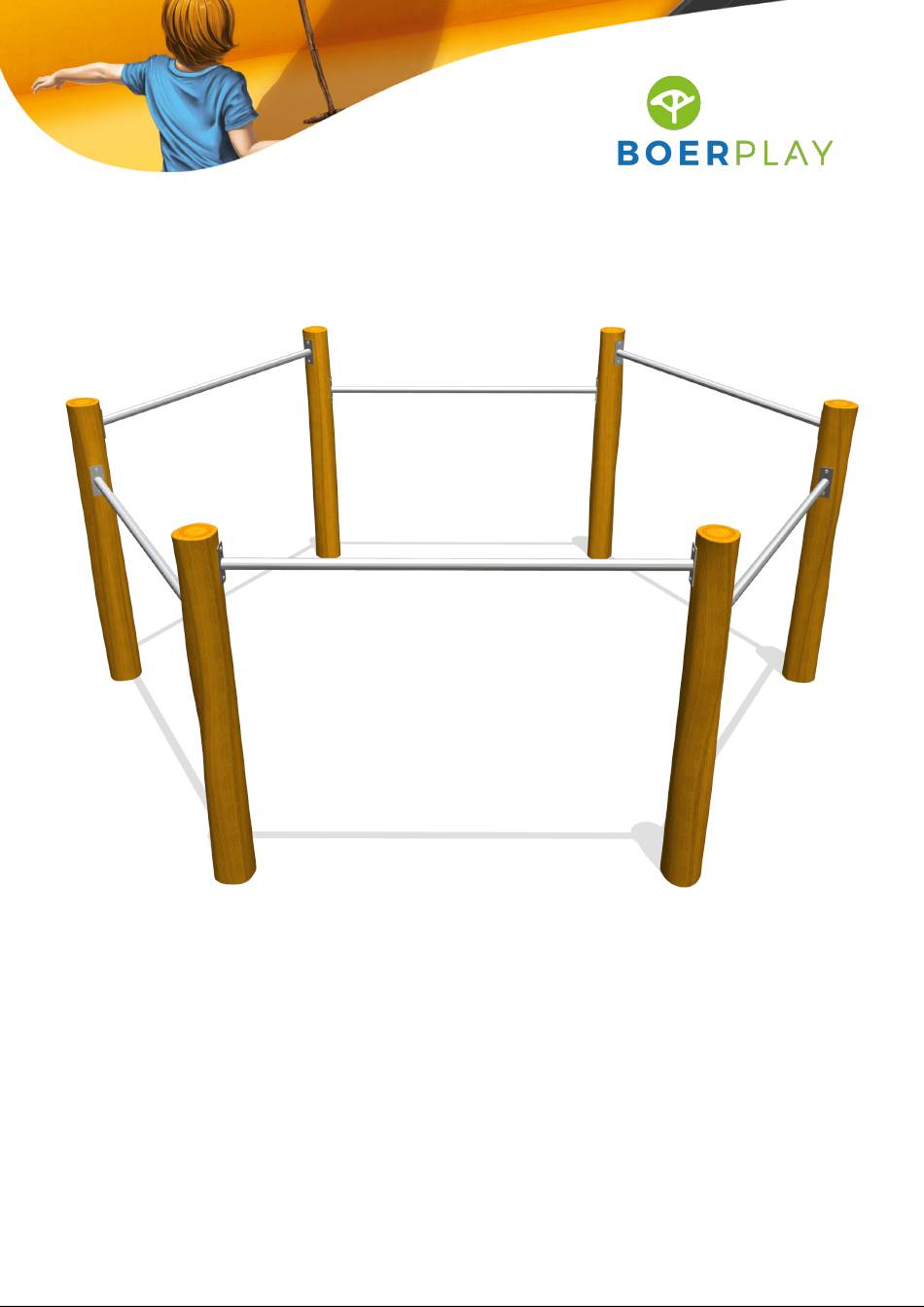

- Page 1 Tumble bars Hexagon H1.20-1.10-0.90 PSTE000.084...
- Page 2 Staander afvlakken zodat kopplaat duikelstang geheel tegen staander komt. Uitstekende delen < 8mm. (12x) 1,20 m 1,10 m 0,90 m 0,00 m 3,05 m Benaming TOE PST 000 084 Duikelrek Title Tekening Opmerking Hexagon Drawing Comment BOER Datum Afmetingen Dimensions 27-1-2017 Date SPEELTOESTELLEN...
- Page 3 5,63 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 084 Duikelrek Title Tekening Opmerking Hexagon Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 27-1-2017 Date SPEELTOESTELLEN...
- Page 4 1,58 m 2,89 m 1,58 m 1,44 m Grondmarkering Ground level marker 0,62 m Benaming TOE PST 000 084 Duikelrek Title Tekening Opmerking Hexagon Drawing Comment BOER Datum Bodemplan Groundplan 27-1-2017 Date SPEELTOESTELLEN...
- Page 5 Typeplaatje Identification plate TYPE PROJ. BEH. BENAMING OPMERKING Duikel Paal H=1100 BUIS DIAGONAAL Benaming TOE PST 000 084 Duikelrek Title Tekening Opmerking Hexagon Drawing Comment BOER Datum Modules Modules 27-1-2017 Date SPEELTOESTELLEN...
- Page 6 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE000.084 Product Name Tumble bars Hexagon H1.20-1.10-0.90 Maximum fall height 1,1 m Construction year 2023 Certificate 031069 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Paal 14-16 Lengte =1800 Standaard plank 120x20 Lengte = 500 Benaming MOD PST 007 011 Duikel Title Tekening Opmerking Paal H=1100 Drawing Comment Datum Samenstelling module Assembly module 17-2-2011 Date...
- Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 50 - RVS A2-70 Facet ring M5 - RVS A2-70 SYSTEEMBUIS DIAGONAAL B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD VRB HHT 050 BUIS Title...
