Summary of Contents for BOERPLAY PSTE000.002

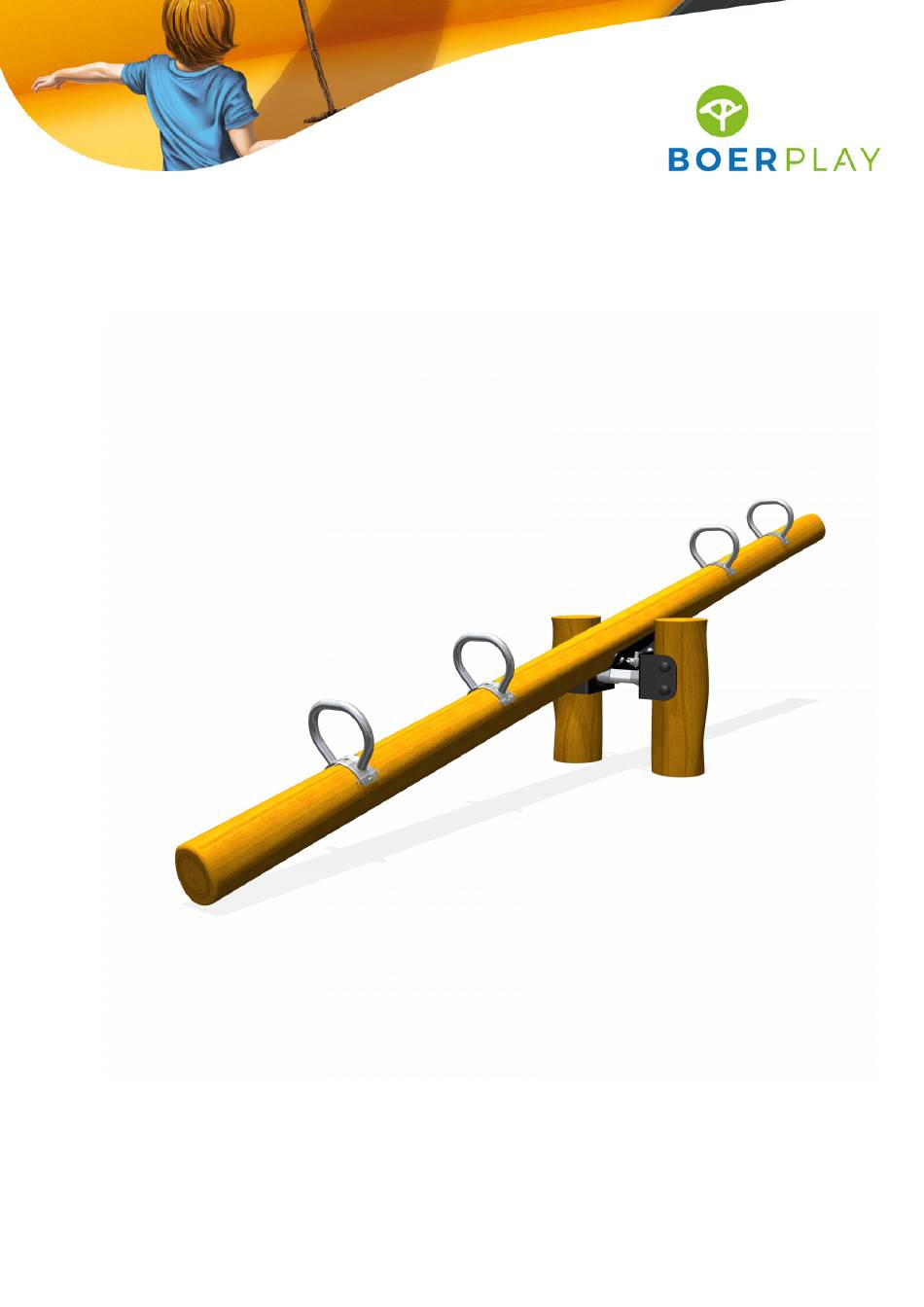

- Page 1 4 person seesaw PSTE000.002...
- Page 2 2,60 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE PST 000 002 A Wip, Gedempt Title Tekening Opmerking 4-Persoons Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 19-1-2016 Date SPEELTOESTELLEN...
- Page 3 3,00 m 0,24 m Benaming TOE PST 000 002 A Wip, Gedempt Title Tekening Opmerking 4-Persoons Drawing Comment BOER Datum Bodemplan Groundplan 19-1-2016 Date SPEELTOESTELLEN...
- Page 4 1,89 m 3,74 m Benaming TOE PST 000 002 A Wip, Gedempt Title Tekening Opmerking 4-Persoons Drawing Comment BOER Datum Afmetingen Dimensions 19-1-2016 Date SPEELTOESTELLEN...
- Page 5 Wip-wap 4-Zits Wip-wap Veerelement, Gedempt Type Progr. Volgnr Bew. Benaming Opmerking Benaming TOE PST 000 002 A Wip, Gedempt Title Tekening Opmerking 4-Persoons Drawing Comment BOER Datum Modules Modules 19-1-2016 Date SPEELTOESTELLEN...
- Page 6 Geleverde delen: Supplied parts: A - wip met onderstel 3,8x1,0x1,5 m [160 kg] A - see-saw with support 3,8x1,0x1,5 m [160 kg] Bevestiging sets: Mounting kits: 1 - n.v.t. 1 - n.a. Montagevolgorde: Assembly sequence: 1 - graaf de gaten volgens het bodemplan en plaats hierin het toestel 1 - dig the holes according to the ground plan and place the play equipment 2 - controleer of het toestel voldoet aan de afmetingen zoals op blad 'afmetingen' 2 - check that the equipment conforms to the dimensions shown on sheet 'dimensions'...
- Page 7 PSTE000.002 4 person seesaw LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Adventure Play Product code PSTE000.002 Name of equipment 4-Persoonswip. gedempt Maximum height of fall...
-
Page 8: Maintenance
LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear. - Page 10 5) aandraaien met momentsleutel, 93Nm assemble with torque wrench, 93Nm Type Progr. Volgnr Bew. Rev. Benaming Opmerking Grondmarkering Borgdopmoer M12 - RVS A2-70 Ground level marker Cilinderkop bout M12 x 30 - RVS A2-70 Cilinderkop bout M16 x 35 - RVS A2-70 Sluitring M12 - RVS A2-70 Sluitring...
- Page 11 3800 1100 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 30 - RVS A2-70 Dopmoer M16 - RVS A2-70 Sluitring M16 - RVS A2-70 HOUTDRAADBOUT M10 X 80 Sluitring M10 - VZ 8.8 Paal Ø14-Ø16 4 Persoons - L=3800 Steun Wip balk Handgreep...
