Summary of Contents for GASTRON FS-310

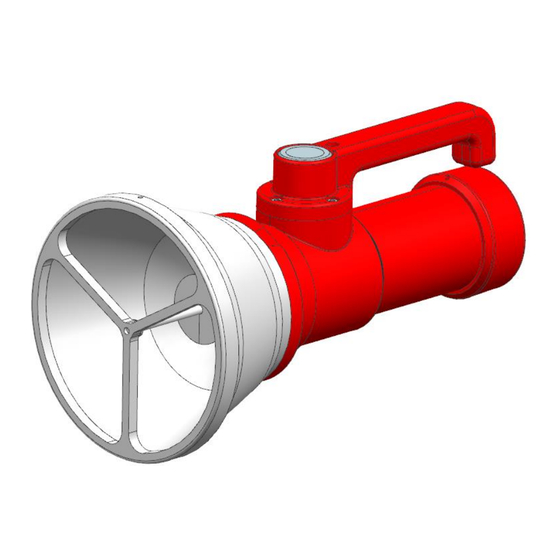

- Page 1 Flame & Gas Detector design, development, production, installation, and additional service DOC NO.GT-069IM00K FS-310 Instruction Manual Revision: 1.4 Please read carefully for proper use. Copyright ⒞GASTRON, Co., LTD. All rights reserved.
- Page 2 As a company specializing in Flame & Gas detectors and F&G Monitoring Systems, we at Gastron is being recognized by many consumers for our high quality and convenience of use. We are constantly researching and exerting our efforts to develop Flame & Gas detectors satisfying our customers, and making sure our consumers always find a product they want.
-
Page 3: Table Of Contents
FS-310 Instruction Manual TABLE OF CONTENTS Overview ................................... 4 Features ..................................... 4 Operation ..................................4 Charging the Battery ..............................5 Specification ..................................5 5.1. General Specifications ............................5 5.2. Mechanical Specifications ..........................5 5.3. Electrical Specifications ............................. 6 5.4. Environmental Specifications .......................... 6 5.5. -
Page 4: Overview
3. Operation Position FS-310 so it faces the front side of a detector. If the switch on the handle is pressed, the lamp of FS-310 blinks for 15 seconds towards the detector. Check whether the detector works or not. (Red LED of the detector lights up) ... -
Page 5: Charging The Battery
Inside a hot car (over 40℃) ➢ Place with lots of moisture or wet place ➢ Detach the rear cover of FS-310 and connect the mounted DC Jack with the recharger. The recharger supplied with FS-310 must be used. ... -
Page 6: Electrical Specifications
S P E C I F I C A T I O N Input AC 100~240V / 50~60Hz / 1.0A Output 16.8V / 2.5A Indicator Bi-Color LED (RED & GREEN) [Table 1: FS-310 Specification] PAGE 6 of 10 Rev 1.4(2021.05.24) -
Page 7: Name Of Each Component
Part combined with the body which protects the main board. Body Part protecting the main board and battery pack Cover part protecting the recharging jack connected to the battery Rear Cover pack [Table 2: Description of each component of FS-310] PAGE 7 of 10 Rev 1.4(2021.05.24) -
Page 8: How To Replace Battery & Precautions
FS-310 Instruction Manual 7. How to Replace Battery & Precautions 7.1. Battery Pack Diagram & Photo PCM location (side) PAGE 8 of 10 Rev 1.4(2021.05.24) - Page 9 FS-310 Instruction Manual 7.2. Battery Pack Specification I T E M S S P E C I F I C A T I O N Battery Type 18650 4S1P-29E Normal Voltage Over 14.6V Battery pack assy 51.6 x 48.0 x 117.0 Certification KC, CB, UN38.3...
-
Page 10: Revision Record
FS-310 Instruction Manual 7.4. Precautions when replacing the battery Do not replace in an explosion district or dangerous area ➢ Do not replace in a place with high temperatures (over 40℃) ➢ Avoid humid or wet places ➢ Replace the battery after separating the CONNECTOR on the MAIN PCB side ➢...
