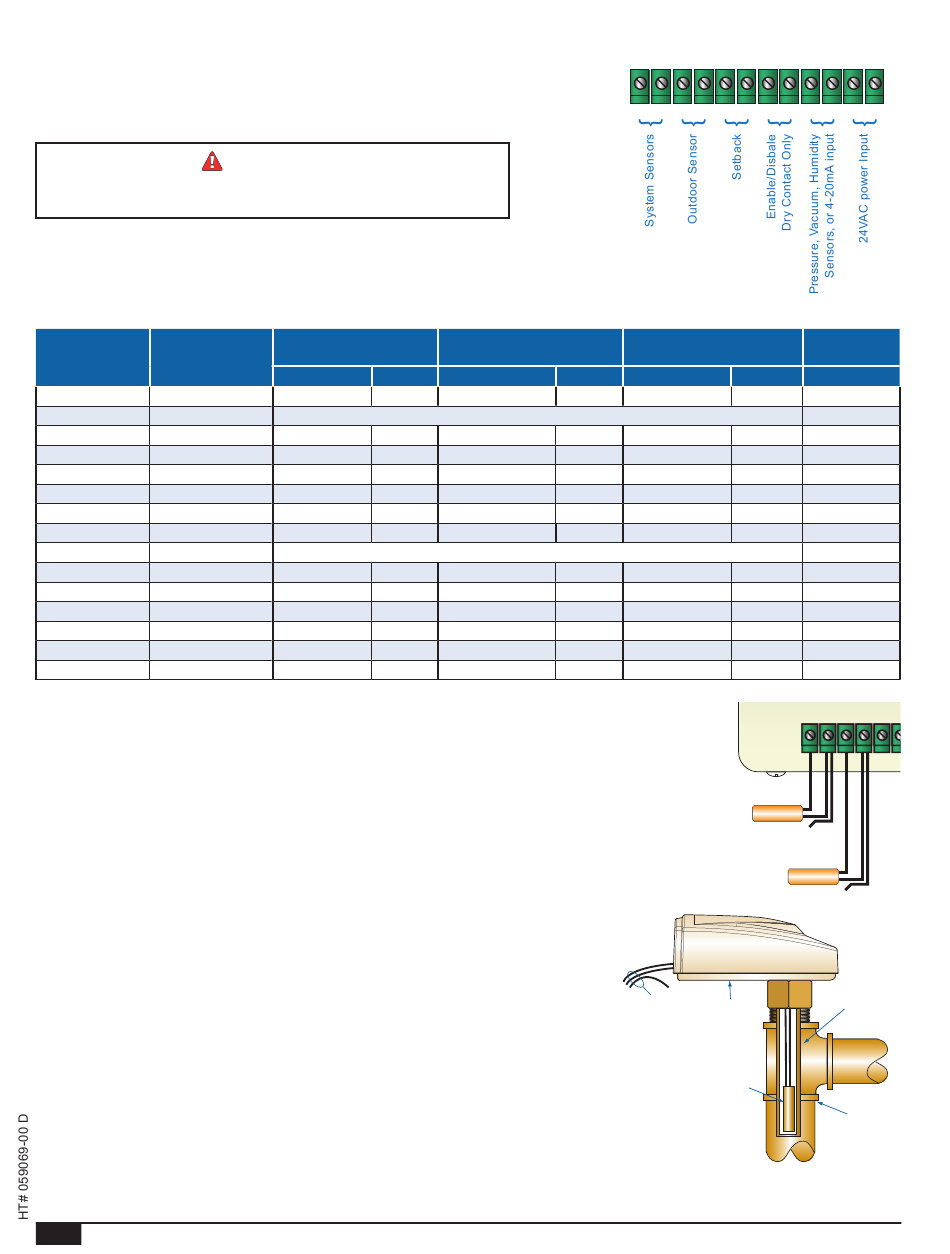

WIrIng Input tErMInALs

The MC Elite control will measure the sensor input based upon the options
selected from the Sensor Type in Startup menu. All other sensor terminal inputs
will be ignored. See "Sensor Type Table" on page 6.
Class 1 voltage wires (low voltage) must use a different knockout,
conduit, and path from any Class 2 voltage wires (high voltage).

sensor type table

stAnDArD sEnsOr typE
Temperature 250˚F
Sys Temp. English
Temperature 250˚F
Outdoor English
Sys Press. English Pressure 30 PSI
Sys Press. English Pressure 100 PSI
Sys Press. English Pressure 200 PSI
Sys Press. English Pressure 300 PSI
Sys Press. English Vacuum 30 Hg
Temperature 120˚C
Sys Temp. Metric
Temperature 120˚C
Outdoor Metric
Sys Press. Metric Pressure 0.250 MPa 0.0 to 0.25 MPa 0.10 MPa 0.001 to 0.100 MPa
Sys Press. Metric Pressure 0.600 MPa
Sys Press. Metric Pressure 1.000 MPa
Sys Press. Metric Pressure 1.600 MPa
Sys Press. Metric Vacuum 760 mm
Humidity Humidity

system temperature sensor

Terminals (T1, COM)
• Place the Temperature Heating System Sensor in the common header where
it will register the output of the boiler/valve before any takeoffs.
• Only use the Standard Brass Tube sensor (HT #904250-00 or equivalent).
• The sensor wires can be extended up to 500' using a shielded 2-conductor 18
AWG cable (Belden #8760 or equivalent).
• Cut the shield and do not connect it at the sensor end. Only connect it at the
control end using any of the COM input terminals.
Immersion heating system sensor Installation
• Install a 3/8"ID x 1/2"NPT immersion well (HT #904011-00).
• Insert the supplied sensor probe into the well.
6
WArnIng
sEt pOInt
range Default
-10˚F to 230˚F 70˚F
0.0 to 30.0 PSI 10.0 PSI
0 to 100 PSI 30 PSI
0 to 200 PSI 60 PSI
0 to 300 PSI 80 PSI
0.0 to 30.0 Hg 10.0 Hg
-23˚C to 110˚C 21˚C
0.0 to 0.6 MPa 0.2 MPa
0.0 to 1.0 MPa 0.3 MPa
0.0 to 1.6 MPa 0.5 MPa
0 to 760 mm 250 mm
0 to 100% RH 60% RH
DIFFErEntIAL
range Default
1˚F to 40˚F 5˚F
Read Only
0.5 to 10.0 PSI 2.0 PSI
1 to 30 PSI 7 PSI
1 to 60 PSI 10 PSI
1 to 90 PSI 20 PSI
0.5 to 10.0 Hg 2 Hg
Read Only
0.02 MP
0.002 to 0.200 MPa 0.03 MPa
0.005 to 0.300 MPa 0.05 MPa
0.005 to 0.500 MPa 0.10 MPa
10 to 250 mm 50 mm
1 to 30% RH 7% RH
MC-Elite Installation and Operation Manual
Input Terminals
T1 COM T2 COM T3+ T3- EXT+ EXT- P+ P- COM 24VAC
sEtBACK
range Default
0˚F to 80˚F 10˚F
0.0 to 10.0 PSI 3.0 PSI
0 to 30 PSI 10 PSI
0 to 60 PSI 20 PSI
0 to 90 PSI 30 PSI
0.0 to 10.0 Hg 3.0 Hg
0˚C to 44˚C 6˚C
0.0 to 0.1 MPa 0.025 MPa
0.0 to 0.20 MPa 0.06 MPa
0.0 to 0.30 MPa 0.10 MPa
0.0 to 0.50 MPa 0.16 MPa
0 to 250 mm 80 mm
0 to 30 %RH 10 %RH
System Temp
Sensor
Shield
OutdoorTemp
Sensor
Shield
Connect
Sensor
To control
Enclosure
Sensor
Probe
sEnsOr
tErMInALs
T1, COM
T2, COM
P+, P-
P+, P-
P+, P-
P+, P-
P+, P-
T1, COM
T2, COM
P+, P-
P+, P-
P+, P-
P+, P-
P+, P-
P+, P-
Input T
T1 COM T2 COM T3+ T3-
Shield
Immersion Well
3/8" ID 1/2" NPT
Common
Supply
Pipe
