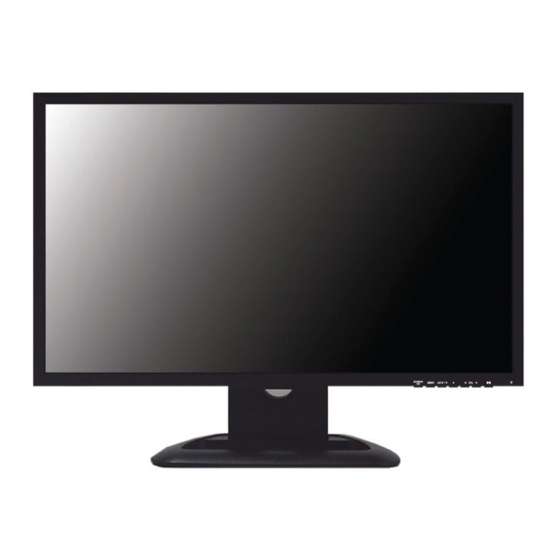

- Page 1 21.5-INCH D2iP IP OUTPUT MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
- Page 3 SAFETY INSTRUCTION ………………………………………………………….…… 2 ~ 3 CAUTIONS ……………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... INSTALLATION ………………………………………………………………………….. CONNECTING WITH EXTERNAL EQUIPMENT …………………………………… CONTROLS AND FUNCTIONS ……………………………………………………….. 8 ~ 11 MOUNTING GUIDE …………………………………………………………………….. POWER MANAGEMENT ……………………………………………………………… SPECIFICATION ……………………………………………………………………… TROUBLE SHOOTING GUIDE …………………………………………………..This Monitor was Manufactured by ISO 9001 Certified Factory - 1 -...
-
Page 4: Important Safety Instruction
Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. 14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
- Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...
-
Page 7: Doc Compliance Notice
NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 8: Positioning Your Display
Before setting up the monitor, ensure that the power to the monitor and other attached devices are turned off. ※ Notice: Stand & Screws are optional A. Connecting the stand A-1. Place the monitor with its front facing downward on a soft cloth. A-2. - Page 9 Rear Connection 1. DC 12V IN 2. UPGRADE SELECT S/W 3. UPGRADE 1 4. RJ45 5. UPGRADE 2 6. IP RESET 7. HDMI IN - 7 -...
- Page 10 Bottom Key Control 1. SOURCE/ Selects an input source. Enters a submenu or accepts your selection in the OSD menu.(OSD menu works with HDMI only.) 2. MENU Activates or exits the OSD. Moves previous menu or status in the OSD. 3 &...
-
Page 11: Osd Menu Description
OSD Menu Description All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen: 1. Press the Menu button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted. 3. - Page 12 B. OSD Submenu Definition Osd Settings Adjusts the number of horizontal picture elements. Choices are Timer (3sec, 6sec, 12sec), Rotation (0°, 90°, 180°, 270°), Position and Transparancy (range 0-100). Language Adjusts the language of the OSD. Choices are: English, Italiano, Russian, Espnol, Deutsch, Portugues, Francais, Polski, Nederlands, Chinese - 10 -...
- Page 13 C. OSD Submenu Definition Image Rotation Activates the Image Rotation function. Key Lock Locks all buttons of the monitor. Reset Resets the monitor settings to their factory default. 1) How to unlock On the front key: Press the Left and Down button at the same time over 3 seconds. - 11 -...
- Page 14 Wall mounting (Optional) The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery). M4x10 screws ※ Attention! You must use four M4x10 screws to assemble this monitor and the wall mount bracket. ※...
- Page 15 Power Consumption Mode Power Consumption Turned On < 25W Turned Off < 1W LED Indicator The power management feature of the monitor is comprised of two stages: Turned on(Blue) and turned off(LED Off). Mode Monitor Operation Turned On Blue Normal Operation Turned Off Not Operation Accessories...
- Page 16 21.5” 21.5˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm): 0.24825(H) x 0.24825(V) Brightness: 250cd/m² (Typical) LCD Type Contrast ratio: 1000:1 (Typical) Viewing angle: 170°/160° (H/V) Response time: 5ms (Typ., on/off) Resolution (H x V) 1920X1080 @60Hz Horizontal: 31~80kHz, Frequency Vertical: 56~60Hz UPGRADE 1-2 UPGRADE SELECT S/W Input Signal RJ45...
-
Page 17: Weee Symbols
WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 18 MEMO...
- Page 20 P/N : L39ME0372 Rev.0...
