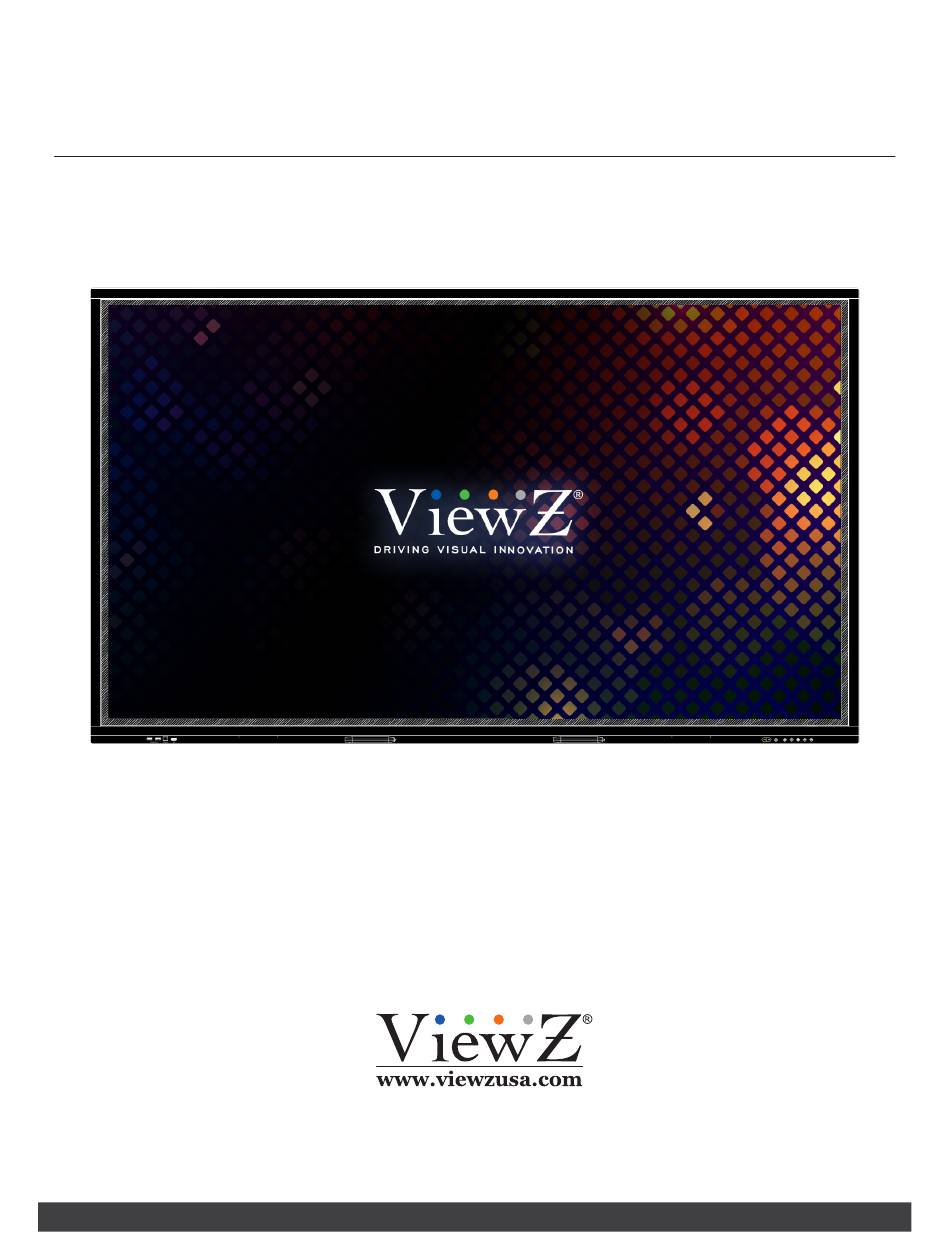

- Page 1 VZ-IBX-T SERIES 75", 86" and 98" PROFESSIONAL INTERACTIVE 4K MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
2. Interface, Resolution & Refresh Rate ............................Function .......................................... 1. Remote Control Function ................................2. OSD Control and Function ................................Mounting Guide ......................................RS232 (RJ-45) Pin Map ....................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids such as vases shall be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 5 While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 6: Fcc Rf Interference Statement
If some company or product trademark is not particularly stated, the use of trademark has been fully recognized. Do not alter, decompile, disassemble, decode or conduct reverse engineering to the software installed in the product, or it can be deemed as breach of the law. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 7: Installation
Automatic Screwdriver Phillips & Flathead Screwdriver Bit Assembly Components - provided Your ViewZ monitor is shipped with all proper installation hardware and components. If there are parts missing and/or damaged, please stop the installation and contact ViewZ USA at (888)-998-4399. -
Page 8: Monitor Button Control
4. Change the value you wish to adjust by using the stylus pen or finger 5. Use the stylus pen or finger to confirm the adjustment on sub-MENU 6. Use the stylus pen or finger to exit the sub-MENU and go back to the main-MENU Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 9: Interface Resolution & Refresh Rate
14. USB IN x 2 Interface Resolution & Refresh Rate Interface Input Source Max Resolution Refresh Rate HDMI (2.0) 3840 x 2160 60Hz 3840 x 2160 60Hz 1920 x 1080 60Hz User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 10 Before operating the interactive 4K monitor, please make sure you fully understand relevant prerequisites such as the specification or limitation of H/W and S/W. ViewZ shall not be responsible for loss, damage or injury caused by improper use of products.
-
Page 11: Function
4. Press the 'OK' button to confirm / the 'MENU/BACK' button to exit for saving adjustment value on sub-menu. 5. Press the 'MUTE' button to on / off audio-out of monitor. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 12: Osd Control And Function
Multi Window Show the running apps Home Go back to the default page Back Go back to the previous window / step Current Screen Whiteboard Open the whiteboard based on current scene Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 13 Previous Page Show the Previous saved whiteboard Next Page Show the next saved whiteboard New Page Create a new whiteboard Share Menu Share current whiteboard or quit without save Email, QRCode, Quit User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 14 When you select the 'Apps', the above window will popup on screen. You can run one of Apps When you select the 'File Manager', the above window will popup on screen. You can run or edit one of files. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 Create a spot light on current screen Calculator Launch the calculating program Countdown Launch the countdown program Lock Lock the monitor Vote Launch a voting program Clean System Optimize the system resources User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 16 Control the volume 0 ~ 100 Brightness Control the brightness of monitor 0 ~ 100 Multi Window Show the running apps Countdown, Lock, Vote, Clean Clean System Optimize the system resources Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 17 Import the picture on current screen Highlight Make a highlight on current screen Whiteboard Open the whiteboard app Cursor Change the touch input as mouse input All Clear Clear all contents on current whiteboard User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 18 Choose the initial input source Last Source, Android, VGA, AV, YPbPr, OPS, DP, HDMI, HDMI1, HDMI2 No Signal Automatic Set the shutdown time under no signal 0, 5, 15, 30 min Shutdown Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 19 Give the white color a reddish tint Standard Give the white color a neutral tint Cold Give the white color a blue-ish tint ZOOM MODE VALUE Zoom Mode Adjust the aspect ratio 16:9, 4:3 User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 20 TREBLE Adjust the treble level VOICE OUTPUT Built-in Device - use sound source from internal device ON / OFF External Device - use sound source from external device ON / OFF Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 21 1.4, 2.0 Apply the HDR for advancement in Low / Middle / High / Ref. Mode / Auto picture quality HDMI OUT Select the monitor resolution from HDMI 1080p / 4K User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 22 Setup the proxy settings to increase both Null / Manual security and privacy in the network Hostname of proxy server Port number for proxy server Do not apply to the following websites Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 23 If hotspot is provided via 5G, this should ON / OFF be checked * If the setup is done, please cleck 'Enter' button. The system will automatically find the hotspot in the area. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 24 Select an input method Android Keyboard (ASOP) / Google Pinyin * The default input method is Android Keyboard (AOSP) Language Select the default display language Selectable * The default language is 'English' Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 25 FUNCTION VALUE App Permission Setup the accessible permison for Apps Downloaded Apps Show the info of installed Apps System Apps Show the info of system Apps * Detail information is accessible User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 26 Activate the side bar menu ON /OFF Bottom Bar Switch Activate the bottom bar menu ON /OFF Float Menu Switch Activate the quick menu ON /OFF 1) The quick menu is described on Page 16 Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 27 Type the IP address of monitor to be recognized by other devices Port Make a port number for the monitor Device Name Make an unique device name to be recognized by other devices User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 28 Turn on the monitor via network ON /OFF Time for Power OFF Setup the time for power off ON /OFF Off Time Show the time when power will be off Time, Days Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 29 Installed SD-Card size on Android system Resolution Current Resolution for the monitor Android Version Installed Android OS version information System Version The monitor OS version information Touch Frame Version The touch controller software version information User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 30: Mounting Guide
Please use bolt of correct size and length as instructed. Mounting Safety ! At least two people are recommended to safely install the mount and monitor. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 31: Rs232 (Rj-45) Pin Map
If your video wall system requires an unified control by the central control (do not use provided video wall screen control software), please use the provided RJ-45(RS-232) cables to configure the sytem. If necessary, you can make your own RJ-45(RS-232) cables based on the above pin map. If you have further questions, please contact ViewZ. Firmware Upgrade/Update Process 1. -
Page 32: Specification
≤ 440 W ≤ 500 W Accessories Manual (1pc), Power Cable (1pc), USB A-B Cable (1pc), Remote Controller (1pc), Wall Mount (1set), Touch Pen (2pc), HDMI Cable (1pc), Mobile Stand (Option) Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 33: Trouble Shooting
At start input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Make sure the cable is correctly plugged into the outlet. - Make sure the power cable is correctly plugged into the monitor. -
Page 34: Rma
Failure by limited life of parts such as LED lamps and any other consumables. Damaged by using third party power cable, unstable power input and electric shock. * Above information can be changed without notification - please check our website or contact ViewZ representative for the latest RMA service policy. - Page 35 NOTE User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 36: Warranty
What and Who is Covered by this Limited Warranty and for How Long ViewZ USA warrants this product to be free from defects in material and workmanship for 3 years to the original owner of this product. The limited warranty is valid only for the original purchaser of the product.
