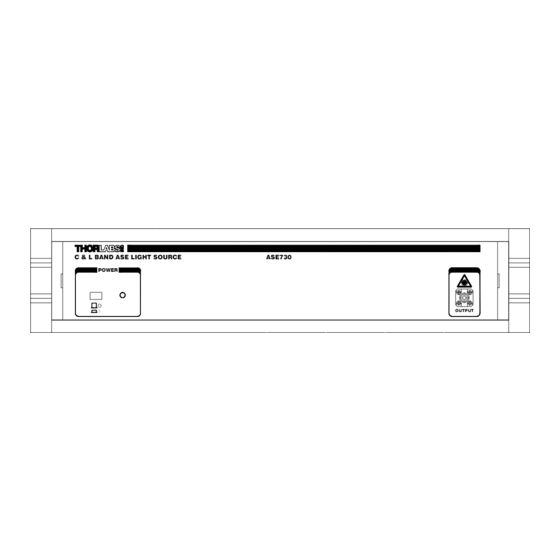

- Page 1 ASE730 C & L Band ASE Light Source User’s Manual C & L BAND ASE LIGHT SOURCE ASE730 POWER OUTPUT THORLABS, Inc. Ph: (973) 579-7227 435 Route 206N Fax: (973) 383-8406 Newton, NJ 07860 USA www.thorlabs.com...
-
Page 2: Warranty
During the warranty period Thorlabs will at it’s option repair or replace products that are found to be defective. This warranty does not apply to defects caused by improper handling or operation of the ASE730. If the product is found to show excessive wear or to show signs of misuse Thorlabs will provide the customer with a quotation on repairing or replacing the unit. -
Page 3: Technical Specifications
Description: The ASE730 is a broadband white light test source in the 1510nm to 1610nm regions. It has been designed to satisfy the demand for longer wavelength (1550nm to 1600nm) test equipment for the emerging L-band market. This device takes advantage of an erbium doped fluoride fiber that is pumped with a single 1480nm laser diode to produce 30mW (14.77dBm) of white light. -
Page 4: Operation
Do not use an index matching gel with the ASE730. Typically, the use of an index matching gel will not improve the coupling of our standard ultra-polished FC/PC connector. The use of a gel will very often lead to degradation of the performance of the connection in that it effectively traps contaminants that will damage the physically contacting connectors. -
Page 5: Connector Cleaning Procedure
1. Using filtered dry compressed air (Thorlabs item #VRK404) blow the end of the connector to remove any loose contaminants. 2. Apply isopropyl alcohol to a lint free wipe (Thorlabs item #KM32) and clean the side of the connector ferrule and the connector body. -
Page 6: Ecological Background
Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 7: Appendix "A" Final Test Inspection Records
Appendix “A” Final Test Inspection Records Sheet 1: Summary of test results Sheet 2: Power Density versus Wavelength Plot Sheet 3: 15 minute Stability Test Sheet 4: 30 minute Stability at 0° C Sheet 5: 30 minute Stability at 40° C Sheet 6: 48 Hour Power Stability Sheets 7 &...
