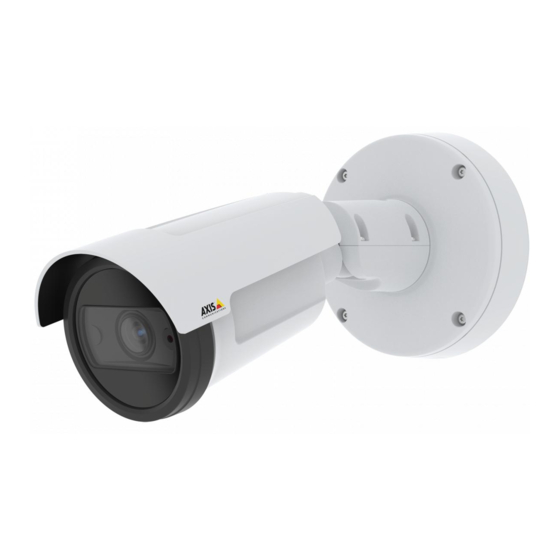

AXIS P1455-LE-3 License Plate Verifier Kit
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis P1455-LE-3

Summary of Contents for Axis P1455-LE-3

  • Page 1 AXIS P1455-LE-3 License Plate Verifier Kit User manual...
  • Page 2 Verifier application, making it a kit for license plate recognition for slow-speed traffic, as well as automated vehicle entry and exit management. AXIS P1455-LE-3 uses a whitelist and a blacklist to verify access to controlled areas such as parking lots.

  • Page 3: Basic Setup

    The mounting height for camera in a Free flow (slow traffic license plate recognition) scenario should be less than half of the distance of that between the vehicle and the camera. Access control capture distance: 2–7 m (6.6–23 ft). This example is based on the AXIS P3265–LVE-3 License Plate Verifier kit. Capture distance: (x) Mounting height (y) 2.0 m (6.6 ft)
  • Page 4 2.5 m (8.2 ft) 7.0 m (23 ft) 3.5 m (11 ft) Free flow capture distance: 7–20m (23–65 ft). This example is based on the AXIS P1465–LE-3 License Plate Verifier kit. Capture distance (x) Mounting height (y) 7.0 m (23 ft) 3.0 m (9.8 ft)

  • Page 5: Setup Assistant

    AXIS P1455-LE-3 License Plate Verifier Kit Get started Mounting angle from above. • The image of the license plate should not tilt more than 5° horizontally. If the image is tilted more than 5°, we recommended that you adjust the camera so that the license plate is displayed horizontally in the live stream.

  • Page 6: Access Control

    AXIS P1455-LE-3 License Plate Verifier Kit Get started 2. Select the image rotation that corresponds to how your camera is mounted. 3. Select the number of areas of interest. Note that one area can detect plates in both directions. 4. Select the region where the camera is located.
  • Page 7 AXIS P1455-LE-3 License Plate Verifier Kit Get started Relay if you want to connect to a relay module. See Open a barrier for known vehicles using a relay module on page 17. 3. In the Barrier mode drop-down list, under Open from lists, select Allowlist.
  • Page 8 How to access the product's webpage If you do not know the IP address of your product, use AXIS IP Utility or AXIS Device Manager to locate the product on the network. Both applications are free and can be downloaded from axis.com/support We recommend the following browsers: •...
  • Page 9 AXIS P1455-LE-3 License Plate Verifier Kit Get started Adjust the area of interest The area of interest is the area in the live view where the application looks for license plates. For optimal performance, keep the area of interest as small as possible. To adjust the area of interest, do the following: 1.

  • Page 10: Select Region

    AXIS P1455-LE-3 License Plate Verifier Kit Get started Example with one area of interest. Note • If you are using a standalone camera, you can have the app set the recommended settings for license plate recognition. Click Recommended LPR settings. You will see a table where the current settings and the recommended settings differ.
  • Page 11 SD card as the default storage. AXIS License Plate Verifier uses the cameras internal memory to save up to 1,000 events, using license plate crops as the frame. If you use larger frames, it will vary the amount of events you can save.

  • Page 12: Preview Mode

    AXIS P1455-LE-3 License Plate Verifier Kit Installation Installation Preview mode Preview mode is ideal for installers when fine tuning the camera view during the installation. No login is required to access the camera view in preview mode. It is available only in factory defaulted state for a limited time from powering up the device.
  • Page 13 AXIS P1455-LE-3 License Plate Verifier Kit Manage lists Manage lists Add detected license plate to list A license plate can be added directly to a list after being detected by the application. 1. Click the Event log tab. 2. Go to Latest Event.
  • Page 14 AXIS P1455-LE-3 License Plate Verifier Kit Manage lists 3. Browse to select a .csv file on the computer. 4. Click OK. 5. Check that the imported license plate numbers appear in the Allowlist. Share license plate lists with other cameras You can share the license plate lists with other cameras on the network.
  • Page 15 AXIS P1455-LE-3 License Plate Verifier Kit Additional settings Additional settings Configure text overlay A text overlay shows the following event information in the live view: weekday, month, time, year, license plate number. 1. Go to Settings > Image. 2. Activate Text overlay.
  • Page 16 AXIS P1455-LE-3 License Plate Verifier Kit Additional settings 1. Go to Settings > Detection parameters. 2. Under Allowed character deviation, select the number of characters that are allowed to be different. 3. Check that the application matches the license plates as expected.
  • Page 17 Open a barrier for known vehicles using a relay module This example use case explains how to set up AXIS License Plate Verifier together with a relay module to open a barrier for a known vehicle driving through a specific region of interest (ROI) into, let’s say a parking area.
  • Page 18 Open a barrier for known vehicles using the camera's I/O This example explains how to set up AXIS License Plate Verifier together with the camera’s I/O port to open a barrier for a known vehicle entering, for example, a parking area.
  • Page 19 AXIS P1455-LE-3 License Plate Verifier Kit Vehicle entry and exit scenario To watch this video, go to the web version of this document. help.axis.com/?&piaId=70394&section=open-a-barrier-for-known-vehicles-using-the-cameras-io Open a barrier for known vehicles using the camera's I/O 1. Go to the application’s webpage and select the Event log tab and add detected license plates to a list. See Add detected license plate to list on page 13 2.
  • Page 20 Vehicle access control scenario In the scenario for vehicle access control, the application can be connected to an Axis network door controller to configure access rules, create schedules for access times, and handle vehicle access not only for employees, but also, for example, visitors and suppliers.
  • Page 21 How to get the application up and running with AXIS A1001 Door Controller. Hardware configuration in AXIS Entry Manager 1. Go to AXIS Entry Manager and start a new hardware configuration under Setup. 2. In the hardware configuration, rename the network door controller to “Gate controller”.
  • Page 22 11. To limit the access time, drag and drop a Schedule to the user group. Overview of AXIS Entry Manager user interface. Users Doors Schedules User groups Connect to AXIS Secure Entry This example describes connecting an Axis door controller in AXIS Camera Station and AXIS Secure Entry with AXIS Licence Plate Verifier.
  • Page 23 3. Select Secure Entry, and click Next. In AXIS Camera Station: 4. Type the IP address of the door controller, available in the device list in AXIS Camera Station > Configuration > Other Devices. 5. To add a Authentication key, go to AXIS Camera Station > Configuration > Encrypted communication.
  • Page 24 AXIS P1455-LE-3 License Plate Verifier Kit Search for specific events Search for specific events Use the search feature to search for events using a number of criteria. 1. Go to the application’s webpage and select the Event log tab. 2. Select the date in the Start time and End time calendar menus.
  • Page 25 The camera must be physically installed and connected to the network. • AXIS License Plate Verifier must up and running on the camera. 1. Go to Integration > Push events. 2. In the Protocol drop-down list, select one of the following protocols: HTTP POST Type the user name and password.
  • Page 26 • The camera must be physically installed and connected to the network. • AXIS License Plate Verifier must up and running on the camera. 1. Go to Integration > Push events. 2. In the Protocol drop-down list, select FTP. 3. In the Server URL field, type the server address in the following format: ftp://10.21.65.77/LPR.
  • Page 27 AXIS P1455-LE-3 License Plate Verifier Kit Integration 3. Select Enable account. 4. Select Camera access. 5. Select License plate recognition. 6. Copy the IP address. In the AXIS License Plate Verifier app: 1. Go to Integration > Direct integration. 2. Add the IP address or URL to the 2N device.
  • Page 28 AXIS P1455-LE-3 License Plate Verifier Kit The web interface The web interface To reach the device’s web interface, type the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. This icon indicates that the feature or setting is only available in some devices.
  • Page 29 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Shows ongoing recordings and their designated storage space. Recordings: View ongoing and filtered recordings and their source. For more information, see Recordings on page 40 Shows the storage space where the recording is saved.
  • Page 30 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Adds or removes a focus recall area. When you add a focus recall area, the camera saves the focus settings at that specific pan/tilt range. When you have set a focus recall area and the camera enters that area in the live view, the camera recalls the previously saved focus.
  • Page 31 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Installation Capture mode : A capture mode is a preset configuration that defines how the camera captures images. When you change the capture mode, it can affect many other settings, such as view areas and privacy masks.
  • Page 32 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Stabilizer margin : Use the slider to adjust the size of the stabilizer margin, which determines the level of vibration to stabilize. If the product is mounted in an environment with a lot of vibration, move the slider towards Max. As a result, a smaller scene is captured.
  • Page 33 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Brightness: Use the slider to adjust the light intensity. This can make objects easier to see. Brightness is applied after image capture, and doesn’t affect the information in the image. To get more details from a dark area, it’s usually better to increase gain or exposure time.
  • Page 34 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you connect a supporting Axis accessory. Allow illumination: Turn on to let the camera use the built-in light in night mode.
  • Page 35 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Illumination angle : Use the slider to manually set the illumination angle, for example, if the angle needs to be different from the camera’s angle of view. If the camera has a wide angle of view, you can set the illumination angle to a narrower angle, which equals a greater tele position.
  • Page 36 AXIS P1455-LE-3 License Plate Verifier Kit The web interface • Center: Uses a fixed area in the center of the image to calculate the exposure. The area has a fixed size and position in the live view. • Full : Uses the entire live view to calculate the exposure.
  • Page 37 Zipstream is a bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example, in scenes with moving objects.
  • Page 38 AXIS P1455-LE-3 License Plate Verifier Kit The web interface P-frames: A P-frame is a predicted image that shows only the changes in the image from the previous frame. Enter the desired number of P-frames. The higher the number, the less bandwidth is required. However, if there is network congestion, there could be a noticeable deterioration in the video quality.

  • Page 39: View Areas

    AXIS P1455-LE-3 License Plate Verifier Kit The web interface Use transparency: Select and enter the RGB hexadecimal value for that color. Use the format RRGGBB. Examples of hexadecimal values: FFFFFF for white, 000000 for black, FF0000 for red, 6633FF for blue, and 669900 for green.

  • Page 40: Audio Clips

    AXIS P1455-LE-3 License Plate Verifier Kit The web interface Separate gain controls : Turn on to adjust the gain separately for the different input types. Automatic gain control : Turn on to dynamically adapt the gain to changes in the sound.
  • Page 41 Apps Add app: Install a new app. Find more apps: Find more apps to install. You will be taken to an overview page of Axis apps. Allow unsigned apps: Turn on to allow installation of unsigned apps. Allow root-privileged apps: Turn on to allow apps with root privileges full access to the device.

  • Page 42: Time And Location

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 43 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Assign IPv4 automatically: Select to let the network router assign an IP address to the device automatically. We recommend automatic IP (DHCP) for most networks. IP address: Enter a unique IP address for the device. Static IP addresses can be assigned at random within isolated networks, provided that each address is unique.
  • Page 44 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: This is the default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 45 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 46 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 47 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 48 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Add SSH account: Click to add a new SSH account. • Restrict root access: Turn on to restrict functionality that requires root access. • Enable SSH: Turn on to use SSH service.
  • Page 49 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Add a rule: Create a rule. Name: Enter a name for the rule. Wait between actions: Enter the minimum time (hh:mm:ss) that must pass between rule activations. It is useful if the rule is activated by, for example, day-night mode conditions, to avoid that small light changes during sunrise and sunset activate the rule repeatedly.
  • Page 50 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 51 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management software (VMS).
  • Page 52 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Connect: Turn on or off the MQTT client. Status: Shows the current status of the MQTT client. Broker Host: Enter the hostname or IP address of the MQTT server. Protocol: Select which protocol to use.
  • Page 53 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share since each device gets its own folder.
  • Page 54 AXIS P1455-LE-3 License Plate Verifier Kit The web interface • Add share even if connection test fails: Select to add the network share even if an error is discovered during the connection test. The error can be, for example, that you didn’t enter a password even though the server requires one.

  • Page 55: Stream Profiles

    AXIS P1455-LE-3 License Plate Verifier Kit The web interface setting the wear trigger between 80–90%. This gives you time to download any recordings as well as replace the SD card in time before it potentially wears out. The wear trigger allows you to set up an event and get a notification when the wear level reaches your set value.
  • Page 56 When you create an ONVIF account, you automatically enable ONVIF communication. Use the account name and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add accounts: Click to add a new ONVIF account.
  • Page 57 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Trigger delay: Enter the minimum time that the tampering conditions must be active before the alarm triggers. This can help prevent false alarms for known conditions that affect the image. Trigger on dark images: It is very difficult to generate alarms when the camera lens is sprayed, since it is impossible to distinguish that event from other situations where the image turns dark in a similar way, for example, when the lighting conditions change.

  • Page 58: Edge To Edge

    Pairing Pairing allows you to use a compatible Axis network speaker or microphone as if it’s part of the camera. Once paired, the network speaker acts as an audio out device where you can play audio clips and transmit sound through the camera. The network microphone will take up sounds from the surrounding area and make it available as an audio input device, usable in media streams and recordings.

  • Page 59: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 60 AXIS P1455-LE-3 License Plate Verifier Kit The web interface Firmware upgrade: Upgrade to a new firmware version. New firmware releases can contain improved functionality, bug fixes, and completely new features. We recommend you to always use the latest release. To download the latest release, go to axis.com/support.

  • Page 61: Product Overview

    AXIS P1455-LE-3 License Plate Verifier Kit Specifications Specifications Product overview AXIS P1455-LE 9 mm Audio connector I/O connector microSD card slot Network connector Status LED indicator Part number (P/N) & Serial number (S/N) Control button LED indicators Status LED Indication Unlit Connection and normal operation.

  • Page 62: Sd Card Slot

    Resetting the product to factory default settings. See Reset to factory default settings on page 66. • Connecting to an AXIS Video Hosting System service. To connect, press and hold the button for about 3 seconds until the status LED flashes green.
  • Page 63 AXIS P1455-LE-3 License Plate Verifier Kit Specifications Digital input - For connecting devices that can toggle between an open and closed circuit, for example PIR sensors, door/window contacts, and glass break detectors. Digital output - For connecting external devices such as relays and LEDs. Connected devices can be activated by the VAPIX®...

  • Page 64: Technical Issues, Clues, And Solutions

    Set up AXIS License Plate Verifier When a device is configured with AXIS License Plate Verifier, it is considered as an external data source in AXIS Camera Station. You can connect a view to the data source, search for the license plates that are captured by the device, and view the related image.
  • Page 65 Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 66: Reset To Factory Default Settings

    5. Use the installation and management software tools to assign an IP address, set the password, and access the device. The installation and management software tools are available from the support pages on axis.com/support. You can also reset parameters to factory default through the device’s web interface. Go to Maintenance > Factory default and...

  • Page 67: Upgrade The Firmware

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Performance considerations When setting up your system, it is important to consider how various settings and situations affect the performance.
  • Page 68 User manual Ver. M16.2 AXIS P1455-LE-3 License Plate Verifier Kit Date: September 2023 © Axis Communications AB, 2021 - 2023 Part no. T10167995...
