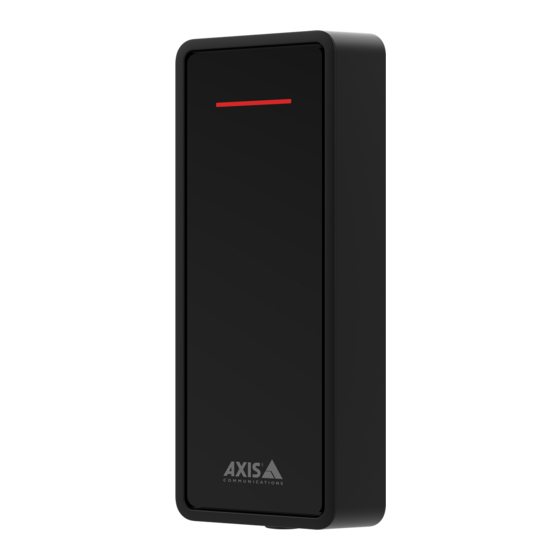

- Page 1 AXIS A4x20-E Readers AXIS A4020-E Reader AXIS A4120-E Reader with Keypad User Manual...
- Page 2 AXIS A4x20-E Readers Installation Installation To watch this video, go to the web version of this document. www.axis.com/products/online-manual/70685#t10171383 Installation video for the device...
- Page 3 The device works as a standard OSDP reader out-of-the-box. You can access specific features and change settings in AXIS Camera Station Secure Entry. Below is an example of how to configure the device through AXIS Camera Station Secure Entry. Encrypted communication AXIS Camera Station Secure Entry supports OSDP (Open Supervised Device Protocol) Secure Channel to enable line encryption between controller and AXIS A4020-E Reader.
- Page 4 AXIS A4x20-E Readers Troubleshooting Troubleshooting Reset to factory default settings A reset to factory default resets all settings to the factory default values. 1. Remove the device from the backplate. This disconnects power from the device. 2. Use a blunt instrument to press and hold the control button while you reconnect power by connecting the terminal block to the pins in the device.
- Page 5 AXIS A4x20-E Readers Specifications Specifications Product overview Reader indicator stripe DIP switches Control button Reader indicator stripe Behavior State Flashing red Waiting for controller connection DIP switches DIP switch Default setting Function OSDP address: Off + Off = 0* Off + On = 1...
- Page 6 AXIS A4x20-E Readers Specifications Secure mode * When switch 1 and 2 are both set to Off, you can use the command osdp_COMSET to change the address. Buttons Control button The control button is used for: • Resetting the product to factory default settings. See Reset to factory default settings on page 4 .
- Page 7 User Manual Ver. M1.11 AXIS A4x20-E Readers Date: September 2021 © Axis Communications AB, 2021 Part No. T10171378...
