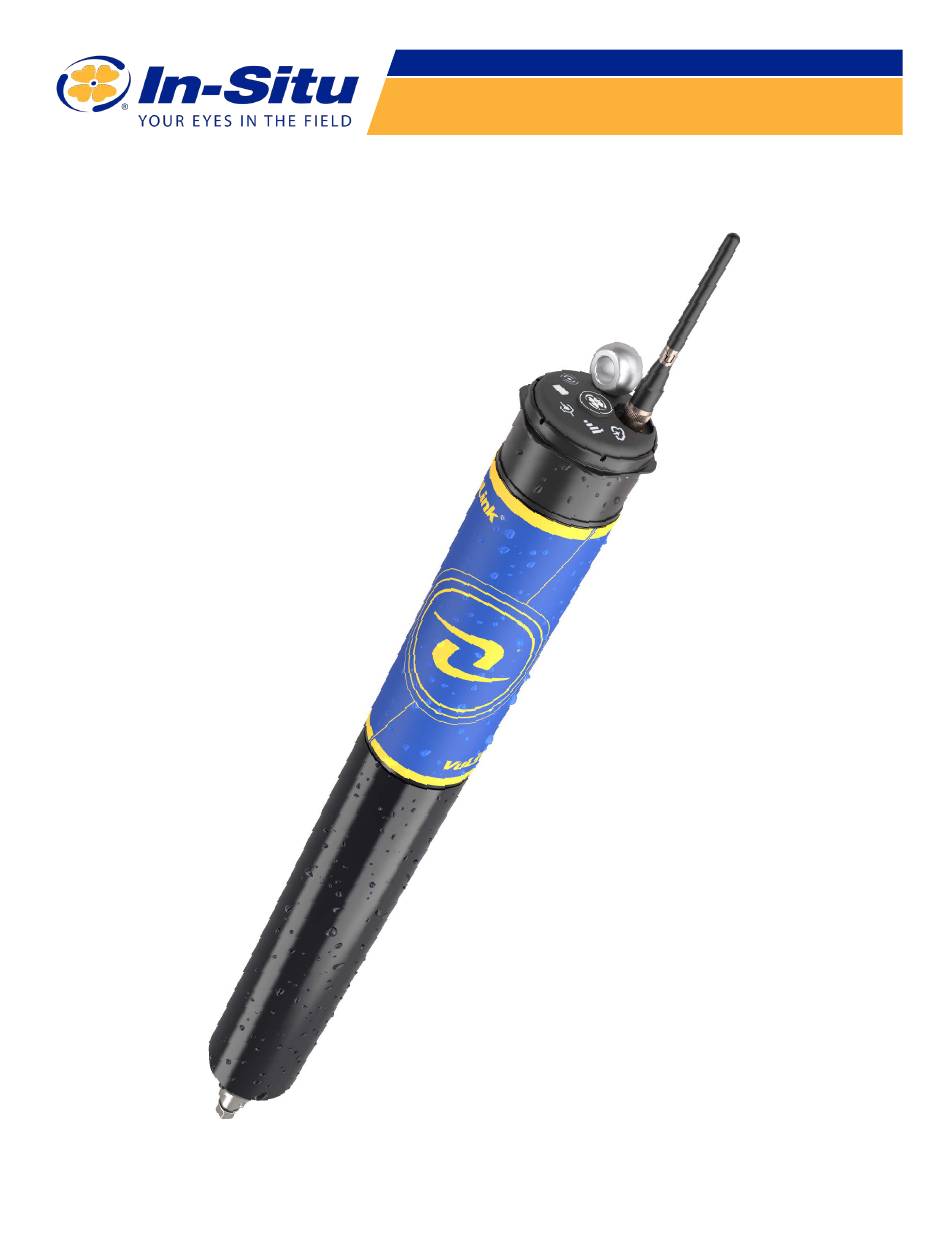

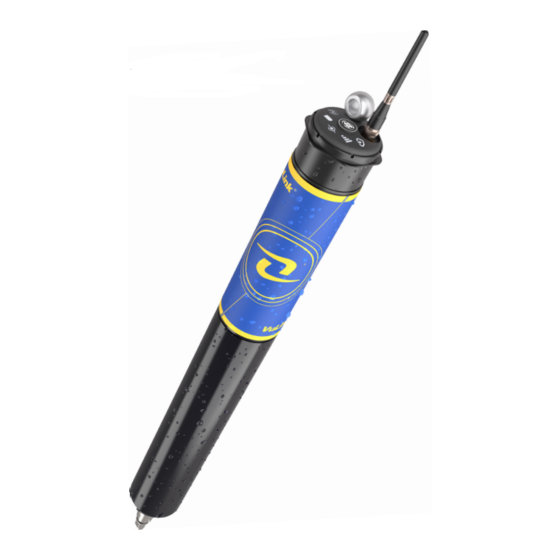

- Page 1 VuLink CI Operator’s Manual In-Situ, Inc | 221 E. Lincoln Ave | Fort Collins, CO 80524 2021-01-13 | 0094842...
-
Page 2: Table Of Contents
Press the button on the VuLink control panel........................8 Understanding the LEDs ................................. 8 Logging With VuLink ..................................10 VuLink Logs ......................................10 Instrument Logs ....................................10 Using HydroVu ....................................11 Using VuLink With VuSitu ................................12 Creating Alarms ....................................13 Updating VuLink ....................................14 Controls .......................................15 Specifications ....................................16 1-970-498-1500 www.in-situ.com... -
Page 3: Symbols
WEEE Directive: Disposing of VuLink at the end of its useful life In accordance with the EU Waste Electrical and Electronic Equipment Directive of 2005 and later Directives, VuLink should not be discarded with regular household waste. Check local electronic/electrical waste regulations before disposing of a VuLink device. 1-970-498-1500 www.in-situ.com... -
Page 4: Required Components
Bluetooth-enabled mobile device alarms, and modify and the VuSitu mobile app. VuLink settings in your browser. Batteries In-Situ recommends Saft LS 33600 batteries for your VuLink. Find them at www. in-situ.com. See battery details at https://bit.ly/38FLUhI 1-970-498-1500 www.in-situ.com... -
Page 5: How It Works
How it Works Topic header Using VuLink in any manner not specified by the manufacturer (In-Situ) may impair the device’s built-in protections. Carabiner VuLink hangs from the top of a well with the detachable carabiner. VuLink Telemetry Device VuLink provides power to monitoring instruments, transmits data to the cloud, and notifies you when maintenance is required. - Page 6 VuLink Quickstart Guide Create a HydroVu account. Go to the telemetry page. Visit hydrovu.com and create an account. Click the telemetry page link in the menu on the left side of the page. Then click Add a VuLink. Scan the QR code on your Attach the antenna and connect an instrument.
-
Page 7: Setting Up Vulink
Press the All Settings Tap Cellular Network on Tap 2G to change VuLink should now be button at the bottom of the Settings screen. VuLink’s network able to connect to a settings. Press Save. the screen. network and sync with HydroVu. 1-970-498-1500 www.in-situ.com... -
Page 8: Press The Button On The Vulink Control Panel
See the details below. Battery status Solid green Blinking red Battery power is at least Battery power is 75%. between 25% and 50%. Solid red Blinking green Battery power is less Battery power is than 25% between 50% and 75%. 1-970-498-1500 www.in-situ.com... - Page 9 Cloud connection status network. Blinking green Blinking red Connecting and Unclaimed device uploading data to HydroVu Solid red Solid green Failed to connect to HydroVu.com Upload successful Bluetooth connection status Blinking blue Ready to connect Solid blue Bluetooth connected 1-970-498-1500 www.in-situ.com...
-
Page 10: Logging With Vulink
VuLink. VuLink Logs Instrument Logs Program a log into VuLink with the VuSitu mobile app. Program a log into the instrument with VuSitu. Download log See your data in HydroVu. files with VuSitu. 1-970-498-1500 www.in-situ.com... -
Page 11: Using Hydrovu
Use HydroVu to create logs, configure alarms, and modify VuLink’s settings. Sidebar Menu Options/HydroVu Pages View your data See Locations Create and edit dashboards Configure telemetry devices Manage alarms Upload data Set up notifications Edit calculated parameters Manage users 1-970-498-1500 www.in-situ.com... -
Page 12: Using Vulink With Vusitu
Connected Telemetry Device Screen Access help Access menu. information. View and make changes to instruments connected to a VuLink. Specifiy a destination Create and for uploads, modify logs. like HydroVu or an FTP Adjust VuLink server. and instrument settings. 1-970-498-1500 www.in-situ.com... -
Page 13: Creating Alarms
Tap Settings from the To create an alarm, tap Select the parameter Add a real-time alarm. menu, and then choose that should trigger the Real-Time Alarms. alarm and set the limits. 1-970-498-1500 www.in-situ.com... -
Page 14: Updating Vulink
Updating VuLink The automatic update option ensures that VuLink always has the current firmware. 1-970-498-1500 www.in-situ.com... -
Page 15: Controls
Controls LEDs on VuLink’s control panel indicate the device’s status. 1 Carabiner 2 Bluetooth status 3 Battery status 4 Connection status 5 Network connection status 6 Cloud connection status 7 Antenna 8 Power 1-970-498-1500 www.in-situ.com... -
Page 16: Specifications
Bands Verizon - B4(AWS1700), B13(700) 2G Quadband - B2(1900), B3(1800), B5(850), B8(900) Protocols HTTPS (HydroVu), FTP, SMS (alarms) Built-in free* global roaming (see Network List Addendum for details: In-Situ. Data Provider com/VuLinkNetworks) Antenna SMA-M connector Up to 3m accuracy, built-in antenna... - Page 17 Device: IP68 System: Up to IP68 per antenna specification Protocols Modbus over RS-485, SDI-12, Pulse low/high frequencies (max 40 khz) 1 In-Situ Twistlock (supports multiple instruments via Rugged Cable Splitter Connectors or Load-bearing Universal Adaptor) Simultaneous Up to 8 instruments...
