HVLP HAND HELD
SPRAY GUN
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JS-HH12B and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR JS-HH12B

Summary of Contents for VEVOR JS-HH12B

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support HVLP HAND HELD SPRAY GUN We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 4 Warning - To reduce the risk of injury, users must read instructions manual carefully. This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS – To reduce the risks of fire or explosion, electrical shock, and the injury to persons, read and understand all instructions included in this manual. Be familiar with the controls and the proper usage of the equipment.
  • Page 6 10. Know the contents of the paints and solvents being sprayed. Read all Material Safety Data Sheets (MSDS) and container labels provided with the paints and solvents. Follow the paint and solvent manufacturer’s safety instructions. 11. Fire extinguisher equipment shall be present and working. WARNING –...
  • Page 7 balance at all times. 4) Stay alert and watch what you are doing. 5) Do not operate the unit when fatigued or under the influence of drugs or alcohol. Household Use Only SERVICING OF A DOUBLE-INSULATED PRODUCT In a double-insulated product, two systems of insulation are provided instead of grounding.

  • Page 8: Parts List

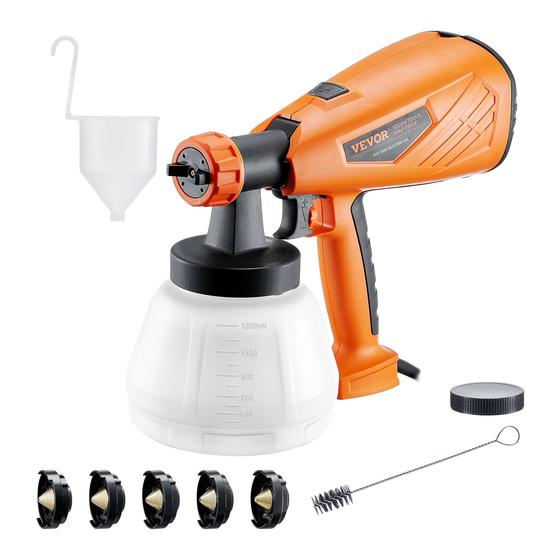

    PARTS LIST Fig.1 Description (Fig. 1) 1) Air Cap 2) Nozzle 3) Union nut 4) Spray gun front part 5) Trigger guard 6) Unlock button 7) Spray gun rear part 8) Air filter cover 9) Material volume adjustment 10) Mains lead 11) Container - 6 -...
  • Page 9 Fig.2 Fig.3 - 7 -...
  • Page 10 Fig.4 Spray pattern indicator Boss on the air cap Turn the cap to change Spray pattern. Fig.5 Fig.6 10-30 - 8 -...
  • Page 11 Fig.7 Fig.8 Unlock button - 9 -...
  • Page 12 Fig.9 Pay attention to the rib and fit the rib into the slot. Fig. 10 Air filter - 10 -...

  • Page 13: Technical Data

    Technical data Model JS-HH12B Rated voltage 120 V ~ Rated input 3.0A Double insulation 回 Container capacity 1000mL Coating Materials Suitable for Use Water- and solvent-based paints, finishes, primers, 2-component paints, clear finishes, automotive finishes, staining sealers, and wood sealer preservatives.
  • Page 14 Start-up Before connecting to the mains supply, be sure that the supply voltage is identical with the value given on the rating plate.  Unscrew the container from the spray gun.  Aligning suction tube. (Fig. 2) If the suction tube is positioned correctly, the container contents can be sprayed without almost any residue.
  • Page 15 WARNING! Danger of injury! Never pull the trigger guard while adjusting the air cap. Adjusting the Material Volume (Fig. 5) Set the material volume by turning the regulator on the trigger guard of the spray gun. - turn to downside lower material volume + turn to upside higher material volume...

  • Page 16: Taking Out Of Operation And Cleaning

    Taking Out of Operation and Cleaning Proper cleaning is the prerequisite for problem-free operation of the paint application device. No warranty claims are accepted in case of improper or no cleaning. 1) Unplug the power plug. Turning open the canister and pulling the trigger guard and letting the paint into the original paint container.

  • Page 17: Maintenance

    Maintenance  Change the air filter if it is soiled (Fig. 10, item 7). WARNING! Never operate the machine without the air filter; dirt could be sucked in and interfere with the function of the machine. Correction of Malfunctions Problem Cause Remedy No coating...
  • Page 18 Environmental protection The appliance and accessories should be recycled in an environmentally friendly way. Do not dispose of the appliance with household waste. Support environmental protection by taking the appliance to a local collection point or obtain information from a specialist retailer.
