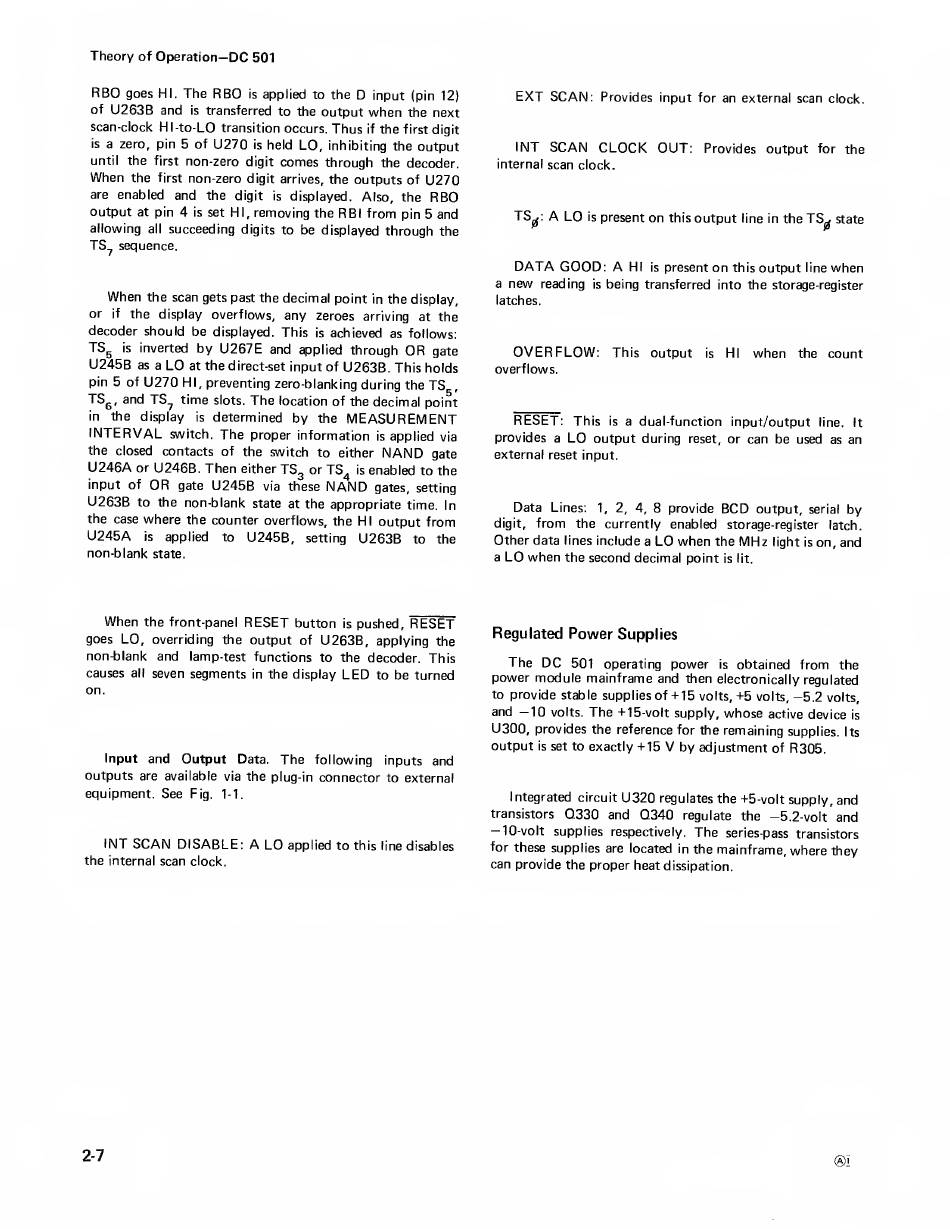

Theory
of
Operation-DC
501
RBO
goes HI.
The
RBO
is
applied to the
D
input
(pin 12)
of
U263B
and
is
transferred to the output
when
the next
scan-clock HI-to-LO
transition occurs.
Thus
if
the
first
digit
is
a zero, pin
5
of
U270
is
held
LO,
inhibiting the output
until
the
first
non-zero
digit
comes
through
the decoder.
When
the
first
non-zero
digit arrives, the outputs of
U270
are enabled and
the
digit
is
displayed. Also, the
RBO
output
at pin
4
is
set
HI, removing
the
RBI from
pin 5 and
allowing
all
succeeding
digits to
be
displayed through
the
TS.^
sequence.
When
the scan gets past the decimal point
in
the display,
or
if
the
display overflows, any
zeroes
arriving
at
the
decoder should be
displayed. This
is
achieved
as follows;
TSg
is
inverted
by
U267E
and
applied through
OR
gate
U245B
as a
LO
at
the
direct-set input of U263B.
This holds
pin
5 of
U270
HI, preventing zero-blanking
during
theTS^,
TSg, and
TS.^
time
slots.
The
location of the decimal
point
in
the display
is
determined by
the
MEASUREMENT
INTERVAL
switch.
The
proper information
is
applied
via
the closed contacts of the switch
to either
NAND
gate
U246A
or
U246B. Then
either
TS^
or
TS^
is
enabled
to
the
input of
OR
gate
U245B
via
these
NAND
gates, setting
U263B
to the non-blank
state at the appropriate time.
In
the case where
the counter
overflows, the HI output from
U245A
is
applied
to
U245B,
setting
U263B
to
the
non-blank
state.
When
the front-panel
RESET
button
is
pushed,
RESET
goes LO,
overriding the output
of
U263B,
applying the
non-blank and
lamp-test functions to the decoder. This
causes
all
seven segments
in
the display
LED
to
be
turned
on.
Input and Output
Data.
The
following
inputs
and
outputs
are available
via
the
plug-in connector
to external
equipment. See
Fig. 1-1.
INT
SCAN
DISABLE:
A
LO
applied to
this
line
disables
the
internal scan clock.
EXT
SCAN:
Provides input
for an external scan
clock.
INT
SCAN CLOCK
OUT;
Provides output for
the
internal scan clock.
TSj^:
A
LO
is
present
on
this
output
line
in
the TS^^
state
DATA GOOD: A
HI
is
present
on
this
output
line
when
a
new
reading
is
being transferred into the
storage-register
latches.
OVERFLOW:
This output
is
HI
when
the
count
overflows.
RESET:
This
is
a dual-function input/output
line.
It
provides
a
LO
output
during
reset,
or can be
used
as
an
external
reset input.
Data
Lines;
1,
2, 4,
8
provide
BCD
output,
serial
by
digit,
from
the currently enabled
storage-register
latch.
Other data
lines
include
a
LO
when
the
MHz
light
is
on,
and
a
LO when
the second decimal point
is lit.
Regulated
Power
Supplies
The
DC
501
operating
power
is
obtained from
the
power module mainframe
and then
electronically regulated
to
provide
stable supplies of
+15
volts,
+5
volts,
-5.2
volts,
and
—10
volts.
The
+15-volt supply, whose
active device
is
U300,
provides the reference
for the remaining
supplies.
Its
output
is
set
to exactly
+15
V
by adjustment
of
R305.
Integrated
circuit
U320
regulates the +5-volt supply,
and
transistors
Q330
and
Q340
regulate the -5.2-volt and
-10-volt
supplies
respectively.
The
series-pass transistors
for these supplies are located
in
the mainframe, where
they
can provide the proper heat
dissipation.
