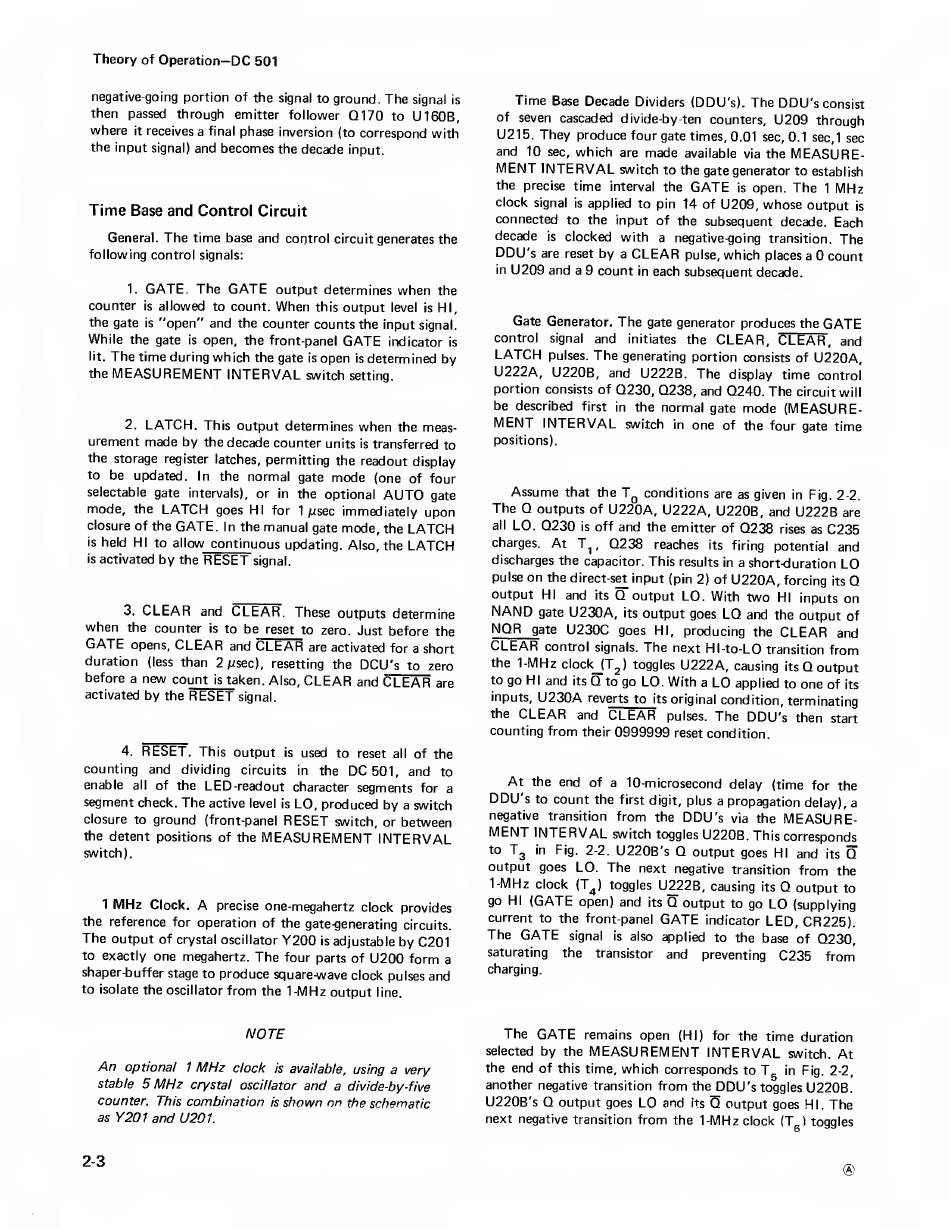

Tektronix DC 501 Instruction Manual page 10

Theory
of Operation—
DC
501
negative-going portion of the
signal
to ground.
The
signal
is
then passed through
emitter follower
Q170
to
U160B,
where
it
receives a
final
phase
inversion
(to
correspond with
the input
signal)
and becomes
the decade
input.
Time
Base and Control
Circuit
General.
The
time base and
control
circuit generates the
following control
signals:
1.
GATE. The
GATE
output determines
when
the
counter
is
allowed
to count.
When
this
output
level
is
HI,
the gate
is
"open" and
the counter counts the
input
signal.
While
the gate
is
open, the
front-panel
GATE
indicator
is
lit.
The
time during which
the gate
is
open
is
determined
by
the
MEASUREMENT
INTERVAL
switch
setting.
2.
LATCH.
This output determines
when
the meas-
urement made by
the decade counter
units
is
transferred to
the storage
register latches, permitting the readout display
to be updated.
In
the normal
gate
mode
(one
of four
selectable gate
intervals), or
in
the optional
AUTO
gate
mode,
the
LATCH
goes HI
for
1
psec immediately upon
closure of the
GATE.
In
the manual
gate
mode,
the
LATCH
is
held HI to
allo
w
continu ous
updating. Also, the
LATCH
is
activated
by
the
RESET
signal.
3.
CLEAR
and
CLEAR.
These outputs determine
when
the counter
is
to
b
e reset
t
o
zero. Just before the
GATE
opens,
CLEAR
and
CLEAR
are activated for a short
duration
(less
than 2psec),
resetting the DCU's
to zero
before
a
new
co unt
is
ta ken. Also,
CLEAR
and
CLEAR
are
activated
by
the
RESET
signal.
4.
RESET.
This output
is
used to
reset
all
of the
counting and
dividing
circuits
in
the
DC
501,
and
to
enable
all
of the LED-readout
character segments
for a
segment
check.
The
active
level
is
LO,
produced by
a
switch
closure to ground
(front-panel
RESET
switch, or
between
the
detent
positions of the
MEASUREMENT
INTERVAL
switch).
1
MHz
Clock.
A
precise
one-megahertz
clock provides
the reference
for operation of the
gate-generating
circuits.
The
output
of
crystal oscillator
Y200
is
adjustable
by
C201
to exactly one
megahertz.
The
four
parts of
U200
form
a
shaper-buffer
stage to produce
square-wave
clock pulses and
to
isolate the oscillator
from
the
1-MHz
output
line.
NOTE
An
optional
1
MHz
dock
is
available, using a very
stable
5
MHz
crystal oscillator
and
a divide-by-five
counter. This combination
is
shown
on
the schematic
as
Y201 and
U201.
Time
Base Decade
Dividers (DDU's).
The DDU's
consist
of seven
cascaded
divide-by-ten counters,
U209
through
U215. They produce
four
gate times, 0.01
sec,
0.1 sec,1 sec
and 10
sec,
which
are
made
available
via
the
MEASURE-
MENT
INTERVAL
switch to the gate generator to
establish
the
precise
time
interval
the
GATE
is
open.
The
1
MHz
clock
signal
is
applied to pin
14 of
U209, whose
output
is
connected
to the input of the
subsequent decade. Each
decade
is
clocked with
a negative-going
transition.
The
DDU's
are
reset
by
a
CLEAR
pulse,
which
places
a
0 count
in
U209
and
a
9 count
in
each subsequent decade.
Gate
Generator.
The
gate generator produces
the
GATE
control
signal
and
initiates the
CLEAR, CLEAR,
and
LATCH
pulses.
The
generating portion
consists of
U220A,
U222A, U220B,
and U222B. The
display time
control
portion
consists of Q230, Q238,
and
Q240. The
circuit will
be
described
first
in
the
normal
gate
mode (MEASURE-
MENT
INTERVAL
switch
in
one
of the four gate
time
positions).
Assume
that the
T^j
conditions
are as
given
in
Fig. 2-2.
The
Q
outputs of
U220A, U222A, U220B,
and
U222B
are
all
LO.
Q230
is
off and the emitter of Q238
rises as
C235
charges. At T^
,
Q238
reaches
its firing potential and
discharges the capacitor.
This
results
in a short-duration
LO
pulse
on
the
direct
s^
input
(pin 2) of
U220A,
forcing
its
Q
output
HI and
its
Q
output LO. With
two
HI inputs on
NAND
gate
U230A,
its
output
goes
LO
and
the output
of
NOR
ga te
U230C
goes HI,
producing
the
CLEAR
and
CLEAR
control
signals.
The
next HI-to-LO
transition
from
the
1-MHz
clockJT^)
toggles
U222A,
causing
its
Q
output
to
go
HI and
its
Q
to go LO. With
a
LO
applied to one
of
its
inputs,
U230A
rev erts
to
i
ts original condition, terminating
the
CLEAR
and
CLEAR
pulses.
The DDU's
then
start
counting from
their
0999999
reset condition.
At
the end
of
a 10-microsecond delay
(time
for the
DDU's
to
count
the
first digit,
plus
a propagation
delay), a
negative transition from
the
DDU's
via
the
MEASURE-
MENT
INTERVAL
switch
toggles U220B.
This corresponds
to
Tg
in
Fig. 2-2. U220B's
Q
output
goes HI and
its
Q
output
goes LO. The
next
negative transition from
the
1-MHz
clock (T^) toggles U222B,
causing
its
Q
output
to
go Hi
(GATE
open) and
its
Q
output
to go
LO
(supplying
current to the front-panel
GATE
indicator
LED,
CR225).
The
GATE
signal
is
also applied to the
base of 0230,
saturating the
transistor
and
preventing
C235
from'
charging.
The
GATE
remains open
(HI) for
the time duration
selected
by
the
MEASUREMENT
INTERVAL
switch.
At
the end of
this
time,
which
corresponds
to
Tg
in Fig. 2-2,
another
negative transition
from
the
DDU's
toggles
U220B.
U220B's
Q
output
goes
LO
and
its
Q
output
goes HI.
The
next negative transition from
the 1-MHz
clock (T^) toggles
