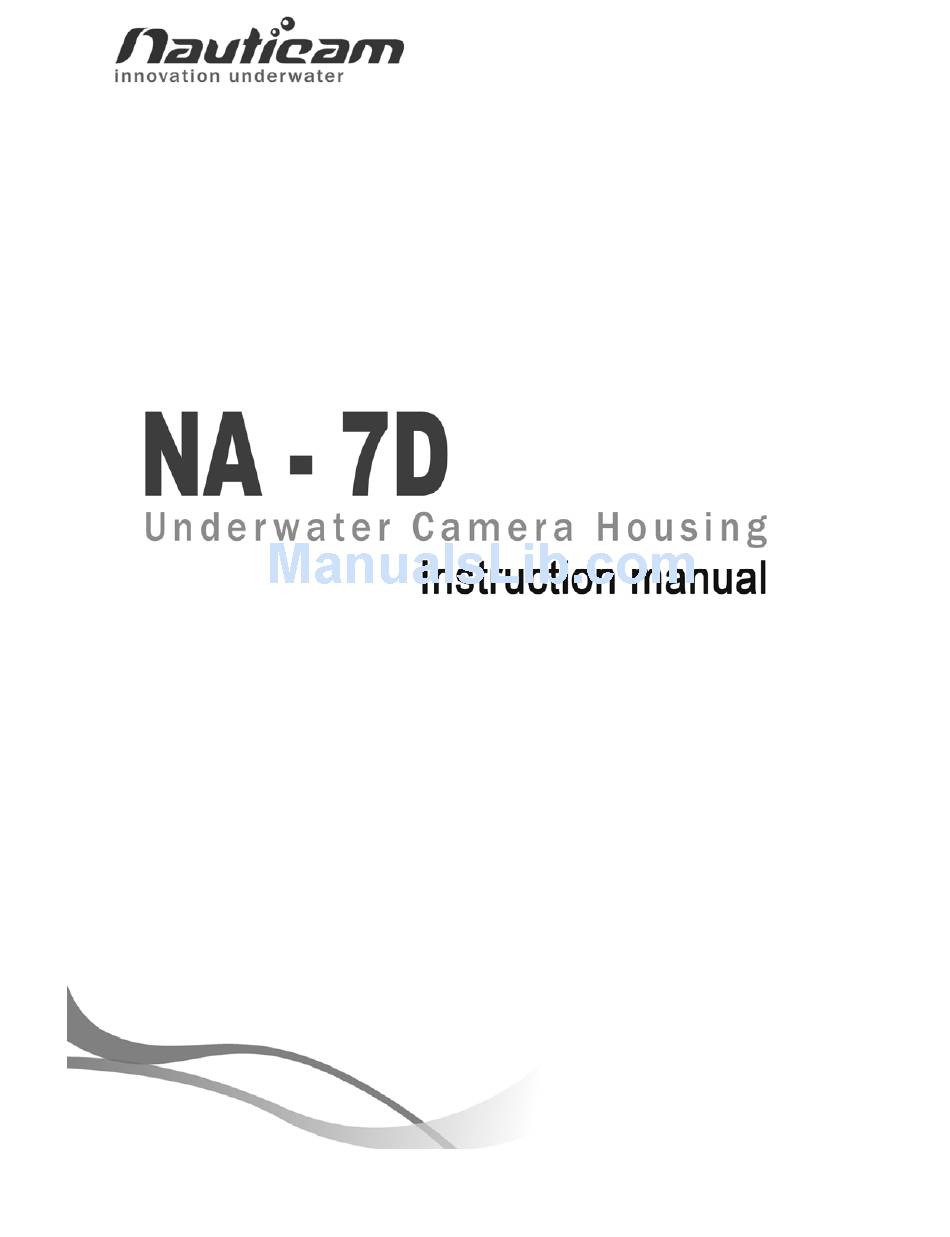

Nauticam NA-7D Instruction Manual

Nauticam NA-7D Instruction Manual

Underwater camera housing

Advertisement

Quick Links



Advertisement

loading
Need help?

Need help?

Do you have a question about the NA-7D and is the answer not in the manual?

Questions and answers

Summary of Contents for Nauticam NA-7D

  • Page 1 0   ...
  • Page 2     Thank you for your purchase of a NAUTICAM camera housing.      At NAUTICAM, we pride ourselves on the ability to recognise the requirements of  professional as well as amateur underwater photographers and fulfill them  through the innovative designs of our products.  We strive to achieve a high level  of user‐friendliness by allowing stress‐free installation and easy operation of all  important functions of the camera.    Each housing is individually inspected and water pressure tested to more than  100metres to ensure optimum quality.      Please read this manual carefully before using the housing, this will maximise its  performance as well as its lifetime.      1   ...
  • Page 3     1. All NAUTICAM Products are warranted against any material and manufacturing  defects for one year from the date of purchase for consumer use.  2. NAUTICAM accepts no liability for any damage to and defects in the housing  caused by improper use and/or poor maintenance; it is the responsibility of the  owner to carefully follow the instructions in this manual.  3. NAUTICAM does not hold responsibility for damage, of any nature, to any  equipment used with and/or placed within the housing.   4. NAUTICAM accepts no liability for any loss of captured images or the inability  to capture images even if it is due to the malfunctioning or leakage of the  housing.  5. This warranty only applies to products purchased from authorised NAUTICAM  dealers and does not extend beyond the original retail purchaser.  6. Unauthorised modifications and/or repairs of the housing will automatically  invalidate this warranty.  7. To return products for service, please contact our regional distributor,  normally you would need to notify them by email first and ship them the  product by registered mail, along with your contact details and a brief  description of the defect.        2   ...
  • Page 4   1. NA‐7D housing  2. Instruction manual  3. Spare silicone rubber main o‐ring  4. O‐ring remover  5. CR2032 battery (for moisture alarm)  6. Lubricant  7. Set of Allen keys    CR2032 battery  Spare silicone rubber o‐ring  O‐ring remover  Lubricant  Set of Allen keys  3   ...
  • Page 5     1. A water‐tight test without the camera inside the housing is highly  recommended when using the system for the first time and after the changing  of port and O‐ring(s).  2. Do not use lubricants from other brands with the silicone rubber O‐ring on this  housing, only use the lubricant provided by NAUTICAM.  3. Discontinue use immediately should you notice any leakage.  4. Store the housing in a robust, shock‐proof container during transportation;  avoid transporting with any equipment, such as a camera, inside the housing.  5. When travelling by air, do not close the housing if the port is installed, as this  may lead to a pressure difference between the atmosphere and inside the  housing.  6. Care must be taken when opening the housing, as pressure may build up inside  the housing which increases the opening force.  7. Do not open the product in a wet or sandy environment.  Protect the interior  from moisture and debris in order to prevent malfunction or leakage.   8. Do not store the product in an environment of high humidity.  9. Do not leave the housing and the camera in direct sunlight for prolonged  periods.   10. Keep out of reach of children, failure to do so could result in injury.  11. Defective products should be shipped to our distributors for service,  unauthorized disassembling and/or modifications could result in malfunction  or leakage.  4   ...
  • Page 6   Specifications  6  Identification of Parts  7  Preparation of the Housing  10  Opening and Closing the Housing  13  Installing the Camera  14  Mounting the Port  16  Changing the Viewfinder  18  Care and Maintenance  20  Optional Accessories  21      5   ...
  • Page 7   Housing body:    Aluminium alloy  Surface treatment:  Hard anodised  Construction  Display window:    Abrasion resistant polycarbonate  Grip handles:    Polycarbonate and rubber  Width:    348 mm  Dimensions  Height:    184 mm  Depth:    137 mm  Weight  Approx. 2.73 kg  (without camera)  Buoyancy  Slightly negative  Depth rating  100 metres  Moisture alarm:    Blinking LED and audible alarm  Viewfinder:    0.66X viewfinder  6‐pin bulkhead (optional)  TTL capability:    2 optical bulkheads utilising the camera’s  pop‐up flash as commander.  Features  Patented easy port installation system;  Port mount:  adaptors available for ports of other  manufacturers.  Specially designed for the easy access of  Piano keys:  the AF point selection/Magnify, AE  lock/Index/Reduce and the SET buttons.   ...
  • Page 8                                  5                                                                                                                                                   1  6  2    3    4    10  7  8  11   9                                                      1  Locking latches x 3  7  AF start lever  2  S‐6 6 pin bulkhead (optional)  8  Start/Stop lever  3  Grip handles x 2  9  Quick control dial  4  Port locking lever  10  Shutter release lever  Optical bulkheads for strobe  5  11  Main dial  connection x 2  Opening for optional accessories  6     ...
  • Page 9 12  19  13  20  21  14  15  16  17  22  18  23                24  25                                                                      AF point selection/Magnify  12  Mode dial  19  button  13  Quick control button  20  AE lock/Index/Reduce button  14  Menu button  21  Set button  15  Picture style selection button  22  Up, down, left, right selectors  16  Info button  23 ...
  • Page 10   27  28  29      30  26  31                             AF mode/Drive mode selection  26  On/off selector  29  button  ISO speed setting/Flash exposure  27  Multi‐function button  30  compensation button  Metering mode/White balance  Live View shooting/Movie  28  31  selection button  shooting selector        Tips :  The built‐in flash can be raised by setting the 7D camera to the Fully  Automatic Shooting mode and pressing the shutter release when the camera  is inside the housing.        9   ...
  • Page 11    1. After verifying that the main O‐ring is in good condition, lightly coat it with the  lubricant provided.  2. Make sure the O‐ring groove located in the front part of the housing is free  from any foreign material; the groove can be cleaned with the aid of a  microfiber cloth.  3. Place the main O‐ring into the groove by gently pushing it, first at the corners,  then the whole perimeter.  4. If necessary, spacers can be used to increase space between the grip handles  and the housing; please use the longer screws provided to attach the grip  handles and the spacers to the housing.  5. (Optional) To install the S‐6 6 pin bulkhead:    Unscrew the plug from the  threaded hole with a spanner.      Insert the 6 pin bulkhead through  the threaded hole.                                 10   ...
  • Page 12 iii. Tighten the 6 pin bulkhead with a  spanner.                    Connect the 6 pin bulkhead to the  accessory shoe plug.                  Slide the accessory shoe plug of  the housing into the accessory  shoe of the camera.                 11   ...
  • Page 13   Setting up the moisture alarm  2. Install the CR2032 battery provided  into  the  battery  compartment  on  the  circuit  board  inside  the  rear  part of the housing.    1. Test  the  alarm  by  contacting  the  two  wires  near  the  bottom  of  the  housing with a damped cotton bud;  the  alarm  should  start  giving  out  a  repeating “beep” sound along with  a ...
  • Page 14   1. With the front facing down, place the housing on a flat surface or in your lap.  2. When closing, make sure there is nothing caught between the closing surfaces  of the two halves of the housing.  3. The housing can be opened and closed by operating the three locking latches;  when opening, first operate the latch on the top of the housing then the two  on both sides simultaneously.  When closing the housing, operate the two side  latches first, then the one on the top.  4. After closing, check that the locking latches are properly engaged and the gap  between the two halves of the housing caused by the main O‐ring is evenly  spaced for the whole perimeter of the housing.  13   ...
  • Page 15                               1. Turn the locking lever on the tray  1. Remove the camera saddle from  the housing.  of the housing to the open      position.                            3. Attach the saddle to the camera  4. Mount the camera by sliding the    by tightening the screw to the  attached saddle along the rail in  tripod socket of the camera with  the housing until it cannot go in  a screwdriver or a coin.  any further.  14   ...
  • Page 16   Confirm that all the controls of the  housing are correctly engaged.    For removal of the camera from the  housing, reverse the above  procedures.                  7. Lock the camera into place by  turning the locking lever to the  “lock” position.    15   ...
  • Page 17     Please refer to the NAUTICAM system port chart for a range of compatible    ports; note that extension rings may be needed for certain lenses and adaptors  are available for the attachment of ports of other manufacturers.                                                                                                   1. Remove the O‐ring from the port,  inspect for any damage and lightly  coat it with the provided lubricant  before placing it back into its  groove..    2. Verify that the port opening of the  housing is clean and free from  foreign material.                                                                                                 3. Push the safety button of the port  locking lever downwards.              4. Turn the port locking lever to the  5. Align the mounting marks of the port  outward position.  and the housing; the marks appear as  white dots on both the port and the  housing.  6. Gently push the port into the opening  of the housing, until it cannot go in ...
  • Page 18       7. Lock the port into place by turning the  port locking lever to the inward    position.  To ensure that the port is    securely mounted, confirm that the  green line on the safety button of the    port locking lever is visible.      8. To remove the port from the housing,  simply turn the port locking lever to    the outward position and gently pull it  out.  17   ...
  • Page 19     In order that users can change to a preferred viewfinder easily, the 0.66X  viewfinder which comes with this housing is designed so that it can be removed  and re‐installed by following the simple steps described below.      To remove the viewfinder:             2. Remove the retainer O‐ring of the  1. Gently push the viewfinder from    viewfinder inside the rear half of  the inside of the housing.  the housing by making use of the      recess on the viewfinder.              18   ...
  • Page 20     To re‐install the viewfinder:                       3. Push the viewfinder from the  1. Lightly coat the O‐rings on the  outside of the housing until it  outer periphery of the  cannot go in any further.  viewfinder body with lubricant.  4. Place the retainer O‐ring of the  2. Align the viewfinder with the  viewfinder back from inside the  sleeve in the display window.  housing.    19   ...
  • Page 21     1. Soak the housing system in fresh water after each salt water use, during which  all control buttons/knobs should be operated a few times to avoid the  accumulation of salt residue; wipe the housing with a towel before opening.  2. After each day of diving, it is advisable to have the main O‐ring in the front part  of the housing removed from its groove with the O‐ring remover and  inspected for damage.  Also check that the O‐ring retains its original circular  shape; never stretch the O‐ring excessively or remove it with a sharp object.   The O‐ring groove should be cleaned to ensure it is free from any salt deposit  or foreign material; lightly coat the O‐ring with the provided lubricant before  reinstalling it in the groove.  A damaged O‐ring should be discarded  immediately and replaced only with one that is provided by NAUTICAM.  3. Replace the main O‐ring annually.  4. It is recommended that you ship the housing to our distributor for a complete  overhaul every year or after every 200 dives.  20   ...
  • Page 22               Nikonos 5‐pin bulkhead    Set of spacers             Enhanced 180° viewfinder  (with external dioptric adjustment knob)                        Strobe mounting set with lanyard  21   ...
