INSTRUCTION MANUAL
for Nauticam Cinema Gear Set for
Canon RF 24-70mm F/2.8L IS USM
PN# 16346
FORWORD
Thank you for your purchase of a NAUTICAM
product.
At NAUTICAM, we pride ourselves in the ability to
recognize the requirements of professional as well
as amateur underwater photographers and fulfill
them through the innovative designs of our
products. We strive to achieve a high level of user-
friendliness by allowing stress-free installation and
easy operation of all important functions of the
camera.
Each product is individually inspected and water
pressure tested to ensure optimum quality.
Please read this manual carefully before using the
product, this will maximize its performance as well
as its lifetime.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nauticam 16346
Summary of Contents for Nauticam 16346
- Page 1 PN# 16346 FORWORD Thank you for your purchase of a NAUTICAM product. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products.
- Page 2 Protect the interior from moisture with and/or placed within our products. and debris in order to prevent malfunction or NAUTICAM accepts no liability for any loss of leakage. captured images or the inability to capture images even if it is due to the malfunctioning of our •...

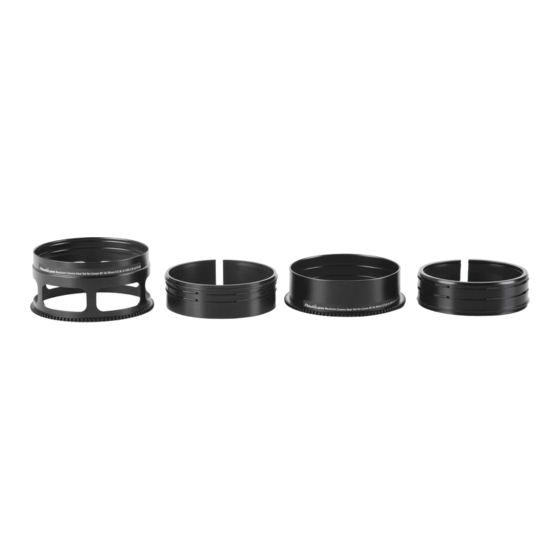

- Page 3 PACKAGE CONTENTS • Make sure that you have all the included items listed below before using this product. • If some items are missing or damaged, contact us and the local Nauticam dealer. Plastic C-ring for zoom gear RF2470-Z Cinema Zoom Gear...
- Page 4 IDENTIFICATION OF PARTS Plastic C-ring for zoom gear Plastic C-ring for focus gear RF2470-Z Cinema Zoom Gear RF2470-F Cinema Focus Gear Spare rubber grips...
- Page 5 MOUNT THE GEARS ON A LENS 1. Insert the plastic C-ring for zoom gear as shown and place it over the lens. 2. Insert the plastic C-ring for focus gear as shown and place it over the lens and plastic C-ring for zoom gear. 3.
- Page 6 MOUNT THE GEARS ON A LENS 4. Insert the zoom gear on a plastic C-ring for the zoom gear until it reaches the flange of the plastic C-ring. 5. To remove the Cinema Gear Set for Canon RF 24-70mm F/2.8L IS USM, reverse the above steps.
- Page 7 CONTROL THE GEAR 1. The Cinema Gear Set for Canon RF 24-70mm F/2.8L IS USM 2. Can be controlled by zoom/focus knobs of the housing. After mount the camera and lens (with gear installed) on the housing, confirm that the zoom/focus knobs operates correctly.
- Page 8 SPECIFICATIONS CARE AND MAINTENANCE #16346 Nauticam Cinema Gear Set for Canon RF • Soak the housing system in fresh water after 24-70mm F/2.8L IS USM each use, during which all control buttons/knobs should be operated a few times to avoid the Zoom gear : DIA102mm ×...
