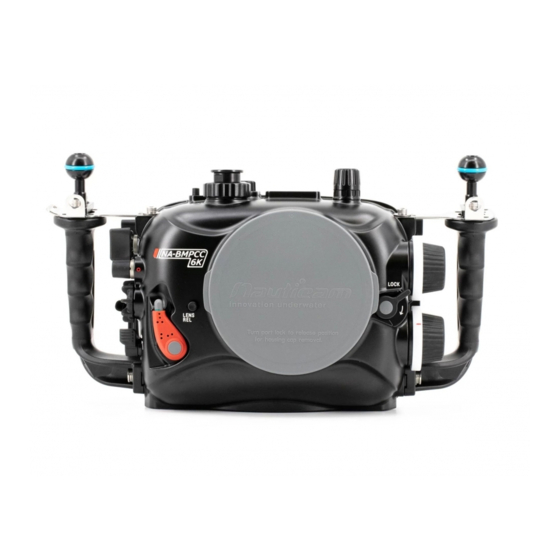

Summary of Contents for Nauticam NA-BMPCC6K

  • Page 2 Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
  • Page 3: Table Of Contents

    ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing the Camera …………………………………………………………………………………………. Preparation of the Battery Holder……………………………………………………………………… Preparation of External Drive (Samsung SSD T5)………………………………………………… Connecting with External Monitor ……………………………………………………………………...
  • Page 4: Warranty

    NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.
  • Page 5: Precautions

    O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage.
  • Page 6 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...
  • Page 7: Package Contents

    ACKAGE ONTENTS • NA-BMPCC6K Housing • 25625 M16 Vacuum Valve II • Battery Holder for 4x 18650 Batteries (excl. batteries) • 2x Handles and Mounting Balls • Spare 90134 Housing O-ring • O-ring Remover • CR2032 Battery (for Vacuum System) •...
  • Page 8: Specifications

    215mm Dimensions Depth: 160mm Weight in Water -0.5kg (Incl. Camera, Canon LP-E6 Battery) Weight in Air Approx. 3.9kg Depth Rating 100 m Port Mount N120 Nauticam Canon EF Port Chart Compatible Blackmagic Pocket Cinema Camera 6K (EF Lens Mount) Cameras...
  • Page 9: Identification Of Parts

    DENTIFICATION OF ARTS Mounting Ball x 2 Zoom/Focus Knob Port Lock Safety Button Lock/Release Lever Lens Release Button Port Lock Lever...
  • Page 10 ISO Lever Shutter Lever Record Button Setting Wheel Still Lever *Handles are not displayed...
  • Page 11 ¼ ‘’- 20UNC Threaded Holes x 15 On/Off Switch Function Buttons M28 Accessory Port M16 Accessory Port Port Alignment Index...
  • Page 12 Iris Button Mounting Points for Monitor hood WB Lever Focus Lever HFR Button Zoom Button Menu Button Housing Lock Safety Button Moisture Alarm Window Housing Lock...
  • Page 13 Attachment Points for Mounting Ball Sacrificial Zinc Anode 1/4”-20UNC Tripod Socket x3* *The maximum length of screws that can be used with the tripod sockets is 4mm.
  • Page 14: Opening And Locking The Housing

    PENING AND OCKING THE OUSING To open the housing: Always open and close the housing with the front facing down, place the housing on a flat surface or in your lap. The housing can be opened and closed by operating the two housing locks; when opening, press the safety buttons, then turn the locks outwards.
  • Page 15 To lock the housing: When closing, make sure there is nothing caught between the closing surfaces of the two halves of the housing. To close, turn the locks towards the housing, and then make sure they are locked in place securely.
  • Page 16: Preparation Of The Housing

    Prepar REPARATION OF THE OUSING 1. After verifying that the main O-ring is in good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;...
  • Page 17 Battery Installation: Press Press Insert the battery as shown above and To remove the battery, press the metal then press down the battery. plate as indicated and the battery will pop out. *Use only recommended battery with this product...
  • Page 18 2. Switch the alarm on. The LED light 3. Test the alarm by connecting the two wires will flash blue once and turn blue for near the bottom of the housing with a five seconds indicating the battery is damp cotton bud; the alarm should start normal.
  • Page 19 Vacuum valve: Vacuum valve is pre-install to the housing for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status Flash “Blue” light once Indicates a 2nd generation PCB Battery is normal, goes into flashing "Blue"...
  • Page 20 After start up LED indicator Status Standby mode. The moisture alarm is active, and Flashing "Blue" light the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light with Moisture is detected. beeping sound Some vacuum is detected, target vacuum level is Flashing "Yellow"...
  • Page 21: Installing The Camera

    NSTALLING THE AMERA To install the camera to the housing: Attach the saddle to the camera by Turn the tray locking lever to ‘open’ tightening the screw to the tripod position as shown. And remove the socket of the camera camera saddle from the housing by sliding it outwards.
  • Page 22 If installing camera with lens and Then slide the attached saddle along the rail in gear attached, turn the the housing to mount the camera Zoom/Focus Knob Lock Lever Lock the camera into place by turning the locking downward to 'release' position as lever to the ‘lock’...
  • Page 23: Preparation Of The Battery Holder

    Connect REPARATION OF THE BATTERY CAGE Turn the two locking levers outwards as shown. Remove the battery holder from the housing by sliding it outwards. 3. To open the battery cage, release the two locks by pressing them down. Press...
  • Page 24 Connect Install 4x 18650 Lithium batteries into the battery holder, make sure that the + and – signs match the symbols in the compartment. Place the battery cage inside the housing and secure the battery cage by turning the two locking levers as shown...
  • Page 25: Preparation Of External Drive (Samsung Ssd T5)

    Connect REPARATION OF XTERNAL RIVE (S SSD T5) AMSUNG Connect the Samsung SSD T5 with camera Loosen the screw on the external drive through USD3.1 Gen 2 type C to C cable holder. (PN:36336) before placing it into the holder. Secure the drive in position by tightening the screw.
  • Page 26: Connecting With External Monitor

    Connect ONNECTING WITH XTERNAL ONITOR (HDMI 2.0 C ABLE Unscrew the M28 accessory port cap Insert the HDMI 2.0 cable (#25078 M28A1R225- by turning it anti-clockwise M28A1R170) through the M28 port Remark: It’s recommended to install the cable first before installing the camera.
  • Page 27 Connect Gently push the cable into the M28 port Tighten the HDMI 2.0 cable by turning opening of the housing, until it cannot go the threaded working ring clockwise in any further * It is recommended to install lens and gear AFTER connecting HDMI 2.0 cable to the camera...
  • Page 28 Connect Before locking the camera tray in, connect Connect the battery holder cable and the HDMI 2.0 cable with the camera’s HDMI USB-C cable to the camera’s connectors port. accordingly as shown.
  • Page 29 Connect Lock the camera into place by turning the locking lever to the ‘lock’ position as shown. Confirm that all the controls of the housing are correctly engaged.
  • Page 30: Mounting The Port

    Connect OUNTING THE Please refer to the NAUTICAM system port chart for a range of compatible ports: 1. Remove the O-ring from the port, inspect for any damage and lightly coat it with the provided lubricant before placing it back into its groove.
  • Page 31 Connect 4. Turn the port locking lever to the Align the port mounting indicates of the port release position as shown. and the housing. Gently push the port into the port opening of the housing, until it cannot go in any further. Then lift housing cap.
  • Page 32 Connect Lock the port into place by turning the port locking lever to the inward position. To ensure that the port is securely mounted, confirm that the green line on the safety button of the port locking lever is visible.
  • Page 33: Resetting Vacuum System

    ESETTING ACUUM YSTEM It is required to reset the vacuum system when the vacuum level is dropped from target level to totally lost. i.e. when opening the housing or changing port To reset when changing port/lens: Release vacuum. Remove the port and lens from the housing and camera.
  • Page 34: Care And Maintenance

    O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. • Replace the main O-ring annually. It is recommended that you ship the housing to our distributor for...
  • Page 35: Optional Accessories

    PTIONAL CCESSORIES P.N. 28130 P.N. 17916 P.N. 25218 Hand Strap Monitor Hood Mounting Ball Set for Tripod for 28113 Handles P.N. 36336 P.N. 17959 USB 3.1 Gen 2 Type C to C Cable Housing Mounting Ball with with Connectors 1/4'' Screws (To use with Samsung SSD T5)
  • Page 36 Bright Monitor *25033 is included in NA- Adaptor connection from HDMI 058/502H/FHD5/502B-H bulkhead to camera) monitor housing) 17922 Nauticam Atomos Ninja V Housing HDMI 25078 M28A1R225-M28A1R170 HDMI 2.0 Cable Housing for Atomos Ninja V (for NA-BMPCCII/BMPCC6K/S1R/S1H to use with 17922/17909N) 5”...
