Nauticam 16335 Instruction Manual

16335
Nauticam Cinema Gear Set
for Laowa 24mm f/14 2x Macro Probe
16336 N120 Port Adaptor for Laowa 24mm
f/14 2x Macro Probe
Instruction Manual
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorized
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.
P -
RE CAUTIONS
·
After installation of the port adaptor and extension ring, please make
sure the O-ring (s) are free from debris and uneven surface issues.
·
A water-tight test without the camera inside the housing is highly
recommended after the changing of port and O-ring(s).
·
Do not use lubricants from other brands with the silicone rubber O-ring
on this housing, only use the lubricant provided by NAUTICAM.
·
Discontinue use immediately should you notice any leakage.
·
Do not open the product in a wet or sandy environment. Protect the
interior from moisture and debris in order to prevent malfunction or
leakage.
·
Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in
malfunction or leakage.

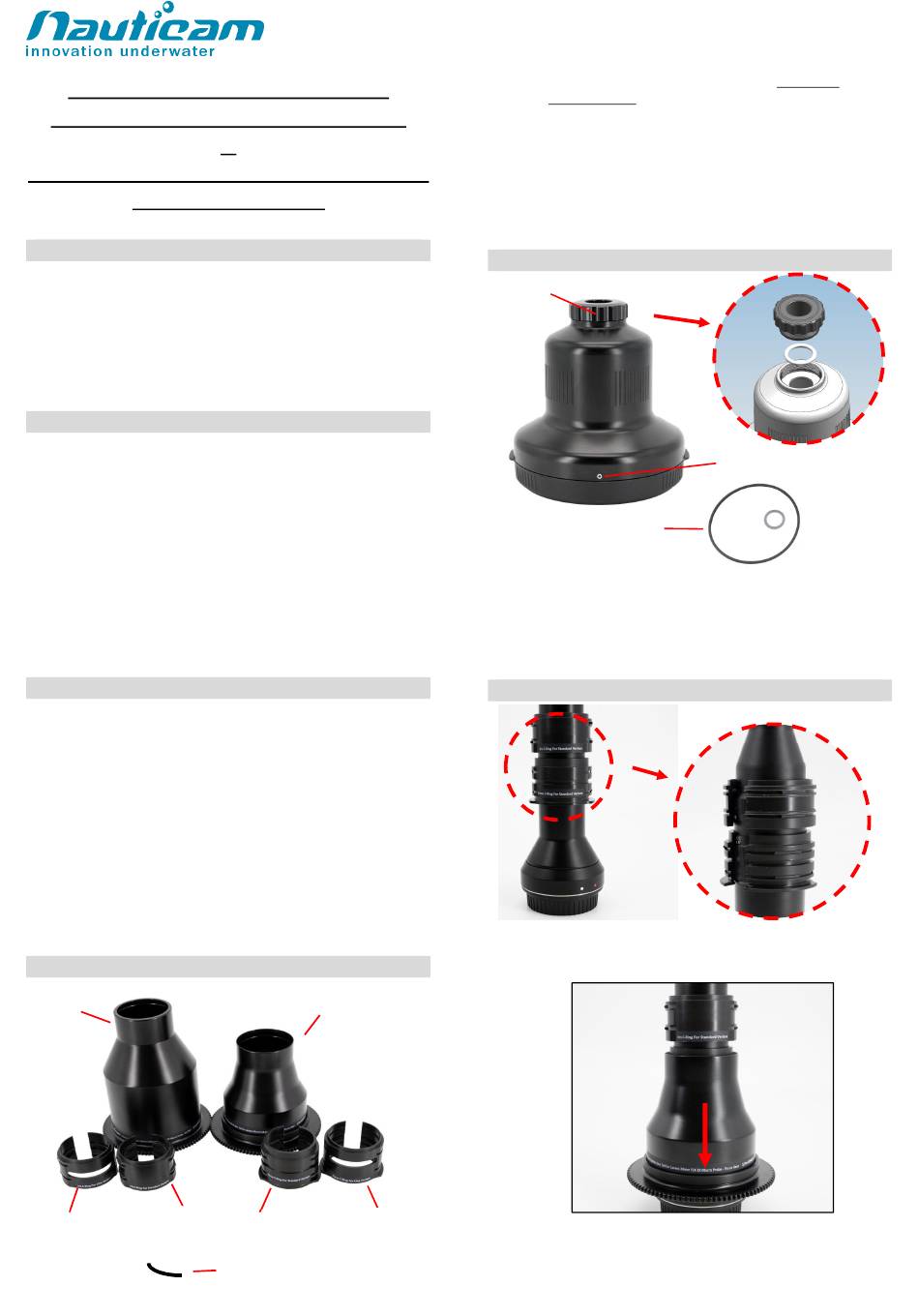

I 16335 P
DENTIFICATION OF
Iris gear
Iris C-ring
Iris C-ring
for Standard
for Cine
6x
&
ARTS
Focus gear
Focus C-ring
Focus C-ring
for Cine
for Standard
Spare Rubber grips
**16335 Nauticam Cinema Gear Set for Laowa 24mm f/14 2x
Macro Probe is designed for both Laowa 24mm cine version
and standard version Lenses to use with N120 cinema
housing, such as RED DSMC2, C200, EVA1 etc.
It Includes a set of Iris and Focus gear (controlled by zoom
and focus knob of the housing), and a set of Iris and Focus C-
Ring for cine version lens and another C-Ring set for standard
version as shown above.
Please use corresponding c-rings
I 16336 P
DENTIFICATION OF
Locknut
Spare O-rings

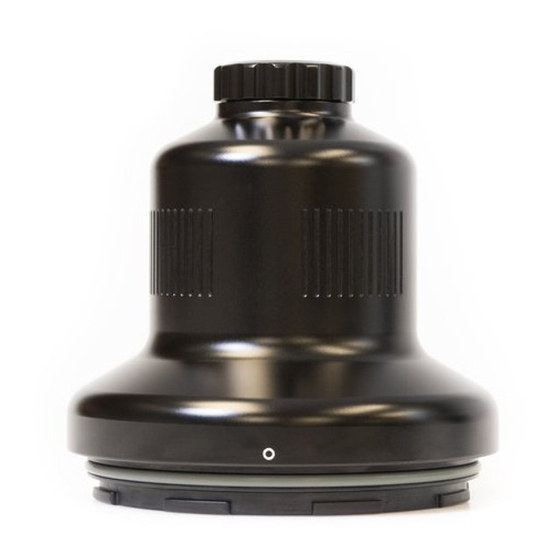

**16336 N120 Port Adaptor for Laowa 24mm f/14 2x Macro
Probe is designed for Laowa 24mm Lenses to use with N120
DSLR housing and N120 cinema housing.
This N120 port adaptor is necessary to use with an extension
ring 70, such as 21271 and 21170.
M G
OUNTING THE EAR ON A LENS
1. Insert the Focus c-ring and Iris C-ring in this order as
shown and place them over the lens
2. Insert the focus gear on the focus c-ring, then gently
push down the gear towards the bottom until it
cannot go any further.
ARTS
Alignment mark
Current as of 2019-04-09
