Summary of Contents for FRENCH FITNESS FFS-5SMJG

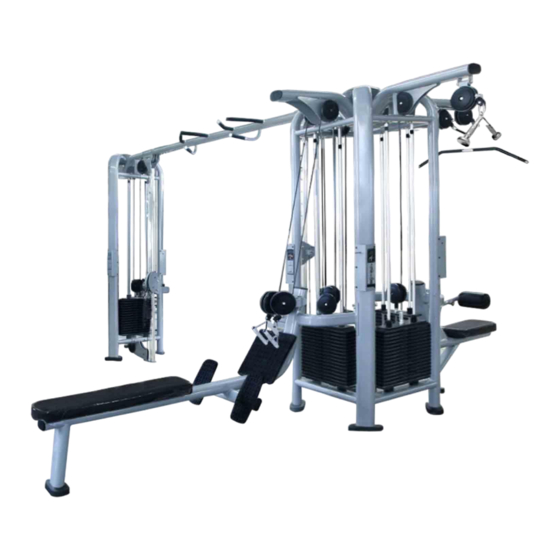

- Page 1 FFS-5SMJG / FFB-5SMJG FRENCH FITNESS FFS SILVER & FFB BLACK 5 STACK MULTI JUNGLE GYM ASSEMBLY MANUAL...
-
Page 2: Tech Specs
FEATURES • 11 Gauge Steel • Nylon-coated cable meets U.S. • 65 x 114 x 3mm Flat oval steel tube military specifications • Q235 steel frame ensures maximum • Fiberglass-impregnated nylon structural integrity pulleys feature sealed bearings • Each frame receives an electrostatic •... - Page 3 TABLE OF CONTENTS PARTS LIST ....................4 ASSEMBLY INSTRUCTIONS. BEFORE YOUR BEGIN ........7 CLEAN GUIDE RODS ..................8 ASSEMBLY INSTRUCTIONS. STEPS 1-11 ........... 9-19...
- Page 4 P A R T S L I S T ITEM DESCRIPTION QTY. Top Frame Three Top Frame One Main Frame Top Frame Four Top Frame Two Linking Tube Adjuster post Lable Placard Guide Post Footplate Long Seat Pad Short Seat Pad Lat Pull down Assembly Adjuster Plate 20lbs Weight Stack...
- Page 5 P A R T S L I S T Swivel Pulley Carriage Carriage Shround Pulley D114 Pulley D89 End Cap 40X80 End Cap 114X65 Cable 1 L2420mm Cable 2 L2780mm Cable 3 L8165mm Cable 4 L3325mm Retaining rings D25 Ring Pull Pin Assembly Bushing Bushing D10...
- Page 6 P A R T S L I S T ITEM DESCRIPTION QTY. T10-4 Allen Bolt M10X20 L10-5 Hex Head Bolt M10X25 D4-1 Socket Set Screw M4X3 D4-5 Socket Set Screw M4X10 D6-3 Socket Set Screw M6X8 D8-10 Socket Set Screw M8X50 K10-12 Countersunk Head Screw M10X60 KL4-5...
- Page 7 ASSEMBLY INSTRUCTIONS. BEFORE YOUR BEGIN BEFORE YOUR BEGIN: This exercise equipment is built for optimum safety. Be sure to Read the entire manual before you assemble or operate your equipment. Please note the following safety precautions: 1. Keep Children and pets away from the equipment at all times. Do not leave children unattended in the same room with the equipment.
- Page 8 C L E A N G U I D E R O D S Step must be completed prior to installing. Failure to do so can leave residue from packaging and other sources stuck in the bushings Guide rods need to make sure they are cleaned prior to installation otherwise this will cause the top plate to get stuck.
- Page 9 A S S E M B L Y I N S T R U C T I O N S . S T E P 1 INFORMATION • We recommend you have someone assist you in lifting and assembling your gym. •...
- Page 10 A S S E M B L Y I N S T R U C T I O N S . S T E P 2...
- Page 11 A S S E M B L Y I N S T R U C T I O N S . S T E P 3 NOTE: In this step, all the washers and nuts which are not marked are F10 and P10...
- Page 12 A S S E M B L Y I N S T R U C T I O N S . S T E P 4...
- Page 13 A S S E M B L Y I N S T R U C T I O N S . S T E P 5 NOTE: In this step, all the washers and nuts which are not marked are F10 and P10...
- Page 14 A S S E M B L Y I N S T R U C T I O N S . S T E P 6 NOTE: In this step, all the washers and nuts which are not marked are F10 and P10...
- Page 15 A S S E M B L Y I N S T R U C T I O N S . S T E P 7 NOTE: In this step, all the washers and nuts which are not marked are F10 and P10...
- Page 16 A S S E M B L Y I N S T R U C T I O N S . S T E P 8...
- Page 17 A S S E M B L Y I N S T R U C T I O N S . S T E P 9...
- Page 18 A S S E M B L Y I N S T R U C T I O N S . S T E P 1 0 NOTE: In this step, all the washers and nuts which are not marked are F10 and P10...
- Page 19 A S S E M B L Y I N S T R U C T I O N S . S T E P 1 1...
