Introduction
EXPAND YOUR VT5831 SYSTEM. YOUR BASE WILL WORK
WITH UP TO 6 HANDSETS!!!
IMPORTANT:

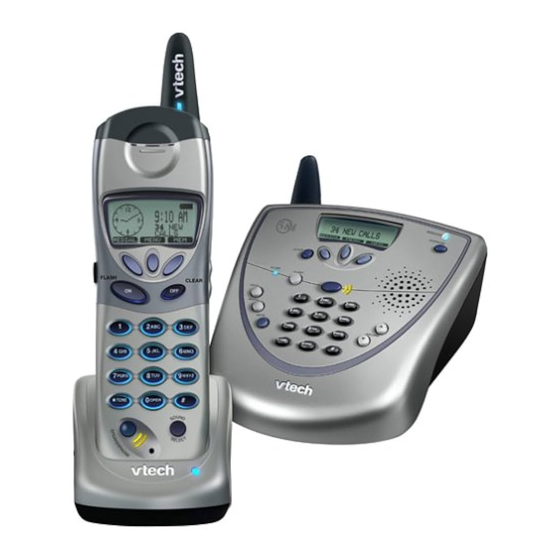

The VT5820 is an Accessory Handset for use with the VT5831 system.
You must have this model in order to use the VT5820 Accessory Handset.
This manual is designed to familiarize you with the VT5820 Accessory
Handset setup, registration and basic functions. For detailed operational
instructions, please refer to the VT5831 User's Manual.
To order additional system Handsets (model# VT5820), battery packs, or
headsets, call VTech Communications Inc at 1-800-595-9511.
If you have questions about this product, or if you're
having difficulty with setup or operation, do not return
your phone to the store. Call our Customer Support
Center at:
In Canada, call
STOP!!
1-800-595-9511
1-800-267-7377
1
Advertisement
Table of Contents
Related Manuals for VTech vt5820
Summary of Contents for VTech vt5820
- Page 1 IMPORTANT: The VT5820 is an Accessory Handset for use with the VT5831 system. You must have this model in order to use the VT5820 Accessory Handset. This manual is designed to familiarize you with the VT5820 Accessory Handset setup, registration and basic functions. For detailed operational instructions, please refer to the VT5831 User's Manual.
-
Page 2: Important Safety Instructions
Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock Unplug this product from the wall outlet and refer servicing to VTECH under the following conditions: A. When the power supply cord or plug is damaged or frayed. - Page 3 Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. VTECH COMMUNICATIONS INC Customer Service: 1-800-595-9511.
- Page 4 Setup Registration And Operation Of The VTECH VT5820 Accessory Handset Your VTECH VT5831 system can operate up to 6 Handsets. The VTECH accessory Handset consists of the following: Handset Handset Charger Telephone Line Cord Belt Clip Mounting Bracket Battery Pack...
-
Page 5: Installation Of Battery Pack In Handset
Installation of Battery Pack in Handset As you register additional Handsets to the system, they will be assigned extension numbers in the following order: HANDSET 2, HANDSET 3, HANDSET 4, and so forth. Whenever a charged Handset battery pack is installed, the Handset will automatically begin SEARCHING FOR BASE (if previously registered), or it will prompt you to ENTER BASE ID to register the new Handset. - Page 6 If the Handset displays REJECTED BY BASE or continues to display SEARCHING FOR BASE for well beyond 60 seconds, try the registration process again by repeating the above steps. Congratulations! You can now enjoy the benefits of your VTECH Multi-Handset system.
-
Page 7: The Handset Layout
The Handset Layout Antenna Earpiece Headset Jack (2.5mm) On (Flash) Dialing Keys (0-9, Speakerphone Message Waiting LED LCD Display Soft Keys Volume Off (Clear) , #) Sound Select Microphone... -
Page 8: Handset Indicators
Handset is either not registered, or is searching for the Base Unit. Handset LEDs Description Message • Blinks to indicate that you have new voicemail messages. Waiting Service must be subscribed to through your local telephone company. 02 indicates that the Base and 12 indicates that... -
Page 9: Headset Operation
Headset Operation Your VT5820 cordless Handset is equipped with a 2.5mm Headset Jack for use with an optional accessory Headset for hands-free operation. If you choose to use the Headset option, you must obtain an optional accessory Headset, which is compatible with the VT5820. - Page 10 Maintenace Taking Care Of Your Telephone Your VT5820 cordless telephone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment Place the Handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it.
-
Page 11: In Case Of Difficulty
In Case Of Difficulty If you have difficulty operating your phone, the suggestions below should solve the problem. If you still have difficulty after trying these suggestions, call VTECH Communications at 1-800-595-9511. In Canada, call VTECH Electronics at 1-800-267-7377. The Phone Doesn't Work At All •... - Page 12 You Hear Other Calls While Using Your Phone • Disconnect your Base Unit from the telephone jack, and plug in a regular telephone. If you still hear other calls, the problem is probably in your wiring or local service. Call your local telephone company.
-
Page 13: Warranty Statement
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or 4. Product to the extent that the problem is caused by use with non-VTECH electrical accessories; or 5. Product whose warranty/quality stickers, Product serial numbers plates or... - Page 14 • If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTECH will notify you and will request that you authorize the cost of repair prior to any further repair activity.
- Page 15 • In no event shall VTECH be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits...
-
Page 16: Fcc, Acta And Ic Regulations
This equipment is compatible with inductively coupled hearing aids. Should you experience trouble with this telephone equipment, please contact: VTech Communications Inc CUSTOMER SERVICE at 1-800-595-9511. In Canada, call VTech Electronics Ltd. at 1-800-267-7377. For repair/warranty information. The telephone company may ask you to disconnect this equipment from the line network until the problem has been corrected. - Page 17 FCC, ACTA and IC Regulations FCC Part 68 and ACTA If this equipment was approved for connection to the telephone network prior to July 23, 2001, it complies with Part 68 of the Federal Communications Commission (FCC) rules. If the equipment was approved after that date, it complies with the Part 68 rules and with Technical Requirements for Connection of Equipment to the Telephone Network adopted by the Administrative Council for Terminal Attachments (ACTA).
- Page 18 If advance notice is not practical, you will be notified as soon as possible. You will be given the opportunity to correct the problem and the telephone company is required to inform you of your right to file a complaint with the FCC.
-
Page 19: The Rbrc Seal
Users should not attempt to make such connections themselves, but should contact the appropriate electrical inspection authority, or electrician, as appropriate. Your VT5820 is designed to operate at the maximum power allowed by the FCC and IC. This means your Handset and Base Unit can communicate only over a certain distance - which will depend on the location of the Base Unit and Handset, weather, and the construction and layout of your home or office. -
Page 20: Technical Specifications
Technical Specifications FREQUENCY CONTROL Crystal controlled PLL synthesizer TRANSMIT FREQUENCY Base : 5744.736-5825.952 MHz Handset : 2401.056-2482.272 MHz RECEIVE FREQUENCY Base : 2401.056-2482.272 MHz Handset: 5744.736 - 5825.952 MHz CHANNELS 95 Channels NOMINAL EFFECTIVE RANGE Maximum power allowed by FCC and IC. - Page 21 A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc.; Beaverton, Oregon. Distributed in Canada by VTech Electronics Canada Ltd., Suite 200, 7671 Alderbridge Way, Richmond, B.C. V6X 1Z9. Copyright 2002 for VTECH TELECOMMUNICATIONS LTD.
