VTech VSP600 Administrator And Provisioning Manual

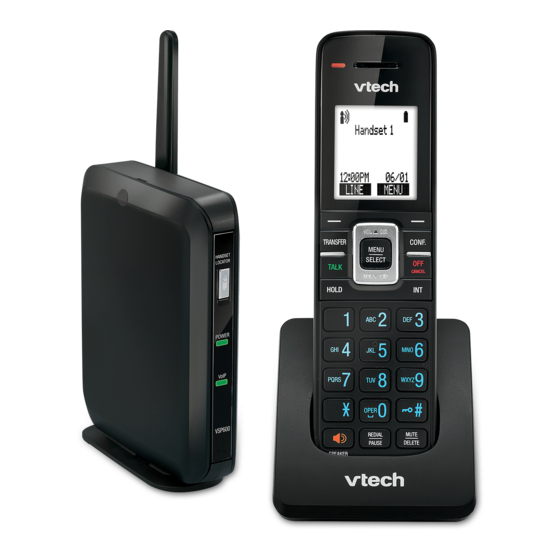

Dect sip cordless base station and handset
Hide thumbs Also See for VSP600:
Table of Contents

Advertisement

Quick Links

Download this manual

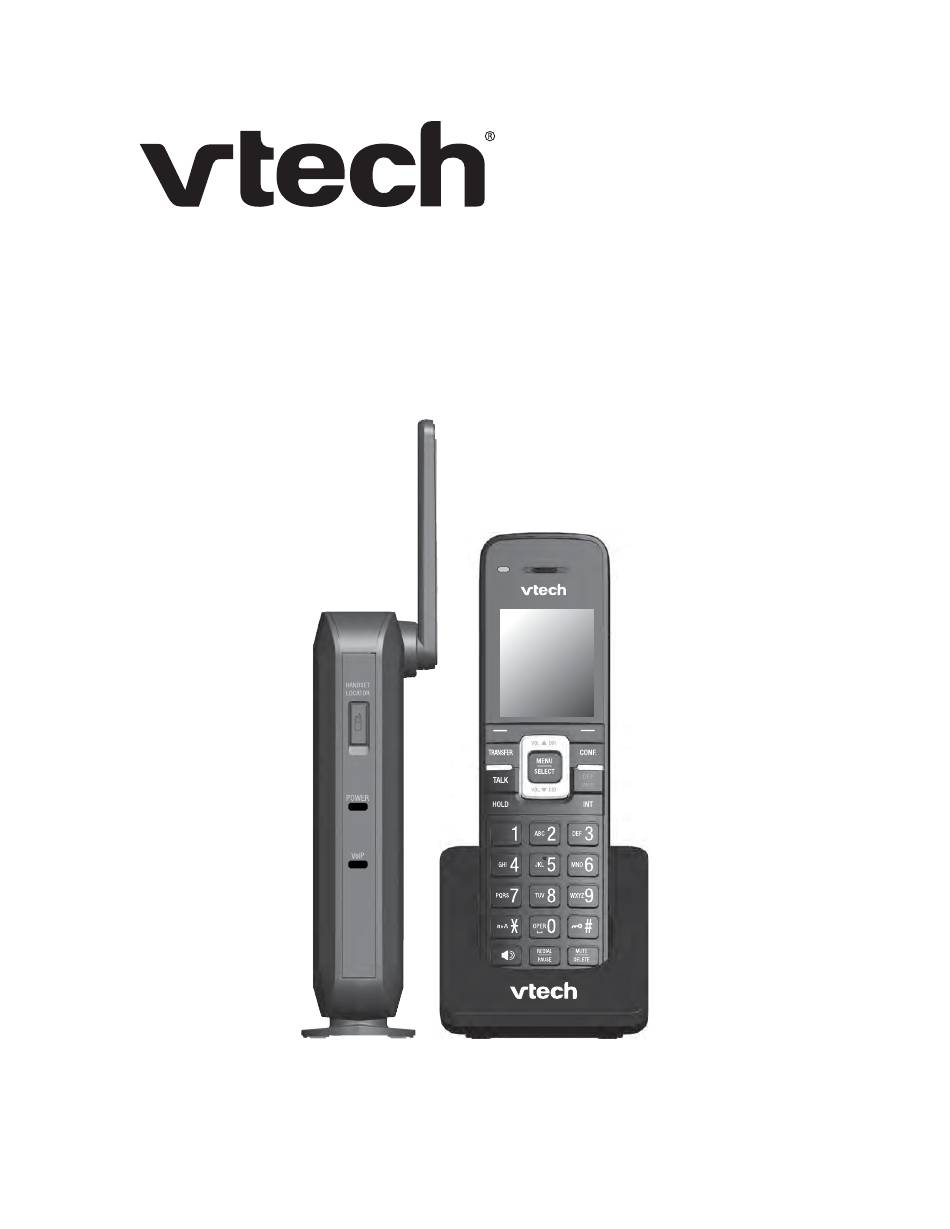

Administrator and Provisioning Manual
VSP600
VSP601
DECT SIP Cordless Base Station and Handset
VSP600
Rev. 4 10/14
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSP600 and is the answer not in the manual?

Questions and answers

Related Manuals for VTech VSP600

Summary of Contents for VTech VSP600

  • Page 1 Administrator and Provisioning Manual VSP600 VSP601 DECT SIP Cordless Base Station and Handset VSP600 Rev. 4 10/14 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 2 Purchase date: ________________________________ Place of purchase: _____________________________ Both the model and serial numbers of your VTech product can be found on the bottom of the base station and inside the battery compartment of the handset. Save your sales receipt and original packaging in case it is necessary to return your product for warranty service.

  • Page 3: Table Of Contents

    VSP600/VSP601 Administrator and Provisioning Manual Table of contents Introduction ....................5 Audience ....................5 Related documents ..................5 About the base station................. 5 Getting Started....................7 Quick Reference Guide ................7 Network Requirements..................8 Configuring the Base Station ................9 Using the Handset Menu ................10...
  • Page 4 VSP600/VSP601 Administrator and Provisioning Manual Data Files ....................63 Configuration File Guide................64 Guidelines for the MAC-Specific Configuration File ........64 Securing Configuration Files with AES Encryption ........64 Troubleshooting ....................66 Specifications ....................67 Appendix A: Configuration File Settings ............68 “sip_account” Module: SIP Account Settings ..........68 General Configuration File Settings ............68...

  • Page 5: Introduction

    The documents are available from our website at businessphones.vtech.com. About the base station The VTech VSP600 base station is designed to work with popular SIP telephone (IP PBX) equipment and services. Once you have ordered and configured your SIP equipment or service, the base station and DECT cordless handsets enable you to make and receive calls as you would with any other business phone.
  • Page 6 VSP600/VSP601 Administrator and Provisioning Manual You can configure the base station using a browser-based interface called the WebUI, or an automatic provisioning process (see Provisioning Using Configuration Files on page 61). The WebUI enables you to configure the base station using a PC that is connected to the same Local Area Network.

  • Page 7: Getting Started

    VSP600/VSP601 Administrator and Provisioning Manual Getting Started Quick Reference Guide The external features of the base station and handset are described below. Antenna Wall mount slot (on top) Handset Locator and registration button Use only AC Adapter input Supplied Adapter...

  • Page 8: Network Requirements

    VSP600/VSP601 Administrator and Provisioning Manual Network Requirements A switched network topology is recommended for your LAN (using standard 10/100 Ethernet switches that carry traffic at a nominal rate of 100 Mbit/s). The office LAN infrastructure should use Cat.-5/Cat.-5e cable. The base station requires a wired connection to the LAN. However, wireless connections to other devices (such as laptops) in your office will not impede performance.

  • Page 9: Configuring The Base Station

    Most of the settings accessible on the handset are most useful for end users. The handset menus allow users to customize the screen appearance, sounds, and the handset name. For more information, see the VSP600/VSP601 User Guide. Configuring the Base Station...

  • Page 10: Using The Handset Menu

     Admin settings—configure network settings (enter static IP addresses, for example) and account settings. This guide contains instructions for using the Admin Settings menu and for accessing the Status menu. See the VSP600/VSP601 User Guide for more information about the other menus. To use the handset menu: 1.

  • Page 11: Status

    VSP600/VSP601 Administrator and Provisioning Manual Status Use the status menu to verify network settings and begin troubleshooting if network problems or account registration issues affect operation. You can also find the software version of the handset and base station on the Product Info screen, which is available from the Status menu.

  • Page 12: Viewing Line Status

    VSP600/VSP601 Administrator and Provisioning Manual Viewing Line status When you select Line from the Status menu, the Line menu appears, listing the available lines along with icons indicating each line’s current registration status. Line John 201 Dawn 202 Larry 203...

  • Page 13: Using The Admin Settings Menu

    VSP600/VSP601 Administrator and Provisioning Manual Using the Admin Settings menu To access the Admin Settings menu: 1. When the handset is idle, press MENU/SELECT. The Main Menu appears. Main Menu Message Directory Call history Intercom BACK ENTER 2. Press  or  to highlight Admin settings, and then press MENU/SELECT.

  • Page 14: Network Setting

    VSP600/VSP601 Administrator and Provisioning Manual Network Setting Use the Network setting menu to configure network-related settings for the base station. To use the Network setting menu: 1. From the Admin Settings menu, press  or  to highlight Network setting, and then press MENU/SELECT.
  • Page 15 VSP600/VSP601 Administrator and Provisioning Manual Set static IP IP Address: 0.0.0.0 Subnet Mask: 0.0.0.0 BACK 3. Press  and enter the Subnet Mask. Use the dial pad to enter characters. 4. Press  and enter the Gateway. Use the dial pad to enter characters.

  • Page 16: Provisioning Menu

    VSP600/VSP601 Administrator and Provisioning Manual Others DNS1: 10.88.162.31 DNS2: 10.88.162.10 ENTER 2. Enter the IP address for the primary DNS server. Use the dial pad to enter characters. To add a period, press the * key. 3. Press  and enter the IP address for the secondary DNS server. The deskset uses this server if the primary server does not respond.

  • Page 17: Edit Pin Code

    VSP600/VSP601 Administrator and Provisioning Manual The format of the URL must be RFC 1738 compliant, as follows: “<schema>://<user>:<password>@<host>:<port>/<url-path>” “<user>:<password>@” may be empty. “<port>” can be omitted if you do not need to specify the port number. 3. Press  to move to the next line and enter the Login ID for access to the provisioning server if it is not part of the server string.

  • Page 18: Using The Webui

    VSP600/VSP601 Administrator and Provisioning Manual Using the WebUI The Web User Interface (WebUI) resides on the base station. You can access it using an Internet browser. After you log in to the WebUI, you can configure the base station and handsets on the following pages: ...

  • Page 19: Saving Your Settings

    VSP600/VSP601 Administrator and Provisioning Manual 3. On your computer, open an Internet browser. (Depending on your browser, some of the pages presented here may look different and have different controls. Ensure that you are running the latest update of your preferred browser.) 4.

  • Page 20: Webui: Status

    VSP600/VSP601 Administrator and Provisioning Manual WebUI: Status On the Status pages, you can view network status and general information about the base station and handsets. Some of the information on the Status pages is also available on the Status menu available on the handset.

  • Page 21: Handset Status

    VSP600/VSP601 Administrator and Provisioning Manual Handset Status The handset status page shows the name and registration status of cordless handsets. The page lists the maximum of six handsets, even if fewer handsets are registered. If you have not given the handsets unique names, the default name of “HANDSET”...

  • Page 22: Webui: System

    VSP600/VSP601 Administrator and Provisioning Manual WebUI: System SIP Account Management On the SIP Account Management pages, you can enter the account settings for each line you have ordered from your service provider. Each line has its own Account settings page.
  • Page 23 VSP600/VSP601 Administrator and Provisioning Manual User identifier Enter the User identifier supplied by your service provider. The User ID, also known as the Account ID, is a SIP URI field used for SIP registration. It is also used as part of the caller ID displayed for outgoing calls.

  • Page 24: Dial Plan

    VSP600/VSP601 Administrator and Provisioning Manual Dial Plan The dial plan consists of a series of dialing rules, or strings, that determine whether what the user has dialed is valid and when the handset should dial the number. Dialing rules must consist of the elements defined in the table below.
  • Page 25 VSP600/VSP601 Administrator and Provisioning Manual SIP Server Settings Setting Description Server address Enter the IP address or domain name for the SIP server. Server port Enter the port number that the SIP server will use. Registration Settings Setting Description Server address Enter the IP address or domain name for the registrar server.
  • Page 26 VSP600/VSP601 Administrator and Provisioning Manual Backup Outbound Proxy Settings Setting Description Server address Enter the IP address or domain name for the backup proxy server. Server port Enter the port number that the backup proxy server will use. Audio Settings...
  • Page 27  UDP (User Datagram Protocol) is generally less prone to latency, but SIP data may be subject to network congestion.  TLS (Transport Layer Security)—the VSP600 supports secured SIP signalling via TLS. Optional server authentication is supported via user-uploaded certificates. TLS certificates are uploaded using the configuration file.
  • Page 28 VSP600/VSP601 Administrator and Provisioning Manual Feature Access Codes Settings If your IP PBX service provider uses feature access codes, then enter the applicable codes here. Setting Description Voicemail Enter the voicemail access code. The code is dialed when the user selects an account from the handset’s Message menu.
  • Page 29 VSP600/VSP601 Administrator and Provisioning Manual Voicemail Settings Setting Description Enable MWI Subscription When enabled, the account subscribes to the “message summary” event package. The account may use the User ID or the service provider’s “Mailbox ID”. Mailbox ID Enter the URI for the mailbox ID. The base station uses this URI for the MWI subscription.
  • Page 30 VSP600/VSP601 Administrator and Provisioning Manual NAT Traversal Setting Description Enable STUN Enables or disables STUN (Simple Traversal of UDP through NATs) for account x. The Enable STUN setting allows the base station to identify its publicly addressable information behind a NAT via communicating with a STUN server.

  • Page 31: Call Settings

    VSP600/VSP601 Administrator and Provisioning Manual Call Settings You can configure call settings for each account. Call Settings include Do Not Disturb and Call Forward settings. The call settings are also available as parameters in the configuration file. See “call_settings” Module: Call Settings on page 96.
  • Page 32 VSP600/VSP601 Administrator and Provisioning Manual Call Forward Setting Description Enable Call Forward Always Enables or disables call forwarding for all incoming calls on that account. Select to enable. Target Number Enter a number to which all incoming calls will be forwarded.

  • Page 33: User Preferences

    VSP600/VSP601 Administrator and Provisioning Manual User Preferences On the User Preferences page, you can set the language that appears on the WebUI. The Preferences page is also available to users when they log on to the WebUI. The user preference settings are also available as parameters in the configuration file.

  • Page 34: Signaling Settings

    VSP600/VSP601 Administrator and Provisioning Manual Signaling Settings The signalling settings are also available as parameters in the configuration file. See “network” Module: Network Settings on page 81. After entering information on this page, click to save it. Voice Click the link for each setting to see the matching configuration file parameter in Appendix A: Configuration File Settings.

  • Page 35: Handset Settings

    The Handset Settings allow you to configure account assignments and names for the cordless handsets that are registered to the base station. For more information on registering cordless handsets, see the VSP600/VSP601 User Guide. The network settings are also available as parameters in the configuration file. See “hs_settings”...

  • Page 36: Handset Name

    VSP600/VSP601 Administrator and Provisioning Manual Handset Name On the Handset Name page, you can enter a name for each Handset. The Handset Name will be used throughout the WebUI and will appear on the handset Idle screen. The Handset Name is limited to a maximum of 11 characters.

  • Page 37: Webui: Network

    VSP600/VSP601 Administrator and Provisioning Manual WebUI: Network You can set up the base station for your network configuration on the Network settings page. Your service provider may require you to configure your network to be compatible with its service, and the base station settings must match the network settings.

  • Page 38: Advanced Network Settings

    VSP600/VSP601 Administrator and Provisioning Manual Advanced Network Settings VLAN You can organize your network and optimize VoIP performance by creating a virtual LAN for base stations and related devices. Click the link for each setting to see the matching configuration file parameter in Appendix A: Configuration File Settings.
  • Page 39 VSP600/VSP601 Administrator and Provisioning Manual 802.1x Setting Description Enable 802.1x Enables or disables the 802.1x authentication protocol. This protocol allows the base station to attach itself to network equipment that requires device authentication via 802.1x. Identity Enter the 802.1x EAPOL identity.

  • Page 40: Webui: Contacts

    , or a page number to view the desired page of entries. NOTE: Each handset also has its own directory. You can add entries to the handset directory using the handset. For more information, see the VSP600/VSP601 User Guide. WebUI: Contacts...
  • Page 41 VSP600/VSP601 Administrator and Provisioning Manual The following table describes the buttons available on the Local Directory page. Click To… Sort the list by last name. Edit information for an entry View the next page of entries. View the last page of entries.
  • Page 42 VSP600/VSP601 Administrator and Provisioning Manual To add a new directory entry: 1. Click The Create Base Directory Entry page appears. 2. Enter the required information as described in the following table. Create Local Directory Entry Setting Description Range Default First Name Enter the appropriate names in these fields.

  • Page 43: Directory Import/Export

    VSP600/VSP601 Administrator and Provisioning Manual Directory Import/Export The best way to create a directory file for import is to first export the directory from the base station. After exporting the file, open it in an .xml editor and add or modify entries.

  • Page 44: Blacklist

    , or a page number to view the desired page of entries. NOTE: You can also use the handset menu to manage blacklist entries. For more information, see the VSP600/VSP601 User Guide. WebUI: Contacts VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 45 VSP600/VSP601 Administrator and Provisioning Manual The following table describes the buttons available on the Blacklist page. Click To… Sort the list by last name. Edit information for an entry View the next page of entries. View the last page of entries.

  • Page 46: Blacklist Import/Export

    VSP600/VSP601 Administrator and Provisioning Manual Create Blacklist Entry Setting Description Range Default First Name Enter the appropriate names in Blank these fields. The maximum length of Last Name the first name and last name fields is 15 characters. Account Sets the account used when you dial...

  • Page 47: Webui: Servicing

    VSP600/VSP601 Administrator and Provisioning Manual WebUI: Servicing Reboot To manually reboot the base and apply settings that you have updated, click Time and Date On the Time and Date page, you can manually set the time and date, and the time and date formats.
  • Page 48 VSP600/VSP601 Administrator and Provisioning Manual Network Time Settings Click the link for each setting to see the matching configuration file parameter in Appendix A: Configuration File Settings. Default values and ranges are listed there. Setting Description Enable Network Time Enables or disables getting time and date information for the base station from the Internet.
  • Page 49 VSP600/VSP601 Administrator and Provisioning Manual Daylight Savings Offset User-defined DST is enabled, this specifies the daylight savings adjustment (in minutes) to be applied when the current time is between Daylight Savings Start and Daylight Savings End. Use DHCP Enable Network Time...

  • Page 50: Firmware Upgrade

    Appendix A: Configuration File Settings. Default values and ranges are listed there. Setting Description Base Firmware URL The URL where the VSP600 Base Station firmware update file resides. This should be a full path, including the filename of the firmware file. Handset Firmware URL The URL where the VSP601 Handset firmware update file resides.
  • Page 51 VSP600/VSP601 Administrator and Provisioning Manual Manual Firmware Update and Upload On the Manual Firmware Update Settings page, you can upgrade the base station firmware using a file located on your computer or local network. To update the firmware using a file on your computer or local network: 1.

  • Page 52: Provisioning

    VSP600/VSP601 Administrator and Provisioning Manual Provisioning Provisioning refers to the process of acquiring and applying new settings for the base station using configuration files retrieved from a remote computer. After a base station is deployed, subsequent provisioning can update the base station with new settings;...
  • Page 53 VSP600/VSP601 Administrator and Provisioning Manual Provisioning Settings Setting Description Provisioning server URL of the provisioning file(s). The format of the URL must be RFC 1738 compliant, as follows: “<schema>://<user>:<password>@ <host>:<port>/<url-path>” “<user>:<password>@” may be empty. “<port>” can be omitted if you do not need to specify the port number.
  • Page 54 VSP600/VSP601 Administrator and Provisioning Manual Vendor Class ID (DHCP 60) DHCP Option 60 is available to send vendor-specific information to the DHCP Server. User Class Info (DHCP 77) DHCP Option 77 is available to send vendor-specific information to the DHCP Server.
  • Page 55 VSP600/VSP601 Administrator and Provisioning Manual Passphrase If the configuration file has been secured using AES encryption, enter the 16-bit key. See Securing Configuration Files with AES Encryption on page 64. Import Configuration You can configure the base station by importing a configuration file from your computer or your local network.

  • Page 56: Security

    VSP600/VSP601 Administrator and Provisioning Manual You can use the exported file as a general configuration file, and duplicate the settings across multiple units. However, ensure that you edit the file to remove any MAC-specific SIP account settings before applying the general configuration file to other units.
  • Page 57 VSP600/VSP601 Administrator and Provisioning Manual User Password You can set the user password on the WebUI or by using provisioning. For more information on using provisioning to set the user password, see “profile” Module: Password Settings on page 100. To change the User password: 1.

  • Page 58: Certificates

    VSP600/VSP601 Administrator and Provisioning Manual Certificates You can upload an optional web server certificate to the base station to establish a secure connection between base station and server. If a certificate is not available, the base station’s self-signed certificate will be used during the connection transaction.

  • Page 59: System Logs

    VSP600/VSP601 Administrator and Provisioning Manual System Logs On the Syslog page, you can enter settings related to system logging activities. It supports the following logging modes:  Syslog server  Volatile file Under Network Trace, you can capture network traffic related to the base station’s activity and save the capture as a .pcap file.
  • Page 60 VSP600/VSP601 Administrator and Provisioning Manual The logging levels are:  CRITICAL: Operating conditions to be reported or corrected immediately (for example, an internal component failure or file system error).  ERROR: Non-urgent failures—unexpected conditions that won't cause the device to malfunction.

  • Page 61: Provisioning Using Configuration Files

    VSP600/VSP601 Administrator and Provisioning Manual Provisioning Using Configuration Files Provisioning using configuration files allows you to place a configuration file on a provisioning server, where the base station can retrieve the file and update its configuration automatically. Configuration files have the extension .cfg and contain parameters that define various base station settings.

  • Page 62: Base Station Restart

     General file: <model>.cfg.  MAC-specific file: <model>_<MAC Address>.cfg. The <model> variable is the VTech product model: VSP600, for example. If the provisioning URL specifies both a path and filename, then the base station fetches only the configuration file specified.

  • Page 63: Configuration File Types

    The filename formats for both files are:  General file: <model>.cfg  MAC-specific file: <model>_<MAC Address>.cfg The <model> variable is the VTech product model; for example, VSP600. For more information about the MAC-specific configuration file, see Guidelines for the MAC- Specific Configuration File on page 64.

  • Page 64: Configuration File Guide

    The file name must contain the base station’s MAC address, which is printed on a label on the bottom of the base station. For example, a VTech VSP600 base station with the MAC address of 00:11:A0:10:6F:2D would download the VSP600_0011A0106F2D.cfg file.
  • Page 65 VSP600/VSP601 Administrator and Provisioning Manual To encrypt a configuration file: 1. (Optional) Place your configuration file in the same folder as the openssl executable file. If the configuration file is not in the same folder as the openssl executable file, you can enter a relative pathname for the [infile] in the next step.

  • Page 66: Troubleshooting

    VSP600/VSP601 Administrator and Provisioning Manual Troubleshooting If you have difficulty with your base station, please try the suggestions below. For businessphones.vtech.com customer service, visit our website at or call 1 (888) 370-2006 The DECT handset doesn’t register. “Registration failed” appears on the screen.

  • Page 67: Specifications

    VSP600/VSP601 Administrator and Provisioning Manual Specifications RF frequency band: 1921.536–1928.448 MHz Channels: Operating temperature: 32–122 °F (0–50 °C) Power requirements: Base: 5.0 Vdc @ 800 mA Handset charger: 6.0 Vdc @ 300 mA Handset: 2.4 V 550/750 mAh, Ni-MH battery pack Power over Ethernet: IEEE 802.3at supported, class 2...

  • Page 68: Appendix A: Configuration File Settings

    You can add up to six accounts for each base station. Each account requires you to configure the same group of SIP account settings. The SIP account settings for each account are identified by the account number, from 1 to 6 for the VSP600 base station, for example.
  • Page 69 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.inter_digit_timeout Description: Sets the inter-digit timeout (in seconds) for account x. The inter- digit timeout sets how long the device waits after the last digit is entered before dialing the number. Values: 1–10 Default: Setting: sip_account.x.maximum_call_number...
  • Page 70 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.primary_registration_server_address Description: Sets the registration server IP address for account x. Values: Text string Default: Blank Setting: sip_account.x.primary_registration_server_port Description: Sets the registration server port for account x. Values: 1–65535 Default: 5060 Setting: sip_account.x.primary_registration_expires Description: Sets the expiration time (in seconds) of the current registration for account x.
  • Page 71 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.backup_outbound_proxy_server_address Description: Sets the backup outbound proxy server IP address for account x. Values: Text string Default: Blank Setting: sip_account.x.backup_outbound_proxy_server_port Description: Sets the backup outbound proxy server port for account x. Values: 1–65535 Default:...
  • Page 72 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.codec_priority.5 Description: Sets the fifth highest-priority codec for account x. Values: none, g711u, g711a, Default: g722 g729, g726, g722 Setting: sip_account.x.voice_encryption_enable Description: Enables or disables SRTP voice encryption for account x. Values: 0 (disabled), 1 (enabled)
  • Page 73 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.local_sip_port Description: Sets the Local SIP port for account x. Values: 1–65535 Default: Account 1: 5060 Account 2: 5070 Account 3: 5080 Account 4: 5090 Account 5: 5100 Account 6: 5200 Setting: sip_account.x.transport_mode Description: Sets the Signalling Transport Mode for account x.
  • Page 74 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.access_code_cfa_off Description: Sets the Call Forward All OFF feature access code for account x. Values: Text string Default: Blank Setting: sip_account.x.access_code_cfna_on Description: Sets the Call Forward No Answer ON feature access code for account x.
  • Page 75 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.access_code_anonymous_call_block_off Description: Sets the Anonymous Call Block OFF feature access code for account x. Values: Text string Default: Blank Setting: sip_account.x.access_code_outgoing_call_anonymous_on Description: Sets the Anonymous Outgoing Call ON feature access code for account x.
  • Page 76 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.mwi_ignore_unsolicited Description: Enables or disables ignoring of unsolicited MWI notifications— notifications in addition to, or instead of SUBSCRIBE and NOTIFY methods—for account x. Disable if MWI service is configured on the voicemail server and does not involve a subscription to a voicemail server.
  • Page 77 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.music_on_hold_enable Description: Enables or disables a hold-reminder tone that a far-end caller hears when put on hold during a call on account x. Values: 0 (disabled), 1 (enabled) Default: Setting: sip_account.x.network_conference_enable Description: Enables or disables network conferencing for account x.

  • Page 78: Mac-Specific Configuration File Settings

    VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.check_trusted_certificate Description: Enables or disables accepting only a trusted TLS certificate for account x. Values: 0 (disabled), 1 (enabled) Default: Setting: sip_account.x.use_first_trusted_certificate_for_all Description: Enables or disables accepting the first TLS certificate for all accounts.
  • Page 79 VSP600/VSP601 Administrator and Provisioning Manual Setting: sip_account.x.authentication_name Description: Sets the authentication name for account x. Depending on your service provider’s specifications, this could be identical to the user ID. Specific to the MAC configuration file. Values: Text string Default: Blank Setting: sip_account.x.authentication_password...

  • Page 80: Hs_Settings" Module: Handset Settings

    The Handset Settings allow you to configure account assignments and names for the cordless handsets that are registered to the base station. For more information on registering cordless handsets, see the VSP600/VSP601 User Guide. All the cordless handset settings are included in the MAC-specific configuration file.

  • Page 81: Network" Module: Network Settings

    VSP600/VSP601 Administrator and Provisioning Manual “network” Module: Network Settings The network settings follow the format: network.[element]. General Configuration File Settings Setting: network.rtp.port_start Description: Sets the Local RTP port range start. Values: 1–65535 Default: 18000 Setting: network.rtp.port_end Description: Sets the Local RTP port range end.
  • Page 82 VSP600/VSP601 Administrator and Provisioning Manual Setting: network.lldp_med.interval Description: Sets the LLDP-MED packet interval (in seconds). Values: 1–30 Default: Setting: network.eapol.enable Description: Enables or disables 802.1x EAPOL. Values: 0 (disabled), 1 (enabled) Default: Setting: network.eapol.identity Description: Sets the 802.1x EAPOL identity.

  • Page 83: Mac-Specific Configuration File Settings

    VSP600/VSP601 Administrator and Provisioning Manual MAC-Specific Configuration File Settings Setting: network.nat.masquerading_enable Description: Enables or disables IP masquerading. Values: 0 (disabled), 1 (enabled) Default: Setting: network.nat.public_ip_addr Description: Sets the public IP address. Values: Text string (IPv4) Default: Blank Setting: network.nat.public_sip_port Description: Sets the public SIP port.
  • Page 84 VSP600/VSP601 Administrator and Provisioning Manual Setting: network.ip.static_ip_addr Description: Sets a static IP address for the network. Values: Text string (IPv4) Default: Blank Setting: network.ip.subnet_mask Description: Sets the subnet mask for the network. Values: Text string (IPv4) Default: Blank Setting: network.ip.gateway_addr Description: Sets the Gateway IP address.

  • Page 85: Provisioning" Module: Provisioning Settings

    VSP600/VSP601 Administrator and Provisioning Manual “provisioning” Module: Provisioning Settings The provisioning settings follow the format: provisioning.[element]. All these settings are exported when you manually export the configuration from the base station. All the provisioning settings are included in the general configuration file.
  • Page 86 VSP600/VSP601 Administrator and Provisioning Manual Setting: provisioning.server_username Description: Sets the authentication name for the provisioning server. Values: Text string Default: Blank Setting: provisioning.server_password Description: Sets the authentication password for the provisioning server. Values: Text string Default: Blank Setting: provisioning.dhcp_option_enable Description: Enables or disables using DHCP options for locating the configuration and firmware files.
  • Page 87 VSP600/VSP601 Administrator and Provisioning Manual Setting: provisioning.resync_mode Description: Sets the mode of the device’s provisioning/firmware file check. This determines which files the device retrieves when the resync process begins. Values: config_only, Default: config_and_firmware firmware_only, config_and_firmware Setting: provisioning.bootup_check_enable Description: Enables or disables bootup check for configuration and firmware files.
  • Page 88 VSP600/VSP601 Administrator and Provisioning Manual Setting: provisioning.crypto_passphrase Description: Sets the AES encryption passphrase for decrypting the configuration file(s). Enter the key that was generated when you encrypted the file. Values: Text string Default: Blank Setting: provisioning.check_trusted_certificate Description: Enables or disables accepting only a trusted TLS certificate for access to the provisioning server.

  • Page 89: Time_Date" Module: Time And Date Settings

    VSP600/VSP601 Administrator and Provisioning Manual “time_date” Module: Time and Date Settings The time and date settings follow the format: time_date.[element]. All these settings are exported when you manually export the configuration from the base station. All the time and date settings are included in the general configuration file.
  • Page 90 VSP600/VSP601 Administrator and Provisioning Manual America/Port_of_Spain, America/St_Johns, America/Godthab, America/Argentina/Buenos_Aires, America/Fortaleza, America/Sao_Paulo, America/Noronha, Atlantic/Azores, GMT, America/Danmarkshavn, Atlantic/Faroe, Europe/Dublin, Europe/Lisbon, Atlantic/Canary, Europe/London, Africa/Casablanca, Europe/Tirane, Europe/Vienna, Europe/Brussels, Europe/Zagreb, Europe/Prague, Europe/Copenhagen, Europe/Paris, Europe/Berlin, Europe/Budapest, Europe/Rome, Europe/Luxembourg, Europe/Skopje, Europe/Amsterdam, Africa/Windhoek, Europe/Tallinn, Europe/Helsinki, Asia/Gaza, Europe/Athens, Asia/Jerusalem, Asia/Amman,...
  • Page 91 VSP600/VSP601 Administrator and Provisioning Manual Setting: time_date.daylight_saving_user_defined Description: Enables or disables manual daylight savings configuration. Values: 0 (disabled), 1 (enabled) Default: Setting: time_date.daylight_saving_start_month Description: Sets the month that daylight savings time starts. Values: January–December Default: March Setting: time_date.daylight_saving_start_week Description: Sets the week that daylight savings time starts.
  • Page 92 VSP600/VSP601 Administrator and Provisioning Manual Setting: time_date.daylight_saving_end_week Description: Sets the week that daylight savings time ends. Values: 1–5 Default: Setting: time_date.daylight_saving_end_day Description: Sets the day that daylight savings time ends. Values: Sunday, Monday, Tuesday, Default: Sunday Wednesday, Thursday, Friday, Saturday Setting: time_date.daylight_saving_end_hour...

  • Page 93: Log" Module: Log Settings

    VSP600/VSP601 Administrator and Provisioning Manual “log” Module: Log Settings The log settings control system logging activities. The following logging modes are supported:  Serial/Console  Syslog server  Volatile file The log settings follow the format: log.element. All the log settings are included in the general configuration file.

  • Page 94: Web" Module: Web Settings

    VSP600/VSP601 Administrator and Provisioning Manual “web” Module: Web Settings The web settings control the web server IP, port, and security settings. The web settings follow the format: web.element. All the web settings are included in the general configuration file. Setting: web.http_port...

  • Page 95: User_Pref" Module: User Preference Settings

    VSP600/VSP601 Administrator and Provisioning Manual “user_pref” Module: User Preference Settings The user settings are accessible to the user. These settings are useful for initial setup. You may wish to remove these settings from auto-provisioning update files so that users do have their own settings overwritten.

  • Page 96: Call_Settings" Module: Call Settings

    VSP600/VSP601 Administrator and Provisioning Manual “call_settings” Module: Call Settings The call settings configure data related to a user’s call preferences. The data is stored internally at /mnt/flash/CallSettings.xml. All the call settings (except one) follow the format: call_settings.account.x.[element] where x is an account number ranging from 1 to 6.
  • Page 97 VSP600/VSP601 Administrator and Provisioning Manual Setting: call_settings.account.x.call_fwd_always_target Description: Sets the Call Forward Always target number for account x. Values: Text string Default: Blank Setting: call_settings.account.x.call_fwd_busy_enable Description: Enables or disables Call Forward Busy for account x. Values: 0 (disabled), 1 (enabled)

  • Page 98: File" Module: Imported File Settings

    VSP600/VSP601 Administrator and Provisioning Manual “file” Module: Imported File Settings The “file” parameters enable the provisioning file to import additional configuration files of various types, including:  Contact lists  Security certificates The following certificates are supported:  Per-account TLS certificate (you can choose to use the Account 1 certificate for all accounts) ...

  • Page 99: Mac-Specific Configuration File Settings

    VSP600/VSP601 Administrator and Provisioning Manual MAC-Specific Configuration File Settings Setting: file.contact.directory.append Description: URL of contact directory to be imported. Entries in the imported file will be added to existing directory entries. Values: Text string Default: Blank Setting: file.contact.directory.overwrite Description: URL of contact directory to be imported. Entries in the imported file will replace all existing directory entries.

  • Page 100: Profile" Module: Password Settings

    VSP600/VSP601 Administrator and Provisioning Manual “profile” Module: Password Settings The password settings allow you to set the default administrator and user passwords in the configuration file. The administrator password is usually included in the general configuration file, while the user password is usually included in the MAC- specific configuration file.

  • Page 101: Maintenance

    VSP600/VSP601 Administrator and Provisioning Manual Maintenance Taking care of your products  Your base station and handsets contain sophisticated electronic parts, so you must treat them with care.  Avoid rough treatment.  Place the handset down gently.  Save the original packing materials to protect your base station and handsets if you ever need to ship them.

  • Page 102: Important Safety Information

    VSP600/VSP601 Administrator and Provisioning Manual Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock.

  • Page 103: Industry Canada

    VSP600/VSP601 Administrator and Provisioning Manual Industry Canada Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation. The term “IC:” before the certification/registration number only signifies that the Industry Canada technical specifications were met.

  • Page 104: Fcc Part 15

    VSP600/VSP601 Administrator and Provisioning Manual FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 105: Gpl License Information

    VTech Parties make no representations with respect to the origin, accuracy, usability, or usefulness of such code, and the VTech Parties have no responsibility to you whatsoever concerning the code, including without limitation any responsibility to provide explanation, support, upgrade, or any communication whatsoever.
