Summary of Contents for VTech IP 811
-
Page 2: Important Safety Instructions

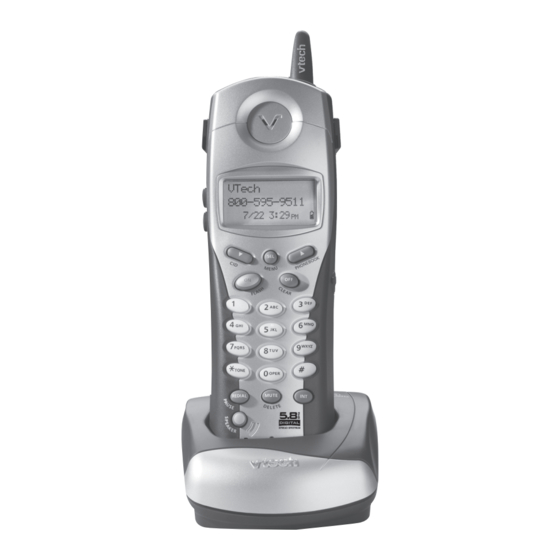

Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. - Page 3 Your IP 811 is an accessory handset for use with the You must have one of these base units in order to use the accessory handset. This manual is designed to familiarize you with the IP 811 accessory handset setup, registration and basic functions. For detailed instructions, please refer...
-
Page 4: Parts Check List
3. Charger Wall Mounting Bracket To purchase replacement batteries, visit us on the web at www.vtechphones.com or call VTech Communications, Inc. at 1-800-595-9511. In Canada, call VTech Telecommunica- tions Canada Ltd. at 1-800-267-7377. NOTE: Use only VTech batteries (part number 89-1324-00-00). -
Page 5: The Handset Layout
The Handset Layout Antenna Earpiece Volume Control CID (Scroll Down) On (Flash) Voicemail Dialing Keys (0-9, , #) Redial (Pause) Speakerphone LCD Display Select (Menu) Phonebook (Scroll Up) Headset jack (2.5mm) Off (Clear) Intercom Mute (Delete) -
Page 6: Getting Started
Setup Connecting Power to Handset Charger Because the IP 811 is an accessory handset to the is choose the location for your handset charger and plug in the power supply into an electrical outlet. CAUTION: Use only the VTech power supply provided with your telephone. -
Page 7: Wall Mounting
Setup Charging of the Handset Battery The handset of your cordless telephone is powered by a rechargeable battery. It charges automatically whenever the handset is in its charger. You should charge the battery for 10-12 hours when you first receive your phone. You will know the battery needs charging when: •... -
Page 8: Registration
Registration Your IP 811 is an accessory handsets for use with the register your IP 811 for the first time: 1. After charging the battery, the screen will display: 2. Enter the 15 digit base unit ID code, located on the... -
Page 9: Basic Operation
Handset Indicators Handset Icons Icon Description MUTE • Turns on when the microphone is muted. • Turns on when there are new call log entries. • Turns on when the ringer is muted. • Low battery indicator and charging indicator. Handset LEDs Description •... -
Page 10: Advanced Operation
Headset Operation Headset Operation Your IP 811 handset is equipped with a 2.5mm headset jack for use with an optional accessory headset for handsfree conversations. If you choose to use the headset option, you must obtain an optional accessory headset that is compatible with the IP 811. -
Page 11: Additional Information
Maintenance Taking Care Of Your Telephone Your cordless telephone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment Place the handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it. Avoid water Your telephone can be damaged if it gets wet. -
Page 12: In Case Of Difficulty
In Case Of Difficulty The Phone Doesn’t Work At All • Make sure the power cord is plugged in. • Make sure the Ethernet cable is plugged firmly into the base unit and the broadband connection. • Make sure the batteries are properly charged. If you get a LOW BATTERY message or indication, the batteries need charging. -
Page 13: Warranty Statement
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or 4. Product to the extent that the problem is caused by use with non-VTech electrical accessories; or 5. Product whose warranty/quality stickers, Product serial numbers plates or elec tronic serial numbers have been removed, altered or rendered illegible;... -
Page 14: Other Limitations
• If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you authorize the cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty. - Page 15 FCC, ACTA, and IC Regulations This equipment complies with Parts 15 of the Federal Communications Commission (FCC) rules for the United States. It also complies with regulations RSS210 and CS-03 of Industry and Science Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 16: Fcc, Acta, And Ic Regulations
FCC, ACTA, and IC Regulations Notice: This equipment meets the applicable Industry Canada Terminal Equipment Technical Speci- fications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Confor- mity indicating that Industry Canada technical specifications were met. -
Page 17: Technical Specifications
Technical Specifications FREQUENCY CONTROL Crystal controlled PLL synthesizer TRANSMIT FREQUENCY Base: 5725 - 5850 MHz Handset: 2400 - 2483.5 MHz RECEIVE FREQUENCY Base: 2400 - 2483.5 MHz Handset: 5725 - 5850 MHz CHANNELS 95 Channels NOMINAL EFFECTIVE RANGE Maximum power allowed by FCC and IC. -
Page 18: Table Of Contents
Table Of Contents IMPORTANT SAFETY INSTRUCTIONS ... 1 Parts Check List ... 3 The Handset Layout ... 4 GETTING STARTED ... 5 Set Up ... 5 Connecting Power to Handset Charger ... Installation of Battery ... Charging of the Handset Battery ... IMPORTANT ... -
Page 19: Need Help
Congratulations on your purchase of this VTech product NEED HELP? Our representatives are here to help you with any questions concerning the operation of this product, available accessories, or any other related issues. Call Toll Free: 1-800-595-9511 In Canada, Call:... - Page 20 VTECH TELECOMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications, Inc. Beaverton, Oregon, 97008 Distributed in Canada by VTech Telecommunications Canada Ltd., Richmond, B.C. V6X 1Z9. Copyright 2005 for VTECH TELECOMMUNICATIONS LTD.
