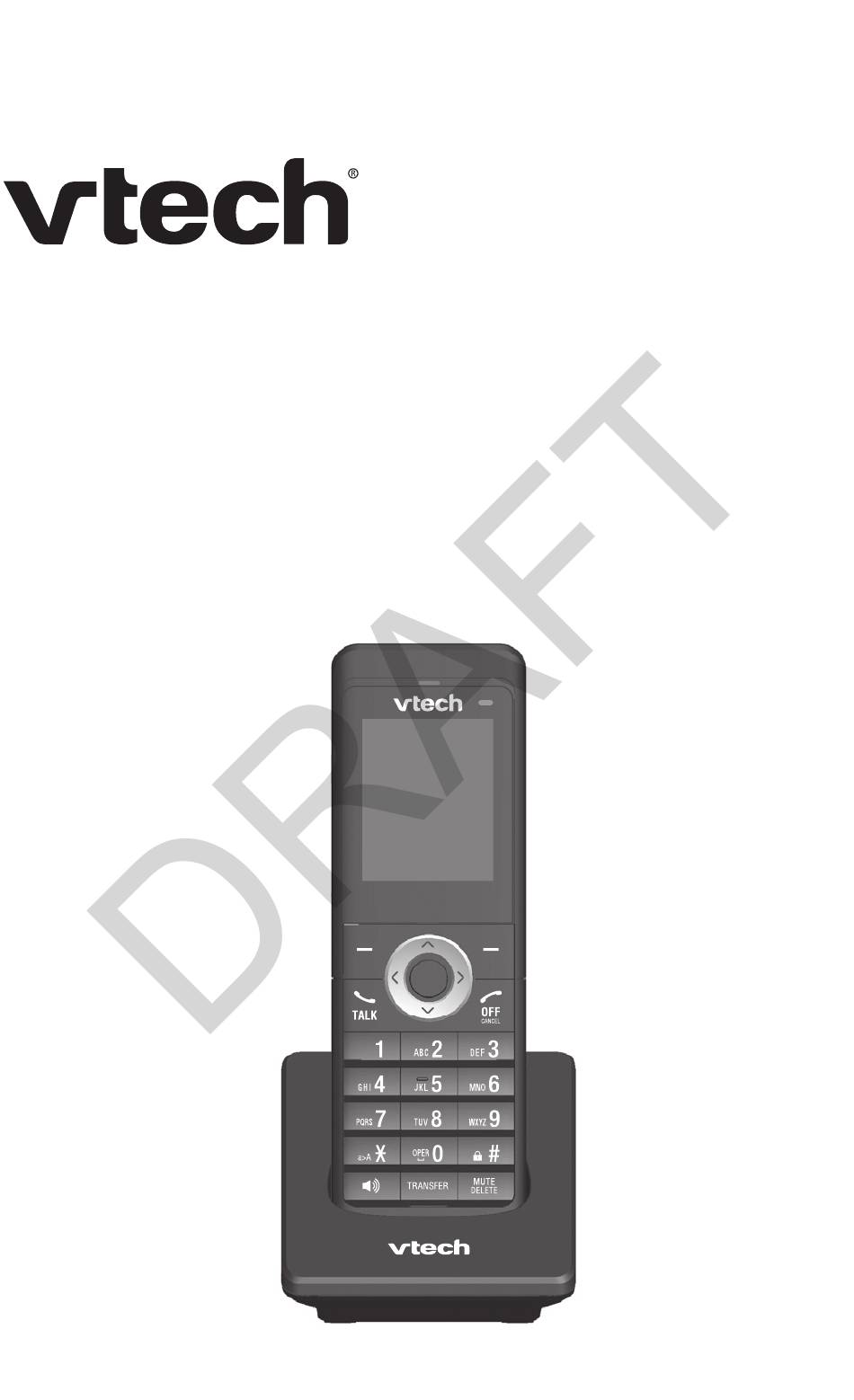

- Page 1 ErisTerminal SIP DECT Cordless Color Handset ® VDP801 Quick Start Guide...
-
Page 2: Important Safety Information
Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and... - Page 3 this product where the cord may be walked on. 11. Never push objects of any kind into this product through the slots in the base station or handset because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any kind on the product.
- Page 4 A spark in such an environment could create a fire or explosion. Such environments might include: medical use of oxygen without adequate ventilation; industrial gases (cleaning solvents; gasoline vapors; etc.); a leak of natural gas; etc. 17. Only put the handset of your telephone next to your ear when it is in normal talk mode.
- Page 5 Compliance FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of FCC rules.
- Page 6 Industry Canada This Class B digital apparatus complies with Canadian requirements: CAN ICES-3 (B)/NMB-3(B). Cet appareil numérique de la classe B est conforme à la norme CAN ICES-3 (B)/NMB-3(B) du Canada. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...
-
Page 7: About This Guide
Please refer to the VDP800/VDP801 User Guide for complete installation and operation instructions. You can download the guide businessphones.vtech.com from For customer service or product information, visit our website at businessphones.vtech.com... - Page 8 Quick Reference Guide Cordless handset external features Message Loudspeaker (MWI) LED Signal Strength Battery charging status HANDSET 1 While in a call: Fuction key line, 18:08 02/11 Volume + context-sensitive LINK MENU While in a menu: Scroll up 2 context-sensitive function keys Settings menu HANDSET 1...
-
Page 9: Handset Installation
For more information about IP PBX configuration, see the VDP800/ VDP801 Administrator and Provisioning Manual, available at businessphones.vtech.com. Handset installation involves both the the handset and the handset charger. The charger is powered using the supplied power adapter. The charger can be placed on a flat surface or mounted on a wall. - Page 10 Installing the charger Install the charger as shown below. Plug the power adapter into an electrical outlet not controlled by a wall switch.
- Page 11 Use only the power adapter supplied with this product (Ten Pao, model number S003AKU0600040). To order a replacement power adapter, visit our website at businessphones.vtech.com or call 1 (888) 370-2006. The power adapter is intended to be correctly oriented in a vertical or floor mount position.
- Page 12 • Use only the supplied rechargeable battery or replacement battery (model BT266342). To order a replacement battery, visit our website at businessphones.vtech.com 1 (888) 370-2006 or call • If you do not use the handset for a long time, disconnect and...
-
Page 13: Adding A Corded Headset
Adding a corded headset You can use this handset hands-free when you install any industry- standard 2.5 mm corded telephone headset (purchased separately). -
Page 14: Handset Registration
Handset Registration Registering the handset to the base station The handset is pre-registered to the base station. If the handset becomes deregistered, perform the registration procedure as follows. To register the handset: 1. Make sure the handset has a charged battery before proceeding. Make sure the base station is connected to power. - Page 15 Deregistering the handset Before using the handset with a different base station, you must deregister the handset from the base station to which it is currently registered. To deregister the handset: 1. Press MENU on the handset. The Main Menu appears. (Settings) and press ENTER.
-
Page 16: Maintenance
Maintenance Taking care of your telephone • Your base station and cordless handset contain sophisticated electronic parts, so you must treat them with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your products if you ever need to ship them. -
Page 17: Technical Specifications
Technical Specifications RF frequency band 1921.536–1928.448 MHz Channels Operating 32–104 °F (0–40 °C) temperature Power requirements Base: 5.0 Vdc @ 800 mA Handset charger: 6.0 Vdc @ 400 mA Handset: 2.4 V, 750 mAh, Ni-MH battery pack Power over Ethernet IEEE 802.3af supported, class 2 Ethernet network port 10/100 Mbps RJ-45 port... - Page 20 VTECH COMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc., Beaverton, Oregon 97008. VTech is a registered trademark of VTech Holdings Limited. ErisTerminal is a registered trademark of VTech Communications Inc. ®...
