(4) Failure mode, as shown in Figure 4-4:
The inverter will disconnect from the power grid and
enter failure mode when photovoltaic power generation
system fails. Check the specific cause through LCD
"Troubleshooting" and eliminate the failure with the
instructions.
Warning
Disconnect the AC circuit breaker at the power grid
side then disconnect the DC circuit breaker at PV side
before opening and doing maintenance of the inverter.
Work on the inverter only after confirming that it has no
more electric charge left.

4.3 Grid connection and power generation

The grid connection and power generation process of
CPS SC100KT grid connection inverter are automatic. It will
check automatically whether AC power grid meets the grid
connection and power generation conditions. At the same
18

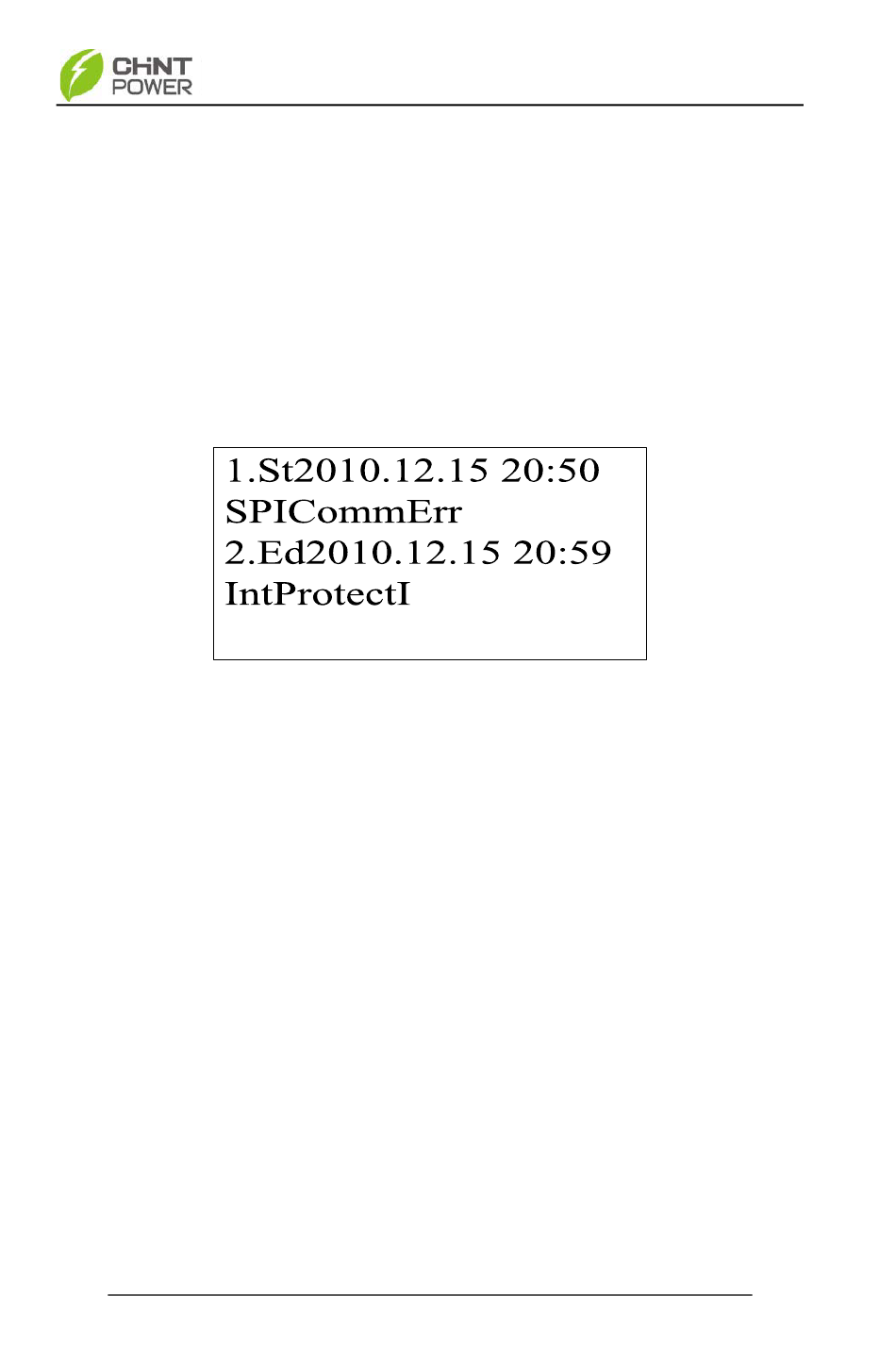

Figure 4-4 Fault indication interface
Chapter 4 Operation
